"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 19

Service Training Meeting Guide
14
SERV1833-01 - 19 - Text Reference
07/08

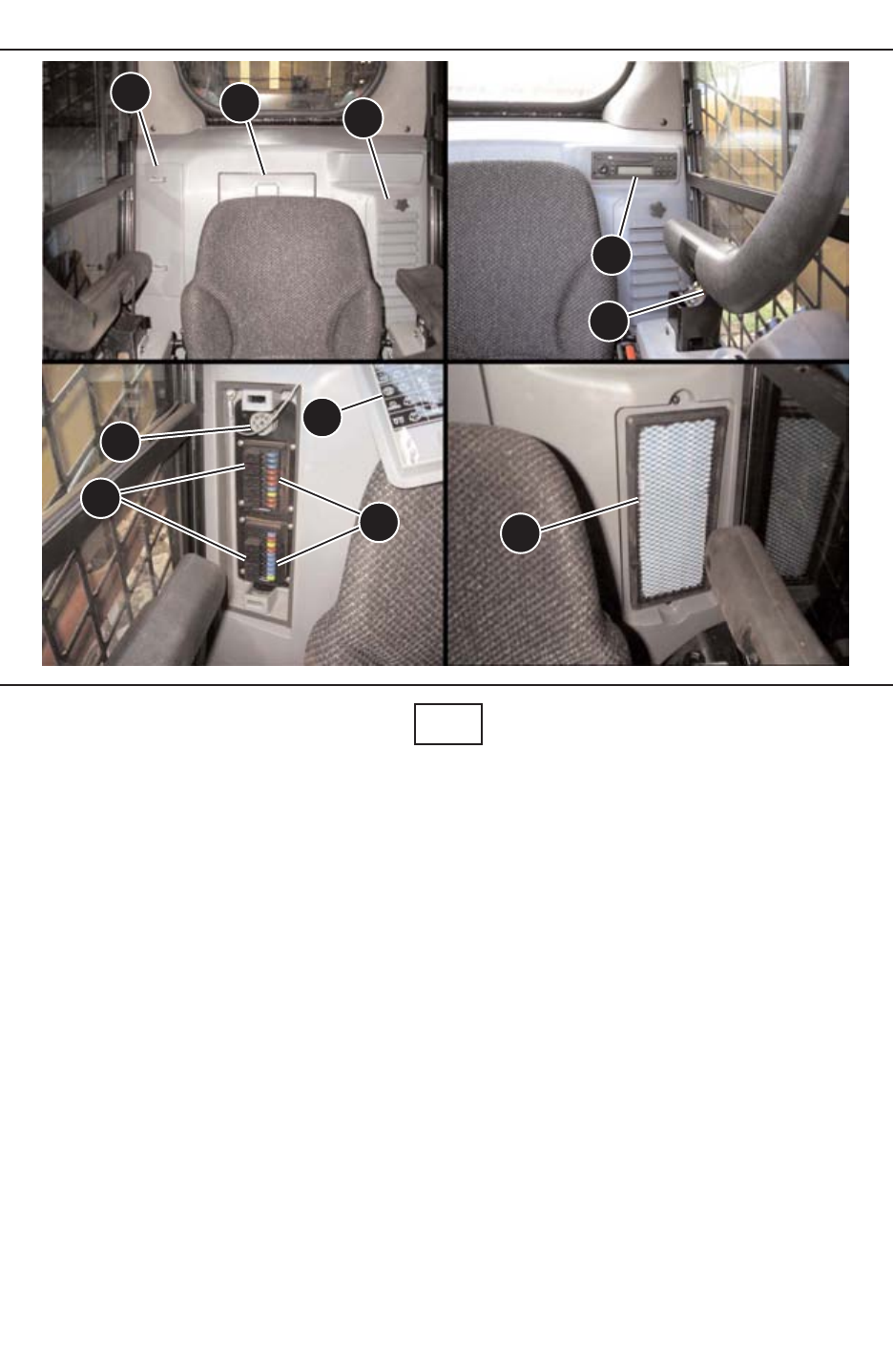

The fuse panel (1), the document compartment (2), the recirculation filter (3), and the radio (4)
are all located at the rear of the cab.
NOTE: All machines are equipped with radio wiring and a radio mounting location.
However, the radio is a dealer installed component.
The armrest switch (5) is located below the left armrest. The armrest must be down to activate
the hydraulic controls.
The fuse panel includes fuses (6) and 10 relays (7). The fuse panel cover (8) includes a decal.
A lanyard is attached to the fuse panel and cover. The Cat ET connector (9) is located above
the fuse panel.
A pleated automotive style cab recirculation filter (10) replaces the foam recirculation filter
used on the "B" Series machines.
