"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 60

Service Training Meeting Guide
54

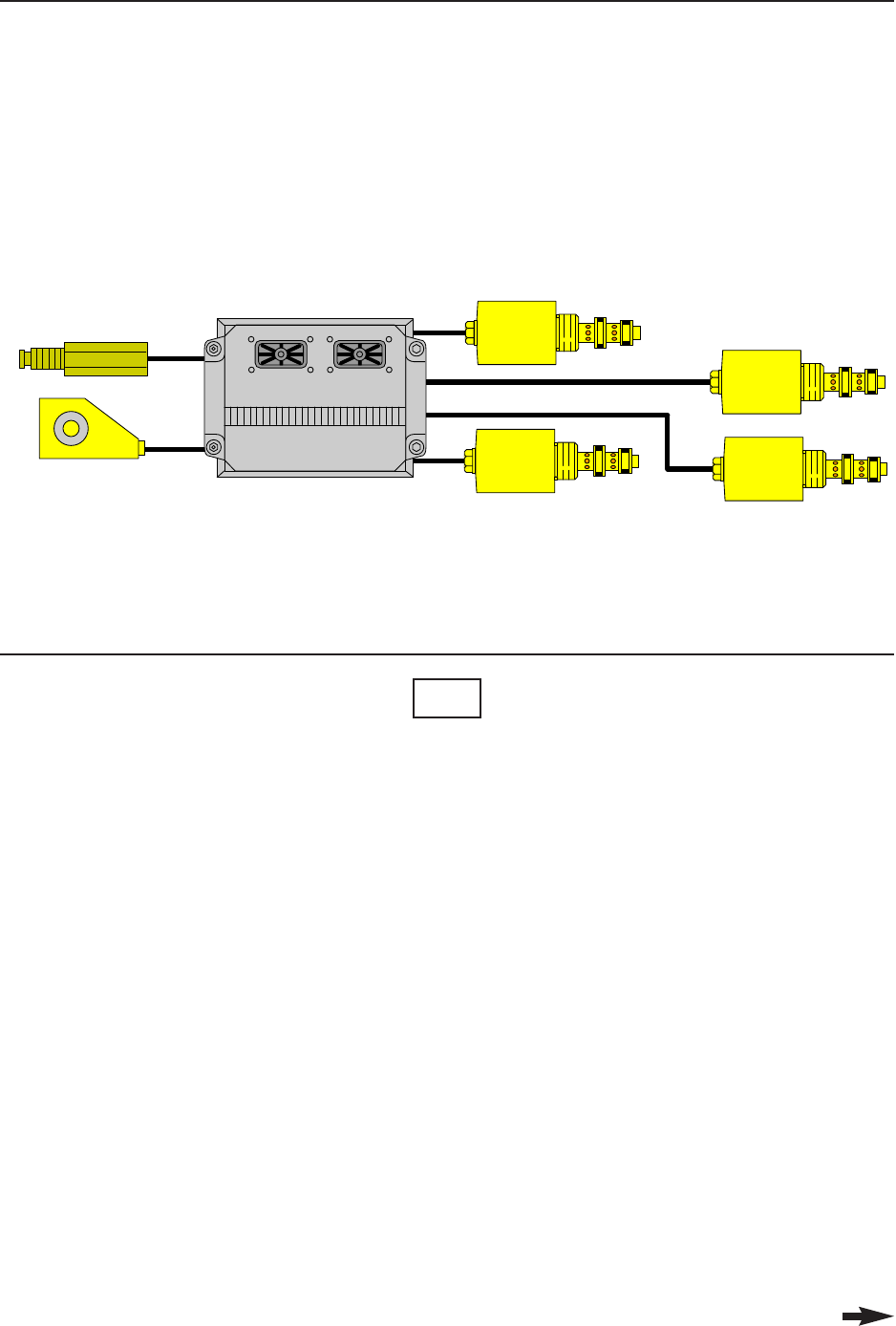

This illustration shows the components used to control the machine underspeed function.
The underspeed function of the Machine ECM senses the increase and decrease in the engine
speed caused by the total load on the machine. The underspeed function distributes the
available engine power between the requirements of the hydrostatic drive system and
implement hydraulic system. When the underspeed function is needed, the Machine ECM will
automatically signal the appropriate pump control solenoids to decrease or increase the
hydrostatic pump displacement.
The Machine ECM uses the engine speed sensor and the throttle lever position sensor to
perform the underspeed function. The Machine ECM determines desired engine speed by
reading the signal from the throttle position sensor. The ECM determines actual engine speed
by reading the signal from the engine speed sensor.
If the engine speed is too low, the Machine ECM decreases the the hydrostatic pump
displacement as necessary to reduce the power demand and keep the engine from stalling.
SERV1833-01 - 60 - Text Reference
07/08
ELECTRONIC CONTROL SYSTEM
ENGINE UNDERSPEED FUNCTION
Throttle Position
Sensor
Machine ECM
Engine Speed
Sensor
Left Reverse
Pump Solenoid
Right Reverse
Pump Solenoid
Left Forward
Pump Solenoid
Right Forward
Pump Solenoid
