"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 41

Service Training Meeting Guide
41
This illustration shows the Machine ECM inputs and outputs. There are several more machine
functions that are controlled by the Machine ECM in the "C" Series machines.
The Machine ECM controls the following hydrostatic drive features:
-two-speed control
-Creeper control
-Joystick steering and speed control
-Neutral interlock
-Underspeed control
-Power management control
-Fault management control
-Uncommanded track movement detection
SERV1833-01 - 41 - Text Reference
07/08
Load Sense Relief Valve Solenoid (XPS)
Auxiliary Valve Solenoid 2
Auxiliary Valve Solenoid 1
Left Hystat Pump Forward Solenoid
Two Speed Solenoid
Pilot ON / OFF Solenoid
Implement Pilot Solenoid
Start Relay
Engine Speed Sensor
Product Link
(If Equipped)
CAN Data Link
CAT Data Link
Hydraulic Oil Temperature Sensor
Armrest Switch
Continuous Flow Switch
Ride Control Switch
Battery
Throttle Level Position Sensor
Air Cleaner Indicator Switch
Engine Oil Pressure Switch
Engine Coolant Temperature Sensor
Fuel Level Sensor
Park Brake Switch
Alternator R Terminal
CAT ET
Left Motor Speed Sensor
High Pressure Tool Detent Switch
Hydraulic Lockout Switch
Left Hystat Pump Reverse Solenoid
Right Hystat Pump Forward Solenoid
Right Hystat Pump Reverse Solenoid
Demand Fan Solenoid
Creeper Control Switch
Tilt Up Implement Solenoid
Tilt Down Implement Solenoid
Lift Implement Solenoid
Lower Implement Solenoid
Cold Start Relay
Stop Lamp Relay
Back-up Alarm Relay
Fuel Pump Relay
Ride Control Self Level Relay
Cold Start Advance Relay
Aux 1 Switch
Door Switch
RH Joystick Trigger Switch
RH Joystick C+ Switch
Right Motor Speed Sensor
Hydraulic Filter Bypass Switch
Pattern Change Switch
Two Speed Switch
Interlock Override Switch

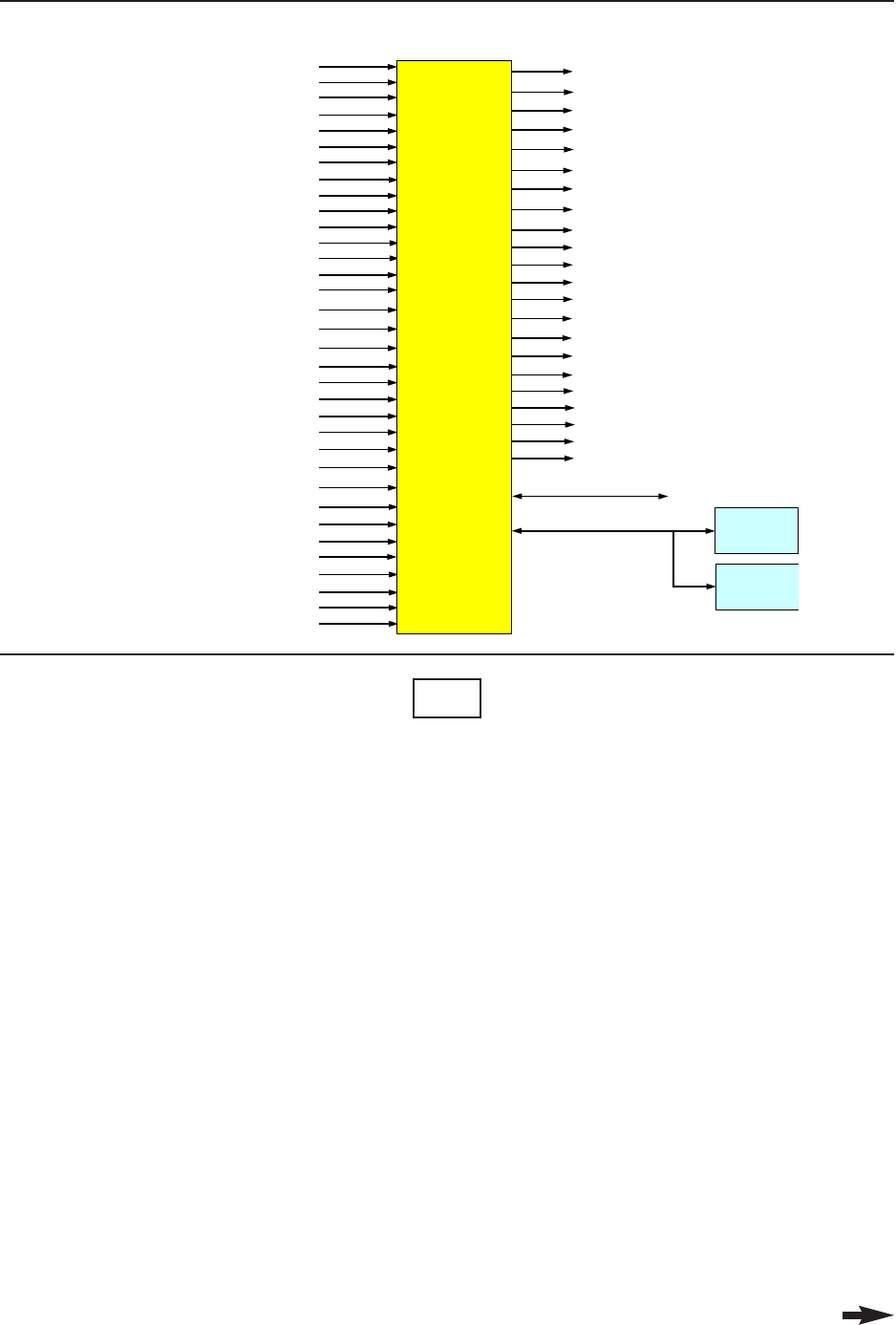

MACHINE ECM INPUTS AND OUTPUTS
Seat Switch
Instrument
Clusters
Machine
ECM
Auxiliary Hydraulic Pressure Release Switch
Aux 1 / Aux 2 RLR or Aux 2 Switch
LH Joystick Fore / Aft Switch
LH Joystick Side / Side Switch
RH Joystick Fore / Aft Switch
RH Joystick Side / Side Switch
Key Start Switch
