"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 47

Service Training Meeting Guide
46
Interlock Strategy

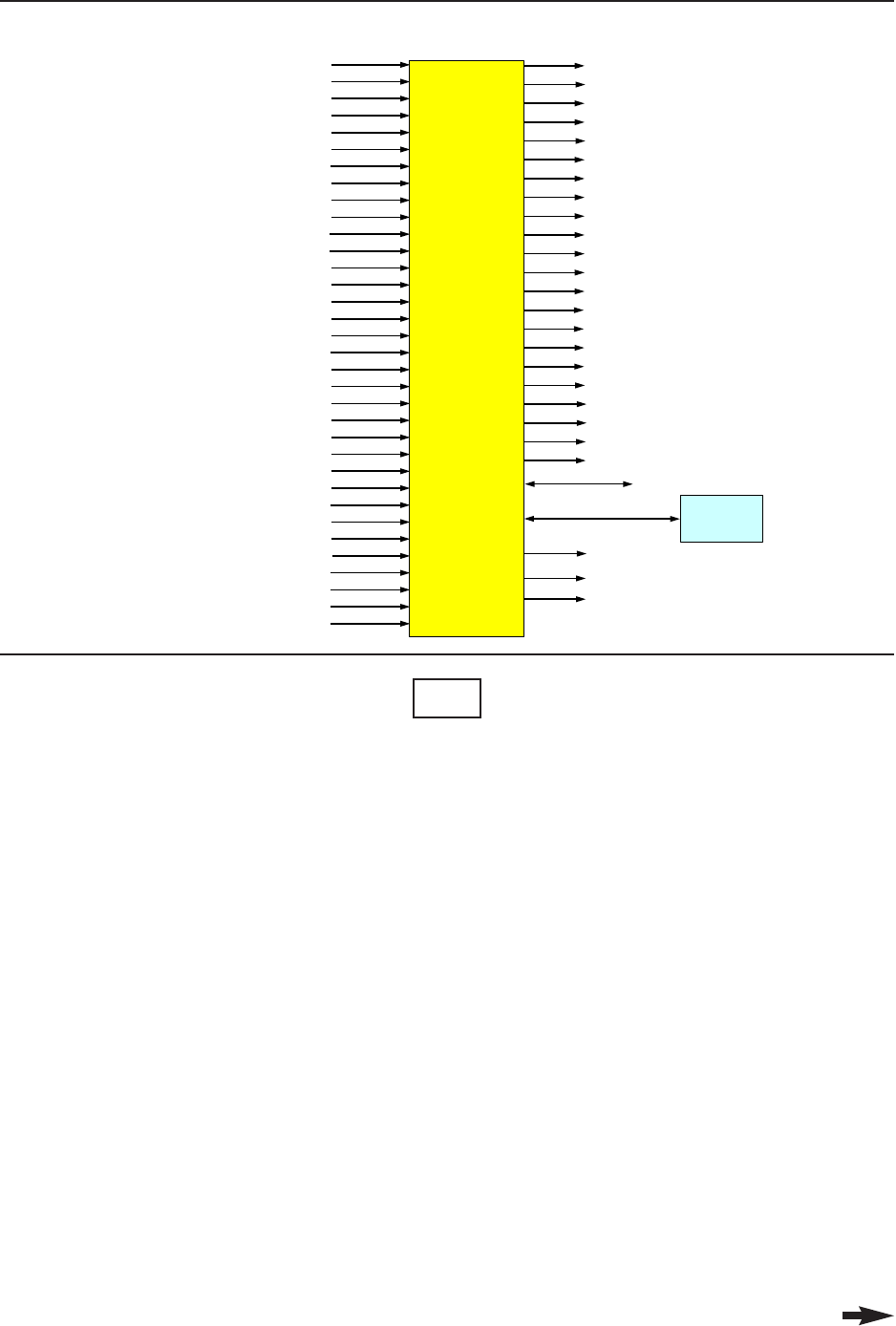

The interlock strategy is similar to the "B" Series machines, but is now controlled by the
Machine ECM. This illustration shows the input and output components (red) used to control
the interlock function.
The Machine ECM prohibits the engine from starting and de-energizes the pilot ON/OFF
solenoid valve and the implement pilot shutoff solenoid valve until certain conditions are met.
The Machine ECM disables the work tool hydraulic system until the operator is seated with the
armrest down, the door closed, the hydraulic lockout switch off, and the park brake released.
The Machine ECM reads the input signals from various switches on the machine. The armrest
switch is a normally open switch located at the hinge point for the left armrest. The armrest
switch closes when the left armrest is lowered. The seat switch is a normally open switch that
is located below the operator's seat. The seat switch closes when the operator is seated in the
seat. The door switch is a normally open switch located on the inside of the door. The door
switch closes when the door is closed.
SERV1833-01 - 47 - Text Reference
07/08
Load Sense Relief Valve Solenoid (XPS)
Auxiliary Valve Solenoid 2
Auxiliary Valve Solenoid 1
Left Hystat Pump Forward Solenoid
Two Speed Solenoid
Pilot ON / OFF Solenoid
Implement Pilot Solenoid
Start Relay
Engine Speed Sensor
Product Link
(If Equipped)
CAN Data Link
CAT Data Link
Hydraulic Oil Temperature Sensor
Armrest Switch
Continuous Flow Switch
Ride Control Switch
Auxiliary Hydraulic Pressure Release Switch
Battery
Throttle Level Position Sensor
Air Cleaner Indicator Switch
Engine Oil Pressure Switch
Engine Coolant Temperature Sensor
Fuel Level Sensor
Park Brake Switch
CAT ET
Left Motor Speed Sensor
High Pressure Tool Detent Switch
Hydraulic Lockout Switch
Left Hystat Pump Reverse Solenoid
Right Hystat Pump Forward Solenoid
Right Hystat Pump Reverse Solenoid
Demand Fan Solenoid
Creeper Control Switch
Tilt Up Implement Solenoid
Tilt Down Implement Solenoid
Lift Implement Solenoid
Lower Implement Solenoid
Cold Start Relay
Stop Lamp Relay
Back-up Alarm Relay
Fuel Pump Relay
Ride Control Self Level Relay
Cold Start Advance Relay
Aux 1 Switch
Door Switch
RH Joystick Trigger Switch
RH Joystick C+ Switch
Right Motor Speed Sensor
Hydraulic Filter Bypass Switch
RH Joystick Side / Side Switch
Two Speed Switch
Interlock Override Switch
MACHINE ECM INPUTS AND OUTPUTS
Seat Switch
Hydraulic Lockout Lamp
Park Brake Lamp
Armrest / Seat Lamp
Machine
ECM
Key Start Switch
Aux 1 / Aux 2 RLR or Aux 2 Switch
Alternator R Terminal
LH Joystick Fore / Aft Switch
LH Joystick Side / Side Switch
RH Joystick Fore / Aft Switch
Pattern Change Switch
