"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 82

Service Training Meeting Guide
78
Compact Track Loader Update

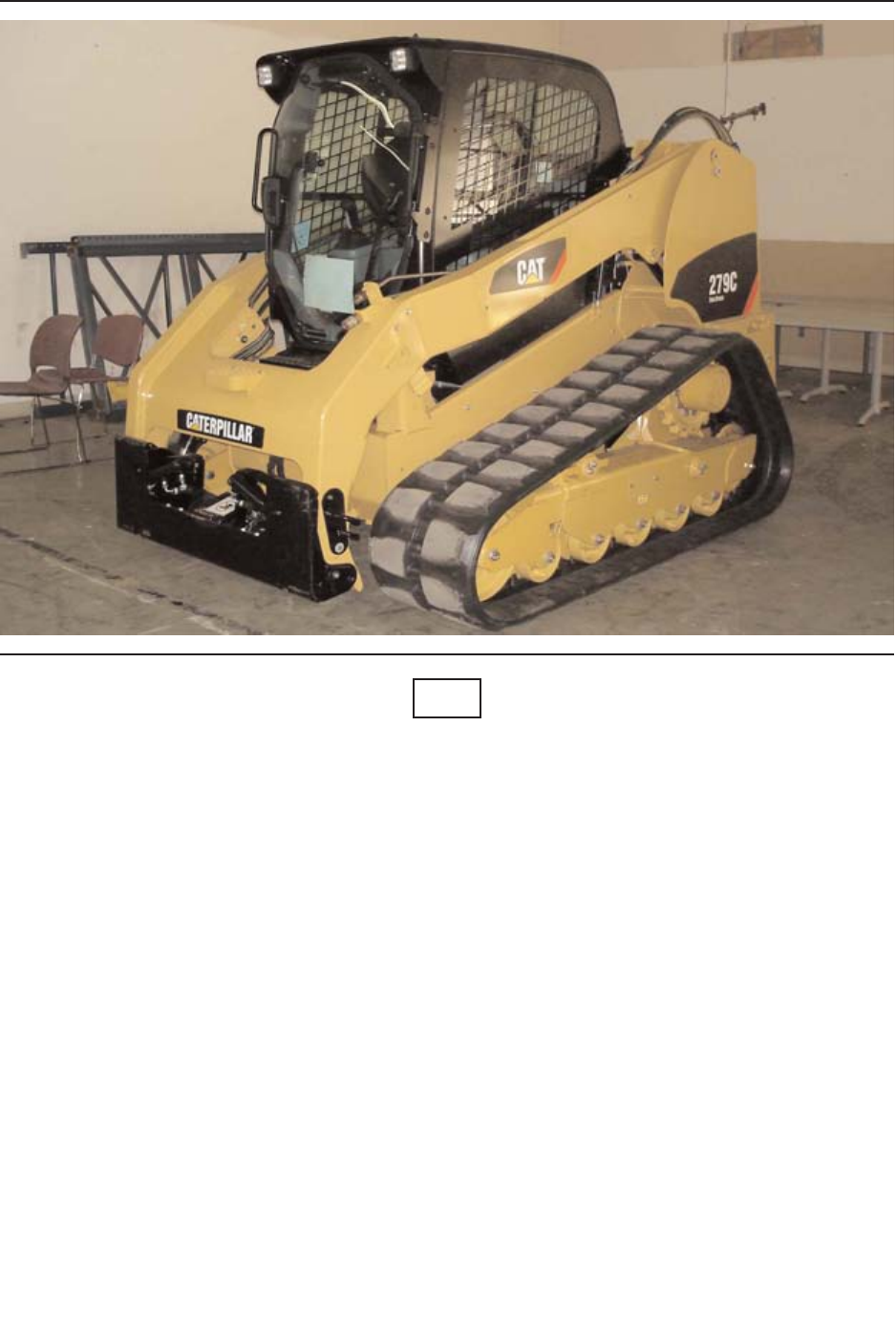

The CTL range consists of three machines, the the 279C, 289C and the 299C. These machines
are built on the current MTL chassis and Tier 3 engine configurations, but are equipped with a
CAT designed and manufactured suspended CTL style undercarriage. This undercarriage
design utilizes a steel embedded MHE style track, a large external drive sprocket, a grease
tensioner with Spring recoil system and all steel sprockets, rollers and idlers.
The undercarriage is mounted to the chassis by four fully indpendant torsional axles. The
machine is two speed as standard, with a max runout speed of 8.5 mph.
The drive motors are of a similar design to that of the MTL drive motors, both are axial piston
drive motors, with planetary outboard final drives, for information on the operation of the two
speed system, please refer to page 59 for more detailed information.
SERV1833-01 - 82 - Text Reference
