"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 34

Service Training Meeting Guide
34
SERV1833-01 - 34 - Text Reference
07/08
ENGINE
The 3044C engine is similar to the "B" Series machines. The engine ratings have been
increased and an ATAAC has been added to the 272C and 297C machines to increase power.

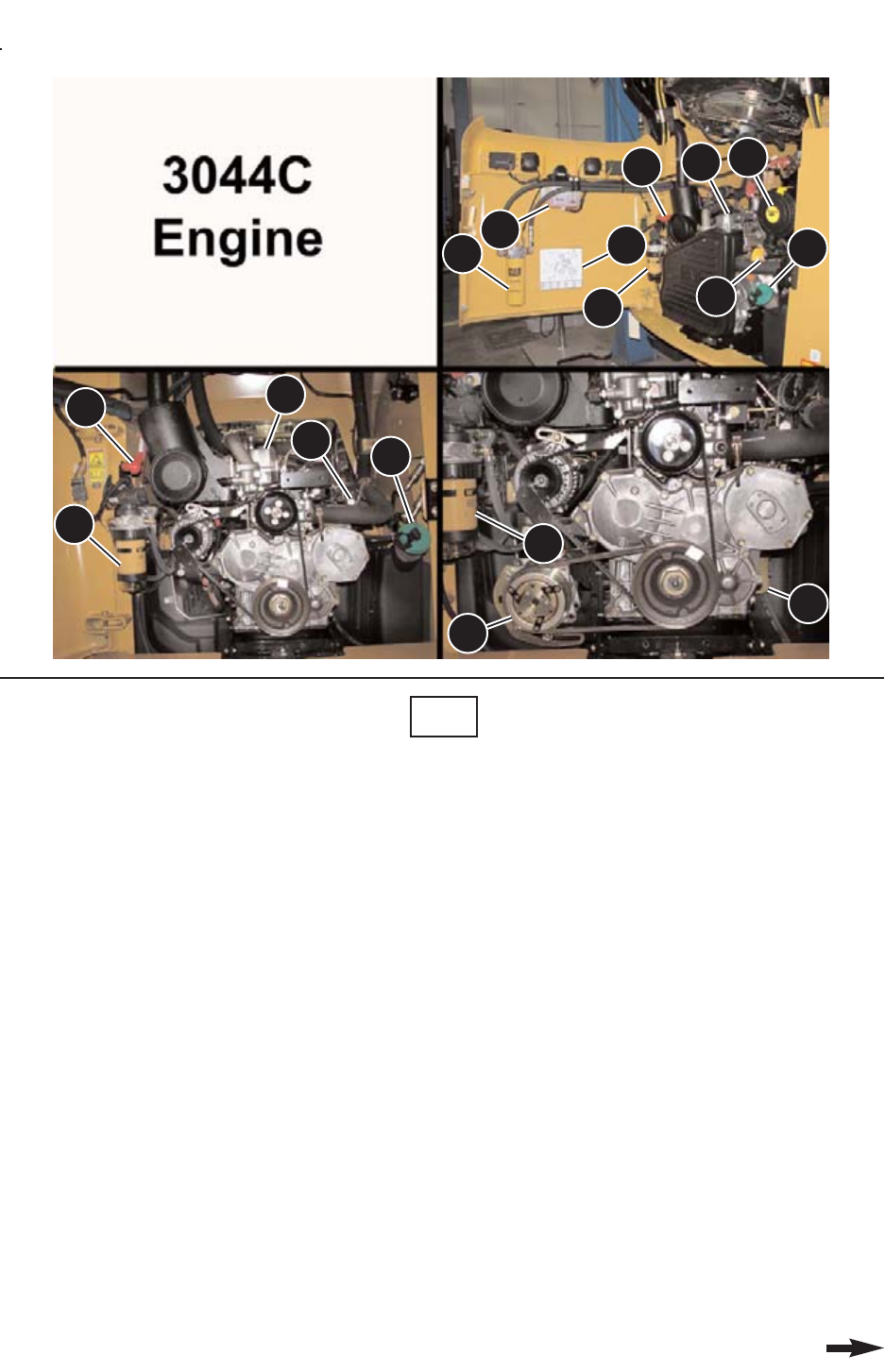

The bottom views show the front of the engine with the engine cover removed. The following
components have new locations in the engine compartment:
- Hydraulic oil filter (1)
- Maintenance and lubrication points decal (2)
- Engine coolant reservoir (3)
- Fuel filter and priming pump (4)
- Jump start receptacle (5)
- Oil filler cap - (relocated from the front timing cover to the valve cover, (6)
- Air cleaner decal (7): A decal has been added to the air filter housing to ensure proper
installation. The dust ejector must also be checked daily to ensure it is not plugged.
5
4
9
8
10
11
4
1
3
2
5
4
6
6
7
8
9
