"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 56

Service Training Meeting Guide
52

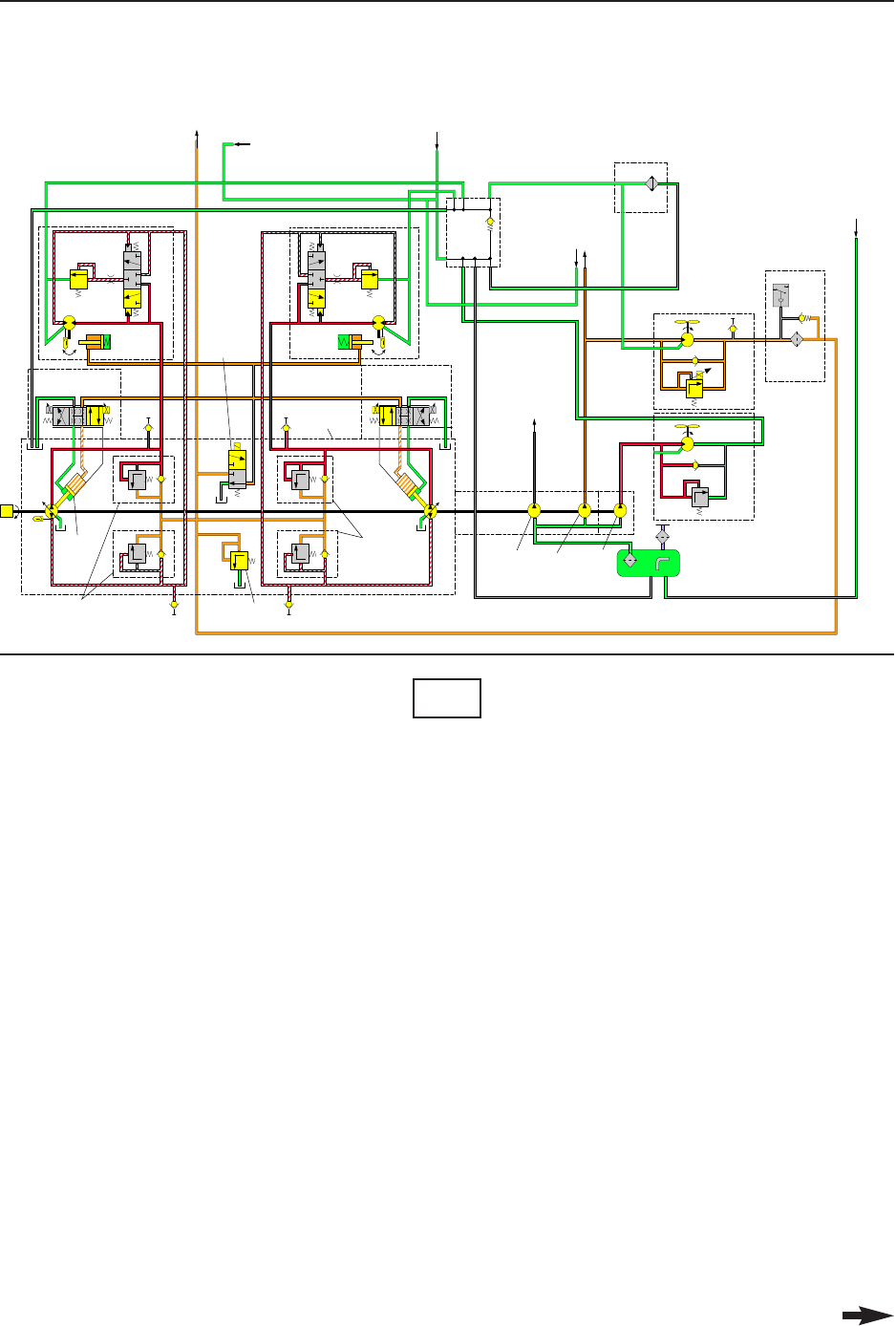

This illustration shows the conditions that are present when the speed and direction lever is
moved to the FORWARD position.
As the speed and direction lever is moved forward, a signal is sent to the Machine ECM. The
ECM sends corresponding signals to the right and left pump forward solenoids. The pump
solenoid valves direct signal pressure to the actuator pistons.
The Machine ECM receives feedback signals from the travel motor speeds sensors. The ECM
processes the speed signals and sends the appropriate signals to the right and left pump forward
solenoids to precisely control machine ground speed.
For FORWARD, the oil flows to the end of both actuator pistons. The magnitude of the
Machine ECM signal to the right and left pump forward solenoids determines the signal
pressure oil at the actuator piston and how far the actuator pistons move.
SERV1833-01 - 56 - Text Reference
07/08
Cooler
M
Return
Manifold
To Pilot Shutoff
Solenoid
Travel Motor
Travel Motor
Hydrostatic
Drive Pump
Work Tool
Pump
Charge
Pump
ATAAC
Pump
ATAAC
Fan Motor
Demand Fan Motor
Hydraulic System
Filter
From Pilot Shutoff
Solenoid
From Manual
Lowering Valve
To Work Tool
Valve Group
From Work Tool
Valve Group
To / From
Work Tool
Coupler Valve
Crossover
Relief Valves
Charge
Relief Valve
Park
Brake
Park
Brake
Flushing
Valve
Flushing
Valve
Right Pump
Solenoid Valve
Left Pump
Solenoid Valve
Actuator
Piston
Actuator
Piston
Crossover
Relief Valves
HYDROSTATIC DRIVE SYSTEM
FORWARD
FWD
Pilot On/Off
Solenoid
