"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 84

Service Training Meeting Guide
80
Tier 3 UPDATE

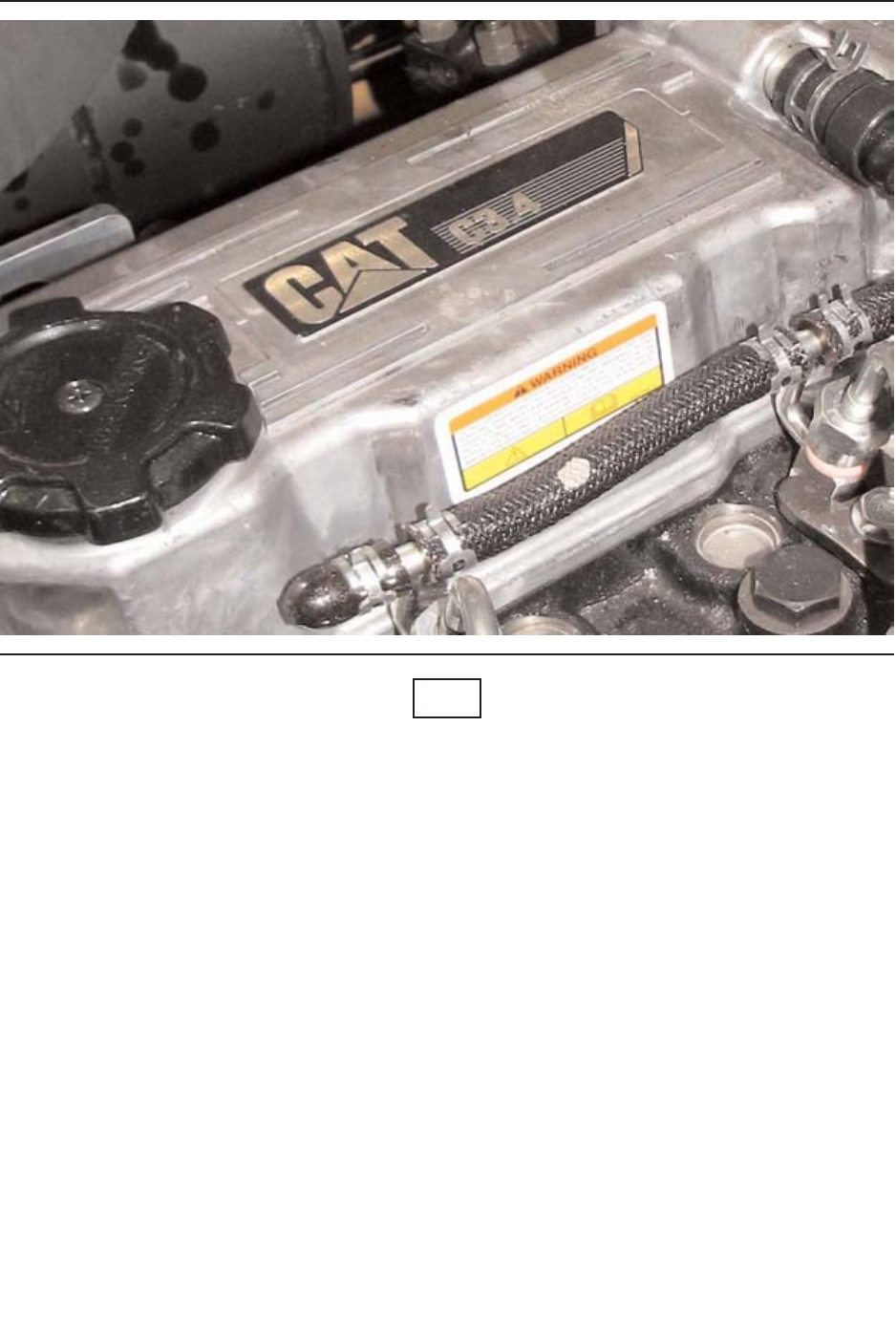

From February 2008, the 3044C DIT Tier 2 engine was replaced by the C3.4 Turbochaged Tier
3 engine, with the horsepower ratings for each machine remaining the same as Tier 2.
The C3.4 Tier 3 engine has been redesigned to include the following features:
..Denso Fuel Injection Pump has been replaced by a Bosch unit.
..Sound suppression material fitted as standard.
..Open Circuit Breather system.
The 69kW 272C, 297C and 299C machines have a Boost Control Device (BCD) fitted to
the Bosch Fuel Pump, this device limits the free acceleration smoke by limiting the boost
pressure, instead of the boost going to maxium, the BCD ramps up the pressure, thus
reducing the amount of free acceleration smoke created.
SERV1833-01 - 84 - Text Reference
07/08
