"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 28

Service Training Meeting Guide

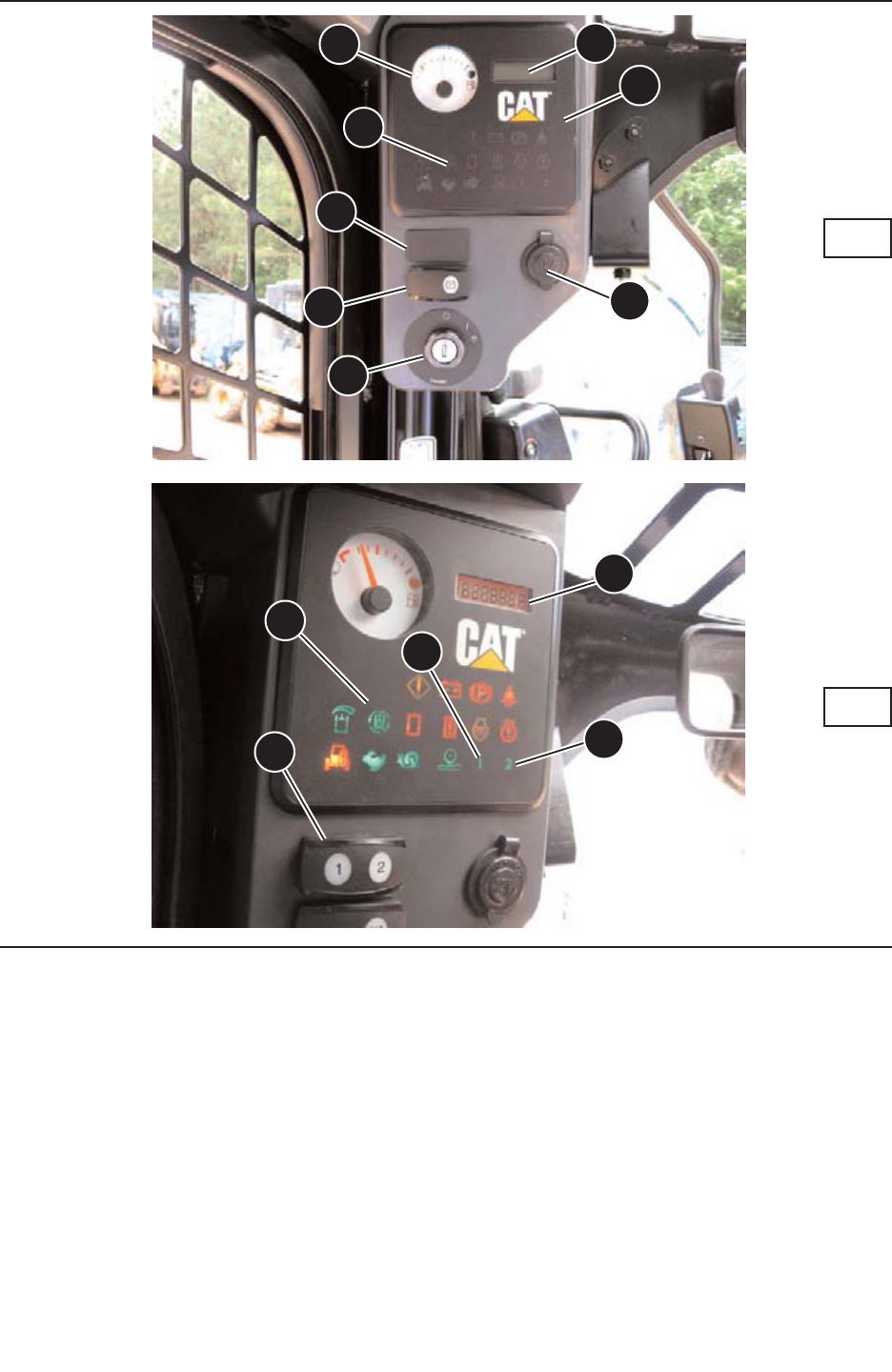

The left overhead display includes the key start switch (1), the 12-volt receptacle (2), the
parking brake switch (3), and the joystick control pattern switch (4, if equipped). If the pattern
switch is installed, either the standard pattern 1, or the optional pattern 2, must be selected to
release the parking brake. Indicator Lamps (5) and (6) will blink until a selection is made. The
parking brake will not be able to be released until a selection is made. Once a pattern is
selected, the appropriate lamp will stay illuminated.
A digital display panel (7) includes the warning indicators (8), the fuel level gauge (9), and the
service hour meter (10).
The bottom illustration shows the warning indicators illuminated. There are three warning
levels. With a Level 1 warning, the alert indicator is ON continuously. With a Level 2
warning, the alert indicator flashes. With a Level 3 warning, the alert indicator flashes and a
warning alarm sounds.
25
26
SERV1833-01 - 28 - Text Reference
07/08
4
3
2
1
7
8
5
6
10
10
9
8
4
