"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 58

Service Training Meeting Guide
53

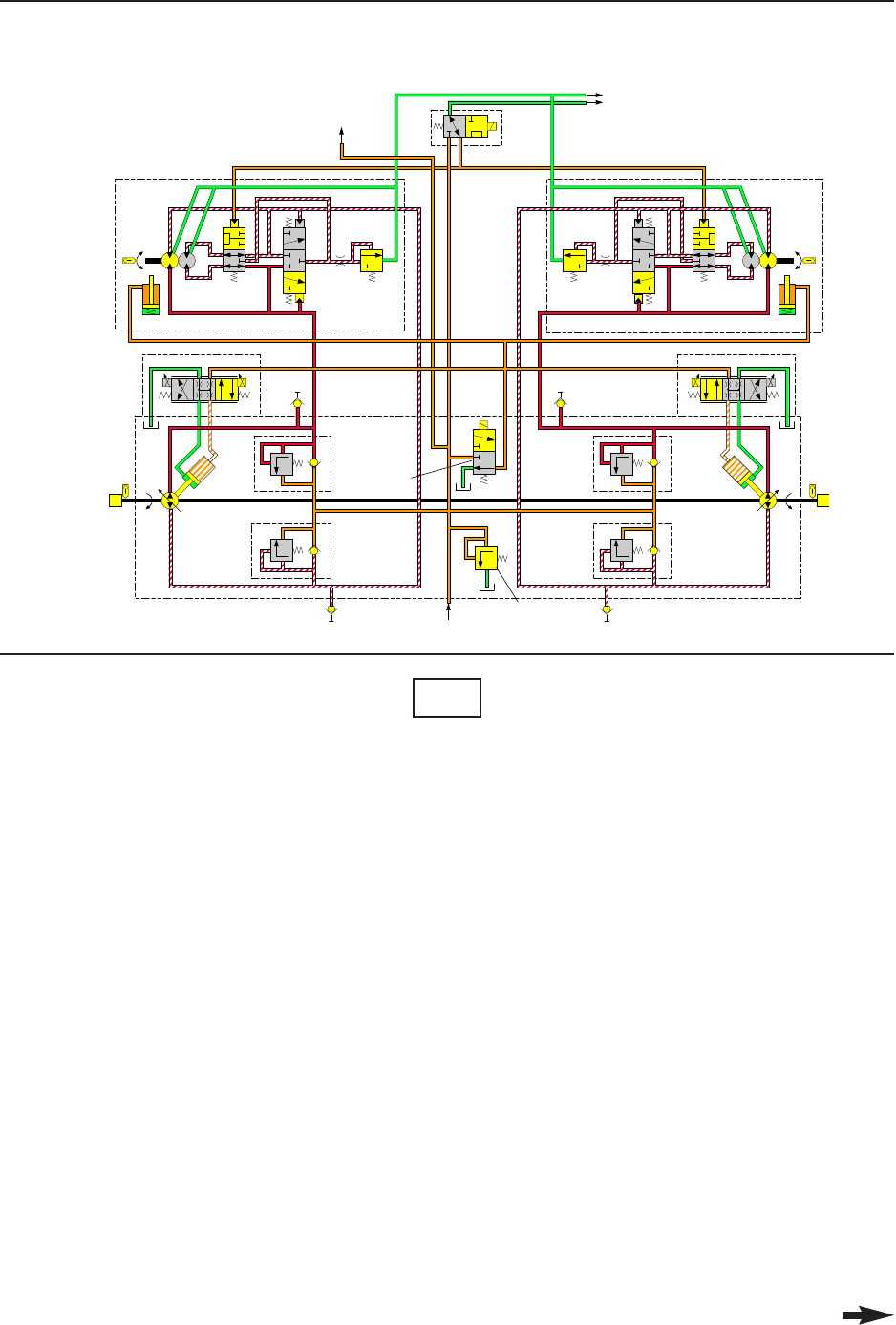

This illustration shows the "C" Series SSL machines hydrostatic drive pump and motors with
the two-speed option in the Forward/Rabbit Mode position.
The two-speed solenoid valve is used to direct charge oil to shift the two-speed selector spool,
which controls oil flow from the hydrostatic pump to half of the travel motor pistons.
NOTE: The schematic shows two motor symbols in each motor. Each motor symbol
represents half of the pistons in the motor.
The travel motor is a radial-piston type motor. Two sets of passages direct flow to and from the
hydrostatic pump to the motor pistons. On the "C" Series Skid Steer Loaders half of the oil
flow passages are blocked.
In Turtle Mode, pump operation is identical to the standard hydrostatic drive system and the
two-speed travel motor operates the same as the standard travel motor. The two-speed solenoid
is de-energized and oil flows past the two-speed selector spool.
SERV1833-01 - 58 - Text Reference
07/08
M
M
Travel Motor
To Pilot
Shutoff Solenoid
Two-speed Valve
To Drain Manifold
Travel Motor
Right Pump
Solenoid Valve
Hydrostatic Drive PumpCharge Pressure
Relief Valve
From Charge Pump
Left Pump
Solenoid Valve
Crossover
Relief Valve
Park Brake
Flushing
Valve
Actuator
Piston
Park Brake
Two-speed
Selector Spool
Two-speed
Selector Spool
Flushing
Valve
Actuator
Piston
Crossover
Relief Valve
Crossover
Relief Valve
Crossover
Relief Valve
Pilot On/Off
Solenoid
TWO-SPEED SSL HYDROSTATIC DRIVE SYSTEM
RABBIT MODE / FORWARD
