"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 71

Service Training Meeting Guide
68
SERV1833-01 - 71 - Text Reference
07/08

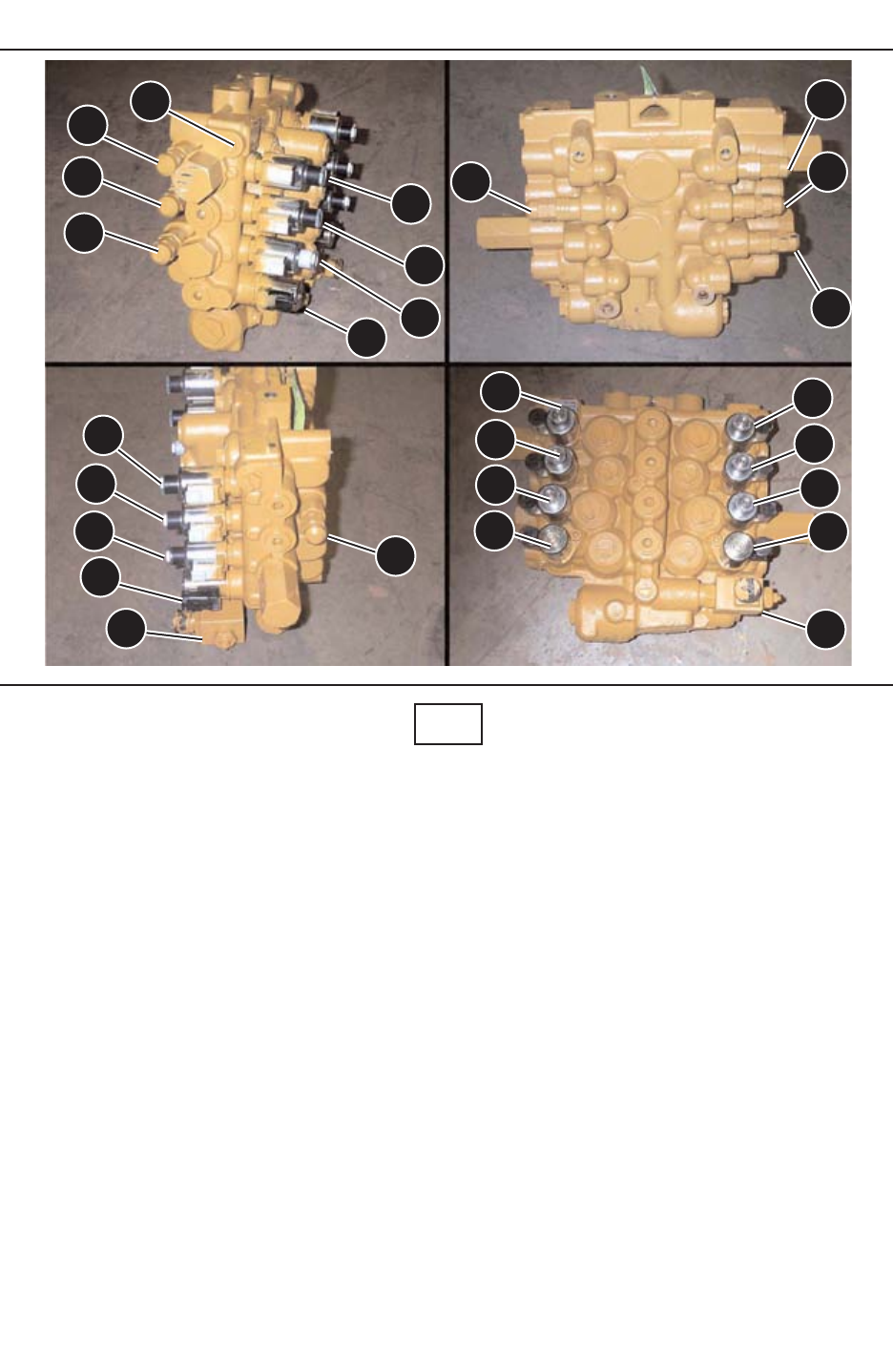

These illustrations show the work tool control valve on a High Flow machine in different
positions. The top left illustration shows the work tool control valve in the same position as it
would be installed above the right frame rail in the machine.
The components visible are:
- Auxiliary line relief valve (1)
- Tilt head end line relief valve (2)
- Lift line relief valve (3)
- Auxiliary supply solenoid valve (4)
- Tilt forward solenoid valve (5)
- Raise solenoid valve (6)
- C+ solenoid valve (7)
- Auxiliary return solenoid valve (8)
- Tilt back solenoid valve (9)
- Lower solenoid valve (10)
- C- solenoid valve (11)
- Pilot pressure port (12)
- Tilt rod end line relief valve (13)
- Load sense relief valve (14)
