"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 80

Service Training Meeting Guide
77

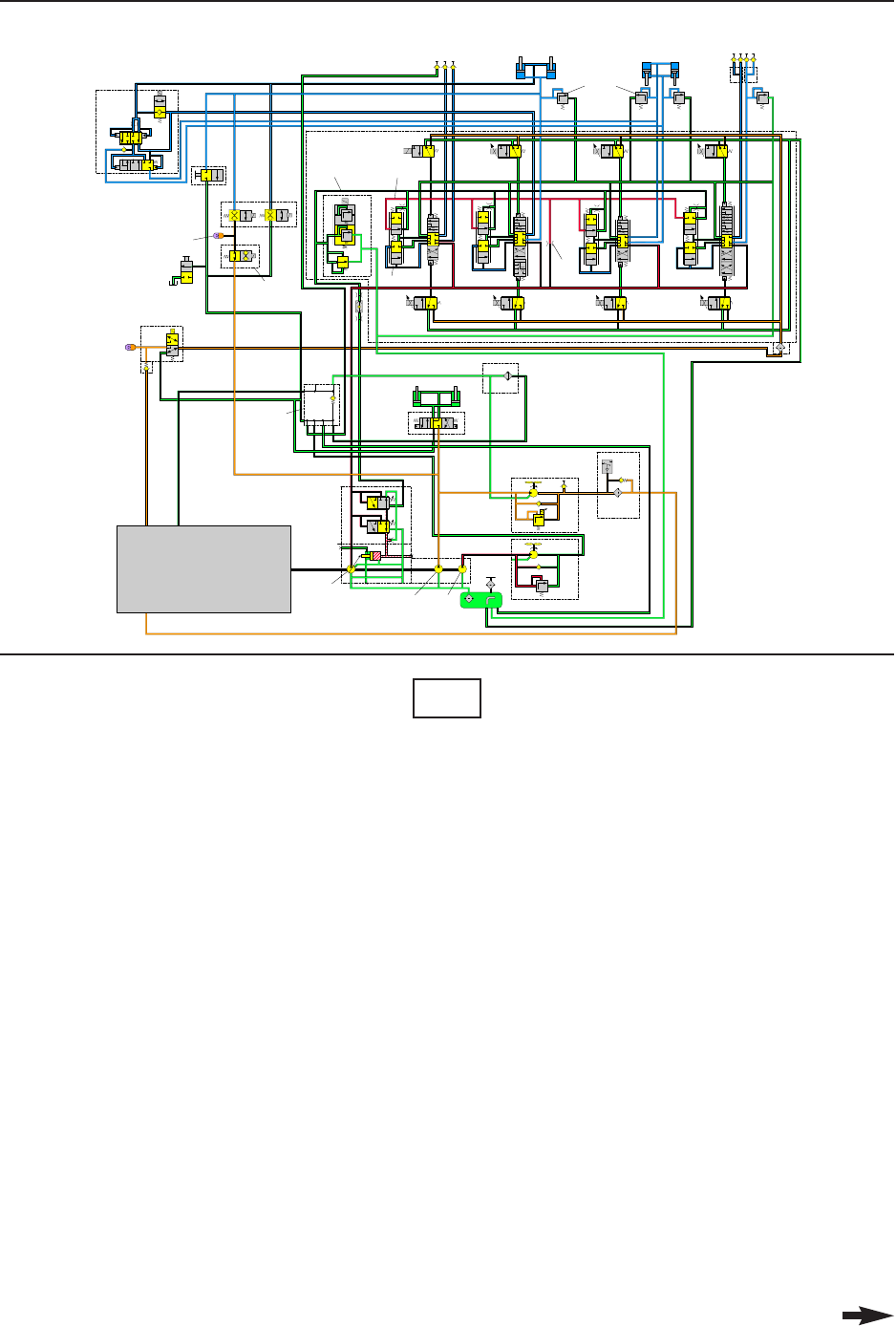

This illustration shows the optional High Flow XPS Hydraulic System.
The High Flow XPS system features a load sensing, pressure compensated, variable
displacement piston pump and closed-center control valves used in a Proportional Priority
Pressure Compensated (PPPC) hydraulic system. The PPPC hydraulic system divides the oil
flow between each operating circuit in the system. The amount of oil directed to a particular
circuit is proportional to the position of the compensator control spool.
Because the valves are pressure compensated, cylinder speeds will not change as the load varies
as long as the pump can meet system flow needs. When the flow demands of the system
exceed the total flow available from the pump, the flow is divided proportionally between all
activated circuits; however, the work tools will all move slower due to the reduced amount of
flow available.
The "A1" solenoid and "A2" solenoid provide pilot oil to shift the control spool for the
auxiliary functions. These solenoids are proportionally controlled by the Machine ECM.
SERV1833-01 - 80 - Text Reference
07/08
Lift
Cylinders
C+ Solenoid
Valve
C-
Solenoid
Valve
Load Sensing
Signal Rail
Aux Pump
Rail
Flow
Control
Orifice
Lift
Tilt
Aux.
Line Relief
Valves
Auxiliary
Solenoid
Valve A1
Auxiliary
Solenoid
Valve A2
Hydrostatic Drive Pump Group
Rack Back
Solenoid
Valve
Lower
Solenoid
Valve
Raise
Solenoid
Valve
Dump
Solenoid
Valve
Auxiliary
Tools
Coupler
Cylinders
Coupler
Valve
Work
Tool
Work
Tool
Work Tool
Pump
Charge
Pump
ATAAC
Pump
Cooler
ATAAC Fan Motor
Demand Fan Motor
Hydraulic System
Filter
Return
Manifold
Pilot Shut off
Solenoid
Divert er V alve
Compensator
Tilt
Cylinders
OPTIONAL HIGH FLOW XPS HYDRAULIC SYSTEM
HOLD
Ride Control
Accumulator
Ride
Control
Valve
Accumulator
Precharge
Valve
