"C" SERIES SKID STEER LOADERS Service Training Meeting Guide Page 31

Service Training Meeting Guide
SERV1833-01 - 31 - Text Reference
07/08
31

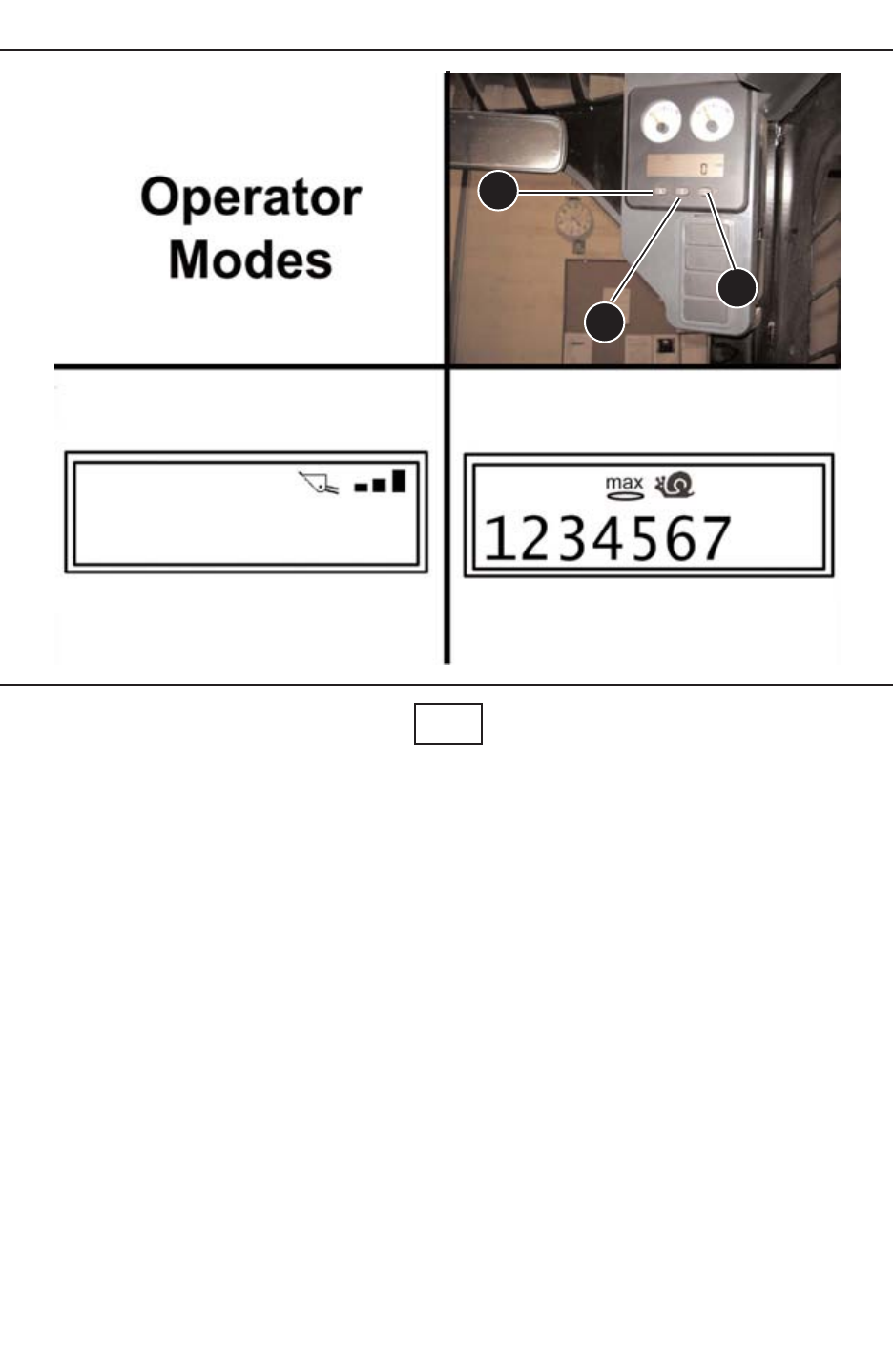

The optional Advanced Machine Information and Control System (AMICS) display panel will
show various machine information in three Operator Modes and eight Service Modes. The
function selector key (1) is used to toggle between available modes. The scroll up key (2) and
scroll down key (3) are used to toggle between screens or settings within a mode.
The three Operator Modes are:
- Mode 1 (Display Screen): displays basic machine information including engine speed
(default start-up mode shown in the top right illustration), system voltage, and job clock.
- Mode 2 (Implement Control): displays the current lift and tilt function response setting
(bottom left illustration). The three implement response settings are Fine Control,
Medium Control, and Coarse Control. Fine control is one bar, medium control is two
bars, and coarse control is three bars. The default setting is medium. Fine control
provides a more precise implement response.
- Mode 3 (Creeper Control): displays the current creeper control setting (bottom right
illustration). There are 10 creeper settings, which allow the maximum machine travel
speed to be set between 5% and 100% of full speed.
