Caterpillar 320C Excavator Supplement for 3066 Engine Page 110

Supplement
110
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

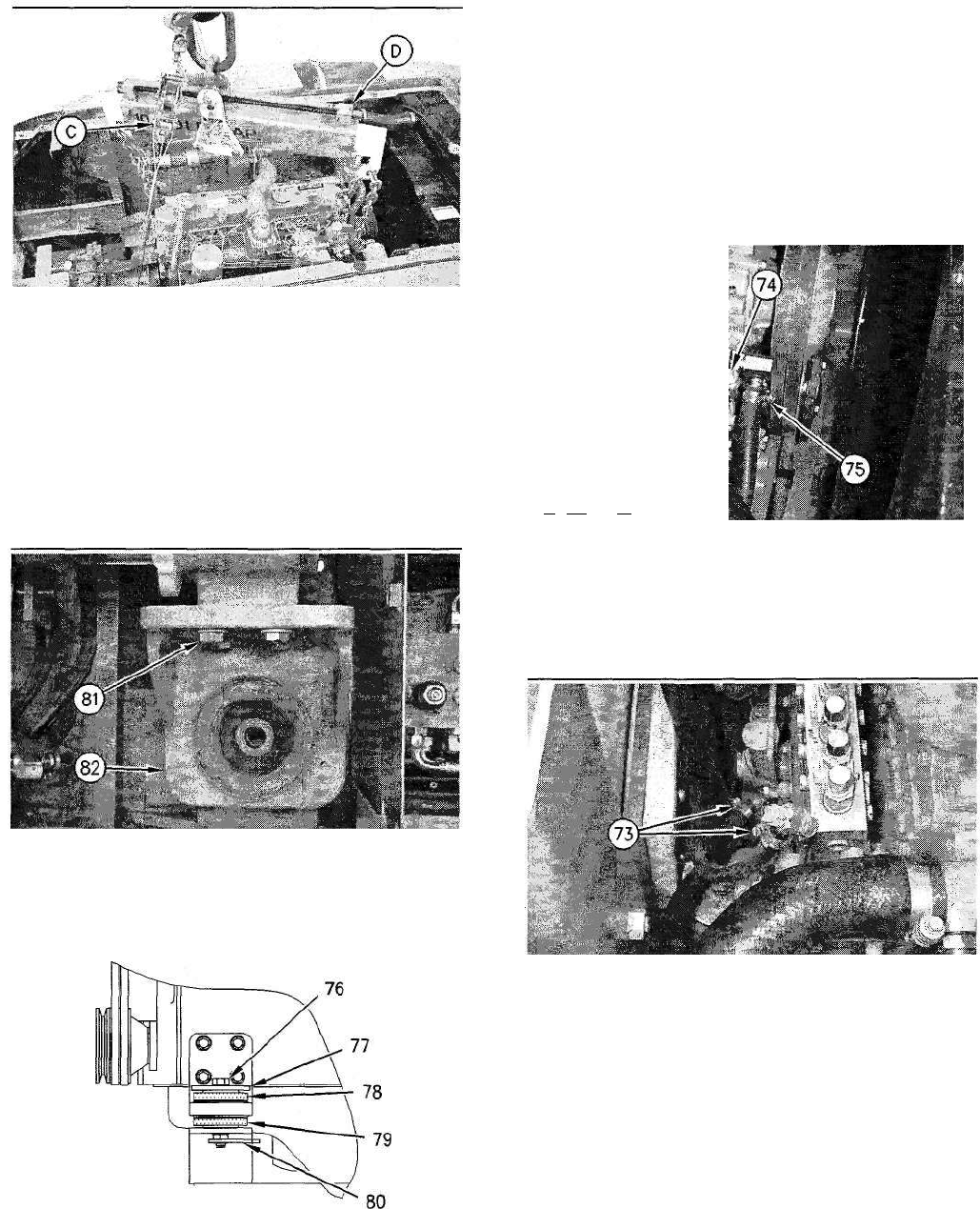

Illustration 431
1. Fasten Tooling (B) and a hoist to the engine
and the main hydraulic pump. Fasten Tooling
(C) to the main hydraulic pump and the hoist, as
shown. Use Tooling (C) in order to balance the
engine and the main hydraulic pump.
2. Position the engine and the main hydraulic pump
in the machine. The weight of the engine and the
main hydraulic pump is 635 kg (1400 lb).
Illustration 432
3. Install two rear engine mounts (82). Install the
washers and bolts (81).
4. Make sure that rubber mounts (79) are in the
correct position in the frame.
5. Lower the engine onto the frame.
6. Install rubber mounts (78) and washer (77) on
the engine mounts.
7. Install the washers and bolts (76). Install nut
assemblies (80). Tighten the bolts to a torque of
530 ± 70 N.m (390.9 ± 51.6 lb ft).
<III.II>.... '» > y •»_ ^LlsJ
Illustration 434
g00722018
8. Connect the heater line. Tighten hose clamp (75).
9. Connect the lower radiator hose. Tighten hose
clamp (74).
_
1
MaEM ' wHMf.0*
;
L
Illustration 435
Note: Make sure that the fuel lines are connected to
the correct location.
10. Connect the fuel lines to the fuel injection pump.
Tighten hose clamps (73).
Illustration 433
