Caterpillar 320C Excavator Supplement for 3066 Engine Page 56

Supplement
56
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

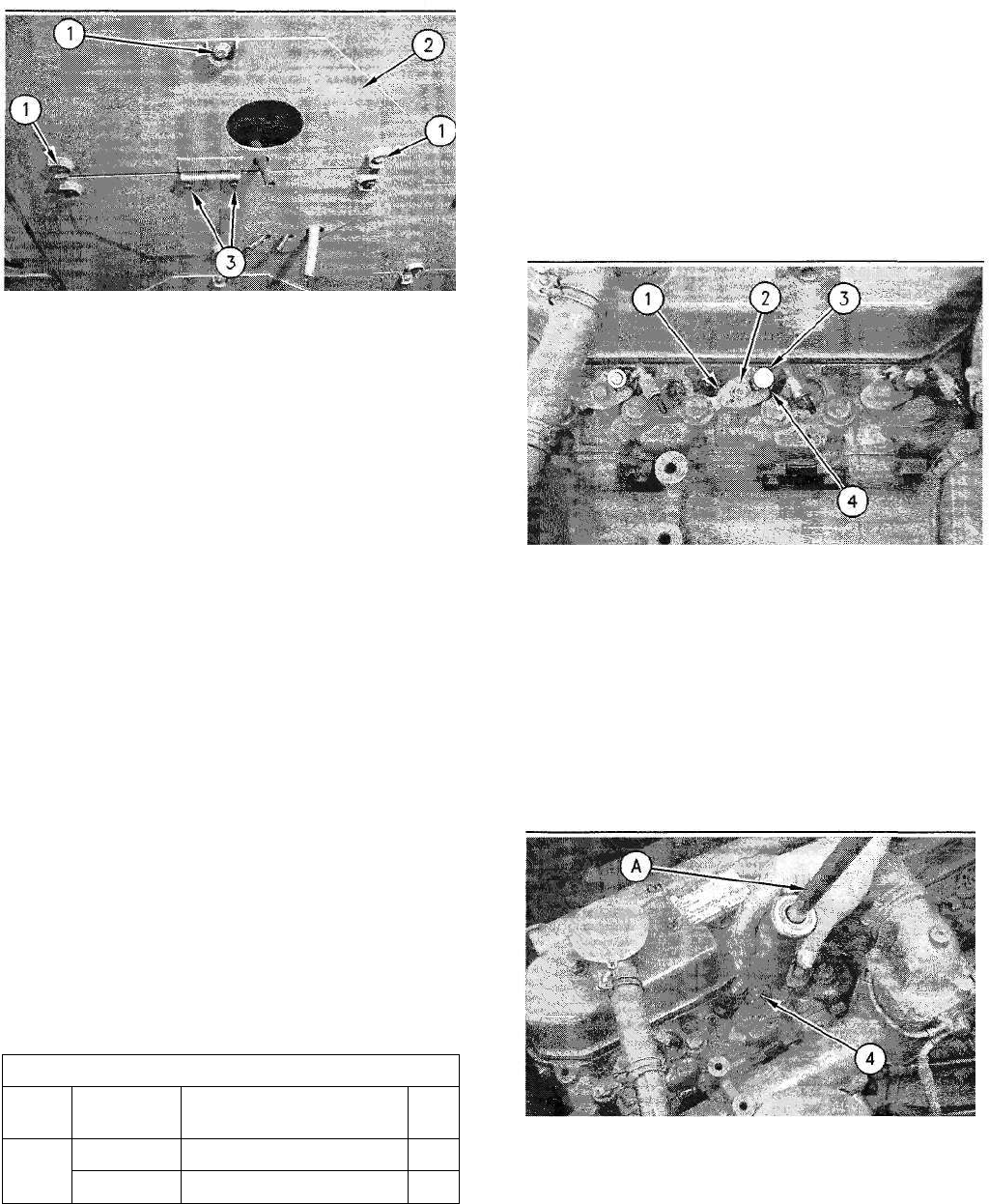

Illustration 229
18. Install access panel (2). Install the washers and
bolts (1).
19. Install the washers and bolts (3) in the hinge.
20. Install the top fan guard.
End By:
a. Install the fuel filter and the fuel filter base.
Refer to Disassembly and Assembly, "Fuel Filter
(Primary) and Fuel Filter Base - Remove and
Install".
b. Install the fuel injection lines. Refer to
Disassembly and Assembly, "Fuel Injection Lines
- Remove and Install".
c. Install the dipstick. Refer to Disassembly and
Assembly, "Engine Oil Level Gauge (Dipstick)
- Remove and Install".
Fuel Injection Nozzles -
Remove
SMCSCode: 1254-011
Removal Procedure
Table 4
Required Tools
Tool
(A)
Part
Number
1U-7600
9U-6278
Part Description
Slide Hammer Puller
Adapter
Qty
1
1
Start By:
a. Remove the fuel injection lines. Refer to
Disassembly and Assembly, "Fuel Injection Lines
- Remove and Install".
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
Illustration 230
1. Remove bolt (2) and the washer that secures
clamp (1) to the cylinder head assembly.
2. Remove clamp (1) that secures fuel injection
nozzle (4) in position in the cylinder head
assembly.
Note: Mark the clamp for later installation.
3. Remove cap (3).
Illustration 231
4. Install Tooling (A) to fuel injection nozzle (4).
Note: Tooling (A) is installed at the connection for
the fuel injection lines.
