Caterpillar 320C Excavator Supplement for 3066 Engine Page 8

Supplement
8
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
Electric Starting Motor -
Remove and Install
io-1341994 2. Remove nut (2) and the washer. Disconnect
battery cables (3).
SMCS Code: 1453-010
Removal Procedure
Start By:
a. Deactivate the electrical system. Refer to
Operation and Maintenance Manual, "Battery
Disconnect Switch" in order to deactivate the
electrical system.
b. Remove the hood. Refer to Disassembly and
Assembly, "Hood - Remove and Install" in this
manual.
Note: Put identification marks on all wires prior to
the removal of the electric starting motor.

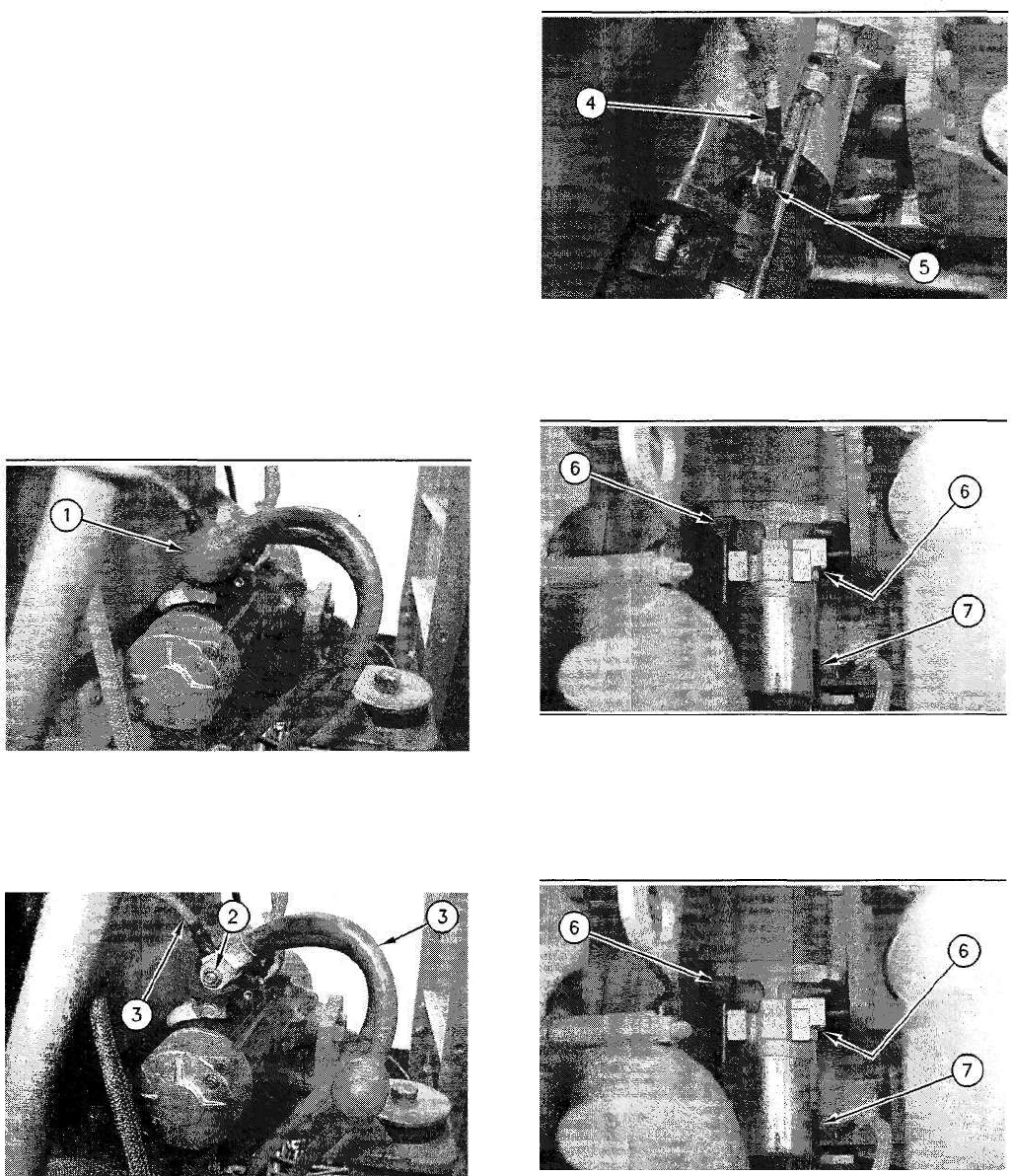

Illustration 11
1. Remove rubber boot (1). Slide the rubber boot
down the battery cable in order to access the
nut under the rubber boot.
Illustration 13
3. Remove bolt (5) and the washer. Disconnect
grounding strap (4).
Illustration 14
4. Remove nuts (6). Remove electrical starting
motor (7).
Installation Procedure
Illustration 12
Illustration 15
1. Install electrical starting motor (7) in the flywheel
housing. Install nuts (6).
