Caterpillar 320C Excavator Supplement for 3066 Engine Page 93

Supplement
93
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
5. Remove four bolts (4) and the washers. Remove
refrigerant compressor (5).
Installation Procedure

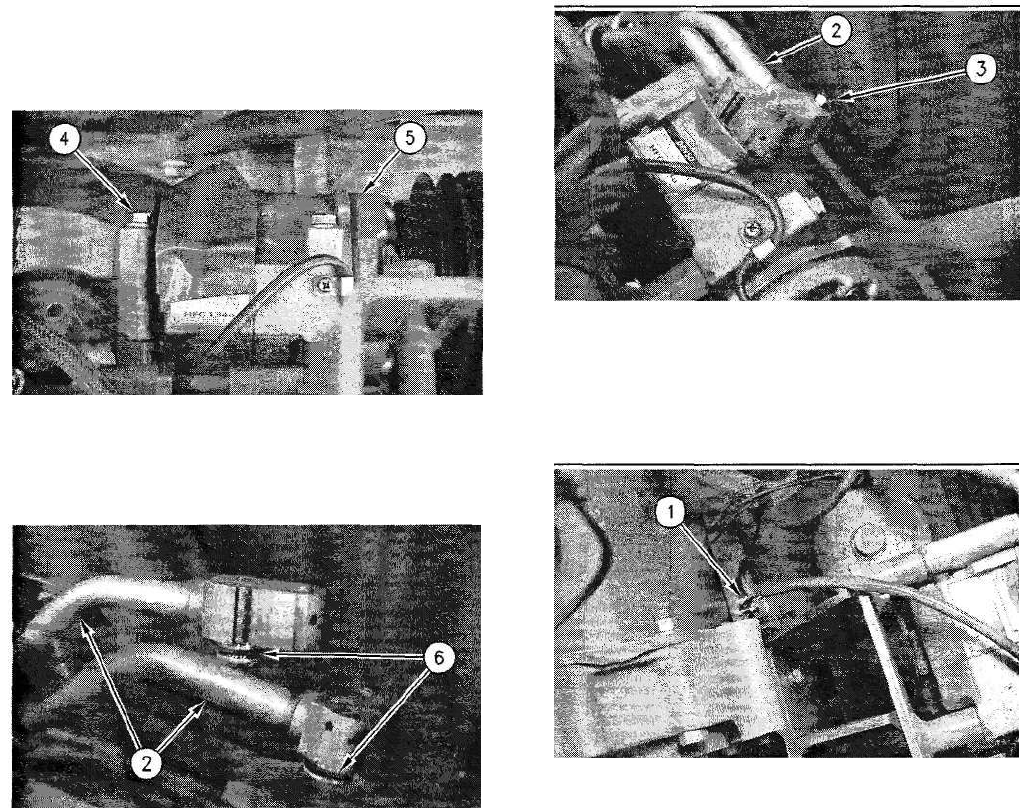

Illustration 370
1. Place refrigerant compressor (5) in position.
Install the washers and four bolts (4).
Illustration 371
Note: O-rings, gaskets, and seals should always be
replaced. A used O-ring may not have the same
sealing properties as a new O-ring. Use 1U-6396
O-Ring Assembly Compound during the assembly
procedure.
Illustration 372
3. Remove the tape from the refrigerant compressor.
Connect tube assemblies (2). Install the washers
and bolts (3). Tighten the bolts to a torque of
10 ± 2 N-m (88.5 ± 17.7 lb in).
Illustration 373
The alternator is removed for photographic purposes.
4. Connect the electrical wiring connection (1).
2. Remove the tape from tube assemblies (2).
Replace O-ring seals (6) with new O-ring seals.
