Caterpillar 320C Excavator Supplement for 3066 Engine Page 77

Supplement
77
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

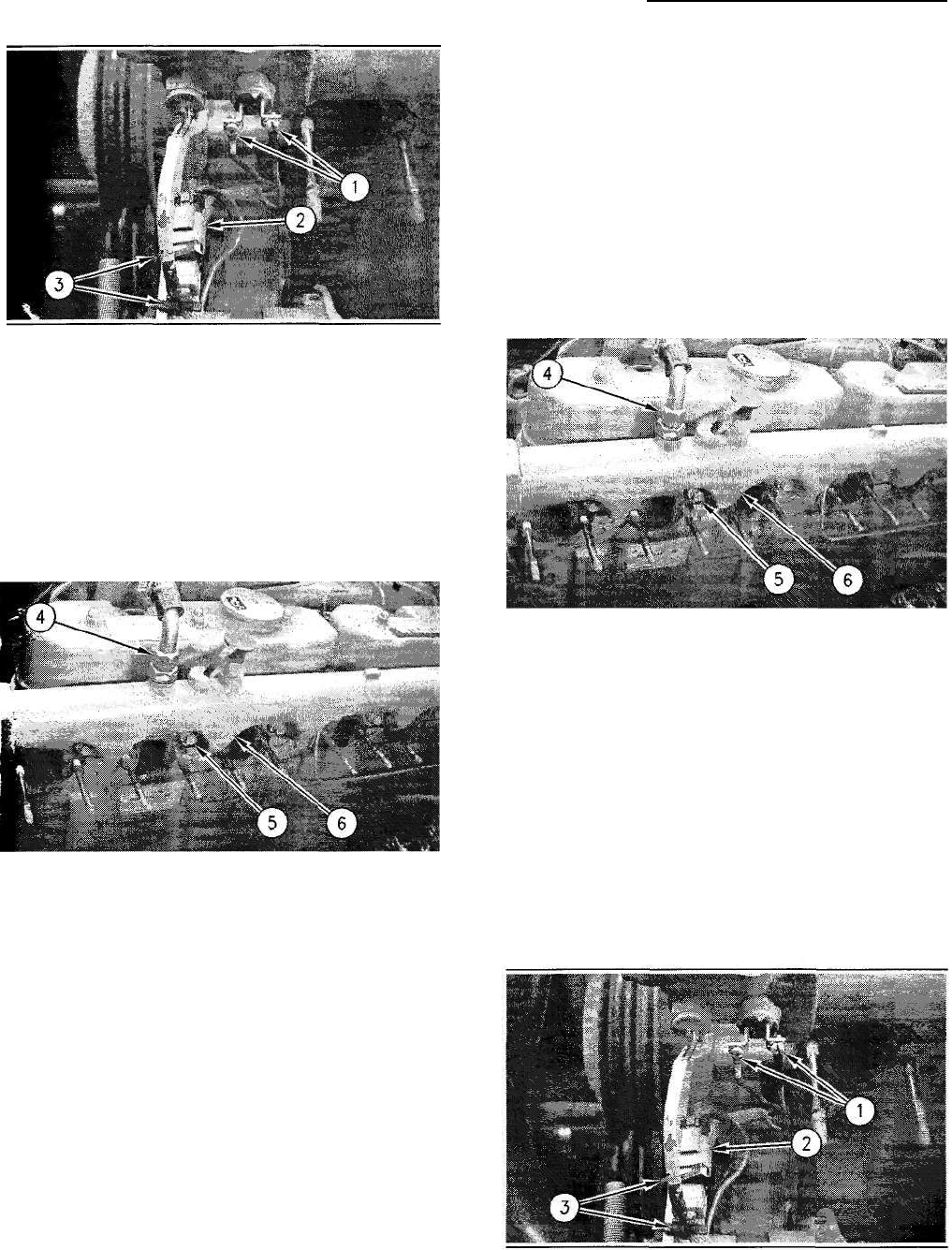

•ustration 304
Note: Put identification marks on the two wires for
retaliation purposes.
2. Remove two screws (1) in order to disconnect
two wires.
3. Disconnect electrical connection (2).
4. Remove wire tie-wraps (3).
Illustration 305
5. Disconnect hose assembly (4).
6. Remove twelve bolts (5) and the washers from
water outlet manifold (6).
7. Remove water outlet manifold (6) from the
engine.
8. Remove six gaskets (not shown) from the engine.
i01342375
Water Outlet Manifold - Install
SMCSCode: 1362-012
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
Illustration 306
Note: Gaskets should always be replaced. A used
gasket may not have the same sealing properties
as a new gasket. Use 8T-9013 Silicone Sealant
during the assembly procedure.
1. Install the gaskets on the engine.
2. Put water outlet manifold (6) in position on the
engine.
3. Install bolts (5) that secure water outlet manifold
(6) to the engine.
4. Connect hose assembly (4).
Illustration 307
5. Connect electrical connection (2).
