Caterpillar 320C Excavator Supplement for 3066 Engine Page 39

Supplement
39
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
Installation Procedure

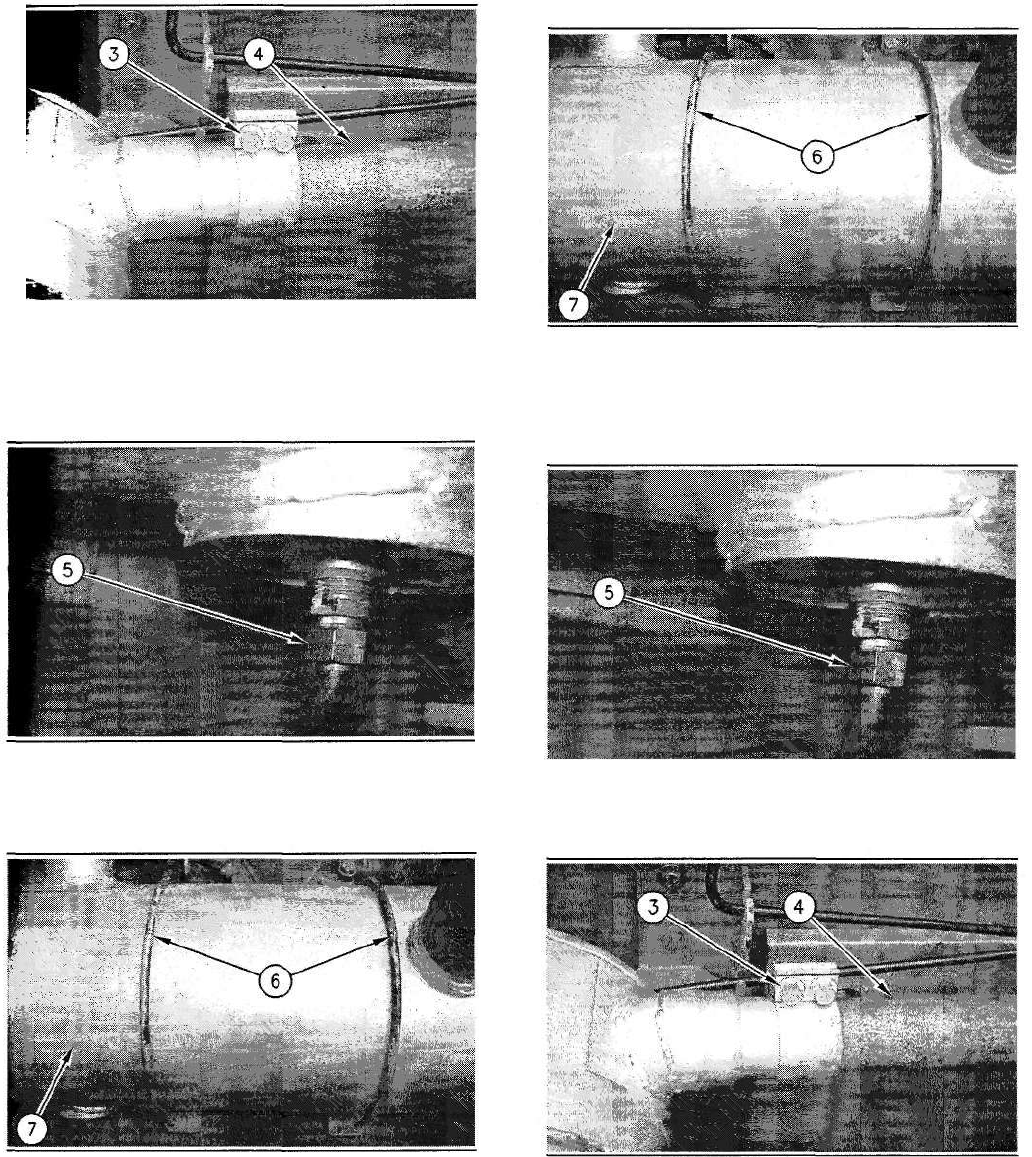

3. Loosen clamp (3). Slide clamp (3) onto pipe (4).
Remove pipe (4), clamp (3), and the gasket that
is between pipe (4) and the turbocharger.
Illustration 155
1. Place muffler (7) in position on the brackets in the
engine compartment. The weight of the muffler is
approximately 16 kg (35 lb). Install U-bolts (6).
Illustration 153
4. Disconnect drain line (5) from the bottom of the
muffler.
Illustration 156 g0072
19
79
2. Connect drain line (5) to the bottom of the muffler.
Illustration 154
5. Remove U-bolts (6). Remove muffler (7). The
weight of the muffler is approximately 16 kg
(35 lb).
Illustration 157
3. Install a new gasket between pipe (4) and
the turbocharger. Slide clamp (3) onto pipe
(4). Install pipe (4) and clamp (3) on the
turbocharger. Slide clamp (3) so that the clamp
is half on pipe (4) and half on the muffler. Do not
tighten clamp (3) at this time.
