Caterpillar 320C Excavator Supplement for 3066 Engine Page 23

Supplement
23
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

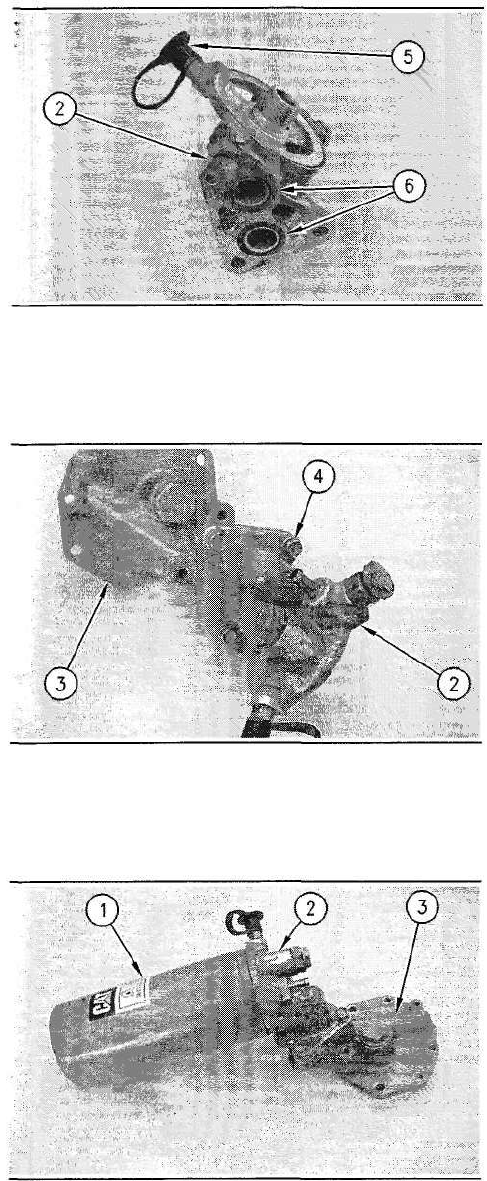

Illustration 76
h. Install cap (5) to the oil sampling valve.
i. Install two O-rings (6) to bracket assembly (2).
Illustration 77
3. Hold the bracket assembly (2) to the base
assembly (3). Install three washers and three
bolts (4).
End By:
a. Install the engine oil filter and filter bases. Refer
to Disassembly and Assembly, "Engine Oil Filter
and Oil Filter Base - Install" in this manual.
i01342037
Engine Oil Cooler - Remove
and Install
SMCS Code: 1378-010
Removal Procedure
Start By:
a. Remove the dipstick. Refer to Disassembly and
Assembly, "Engine Oil Level Gauge (Dipstick)
- Remove and Install".
b. Remove the engine oil filter. Refer to Disassembly
and Assembly, "Engine Oil Filter and Oil Filter
Base - Remove".
c. Remove the fuel injection pump. Refer to
Disassembly and Assembly, "Fuel Injection
Pump Housing and Governor - Remove".
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar
Tools and Shop Products Guide" for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
Illustration 78
4. Install oil filter (1) hand tight.
Previous page
Next page
