Caterpillar 320C Excavator Supplement for 3066 Engine Page 21

Supplement
21
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

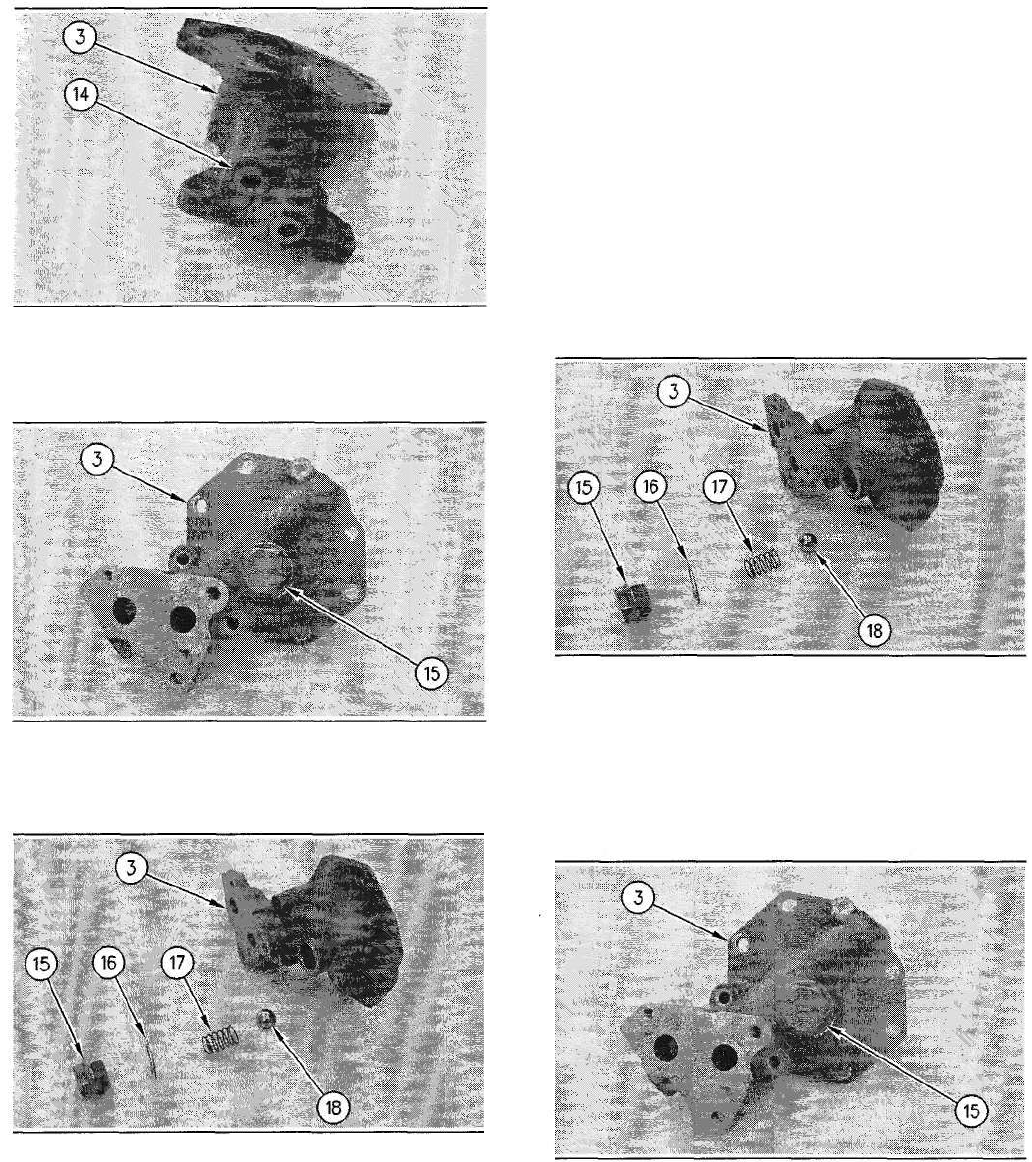

Illustration 65
a. Remove two plugs (14) from the oil filter base
(3).
Illustration 66
b. Remove plug (15) in order to disassemble the
anti-drain back valve.
i01353311
Engine Oil Filter Base -
Assemble
SMCS Code: 1306-016; 1306
Assembly Procedure
Note: The filter base comes in two sections: The first
section is the base assembly (3) and the second
section is the bracket assembly (2).
1. Use the following procedure to assemble the oil
filter base (3).
Illustration 68
a. Install seal washer (16) to plug (15).
b. Install ball (18) and spring (17) to filter base
(3).
c. Install plug (15).
Illustration 67
c. Remove ball (18) and spring (17) from filter
base (3).
d. Remove seal washer (16) from plug (15).
Illustration 69
d. Install plug (15).
