Caterpillar 320C Excavator Supplement for 3066 Engine Page 45

Supplement
45
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
Water Temperature Regulator -
Remove and Install
SMCSCode: 1355-010
Removal Procedure

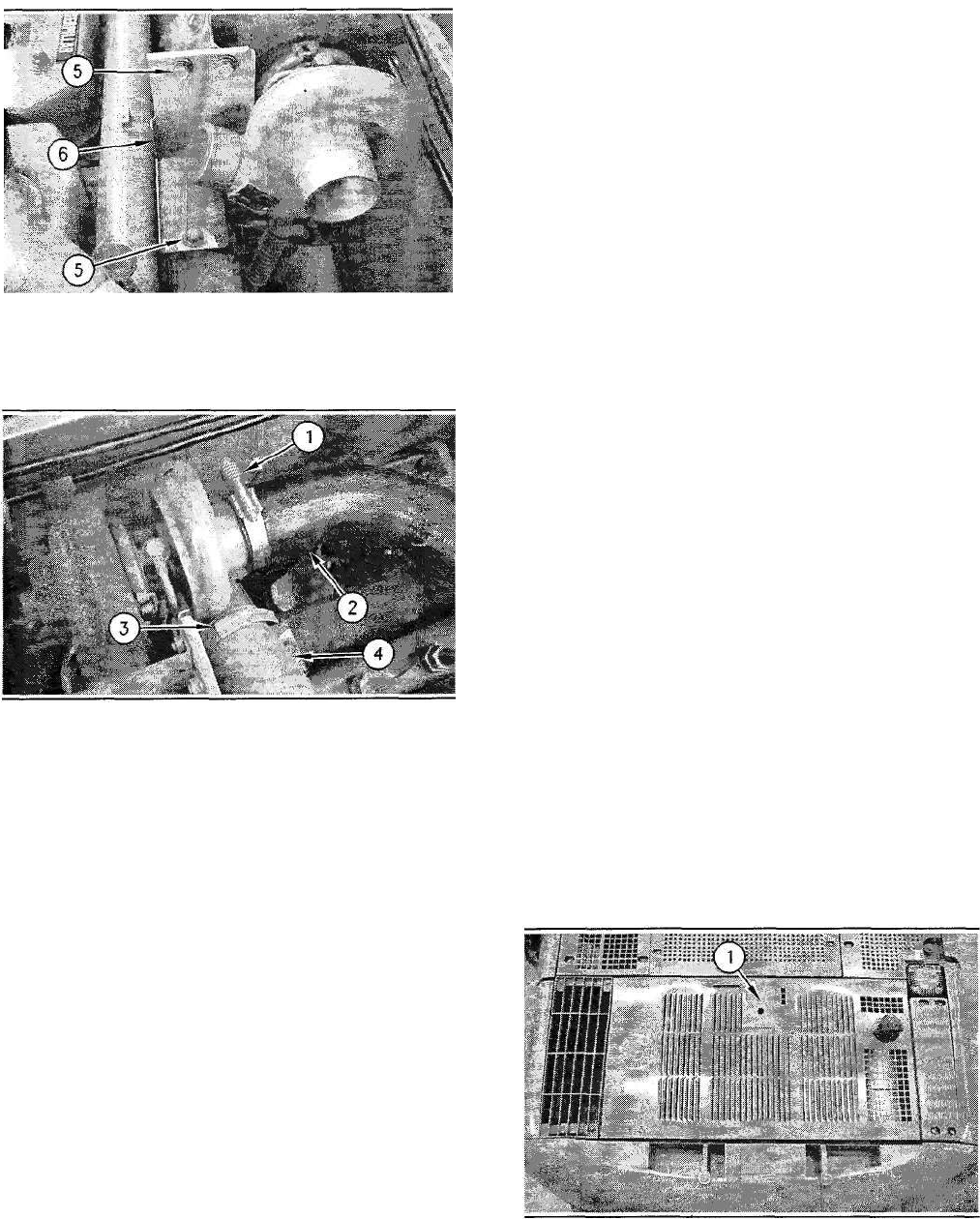

Illustration 184
7. Install heat shield (6). Install the washers and
bolts (5).
Illustration 185
8. Connect air line (4). Tighten hose clamp (3).
9. Connect air line (2). Tighten hose clamp (1).
10. Close
the engine hood.
WARNING
At operating temperature, the engine coolant is
hot and under pressure.
Steam can cause personal injury.
Check the coolant level only after the engine has
been stopped and the filler cap is cool enough to
touch with the bare hand.
Remove the filler cap slowly to relieve pressure.
Cooling system conditioner contains alkali. Avoid
contact with skin and eyes to prevent personal in-
jury.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar
Tools and Shop Products Guide" for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
Illustration 186
1. Open hood (1).
