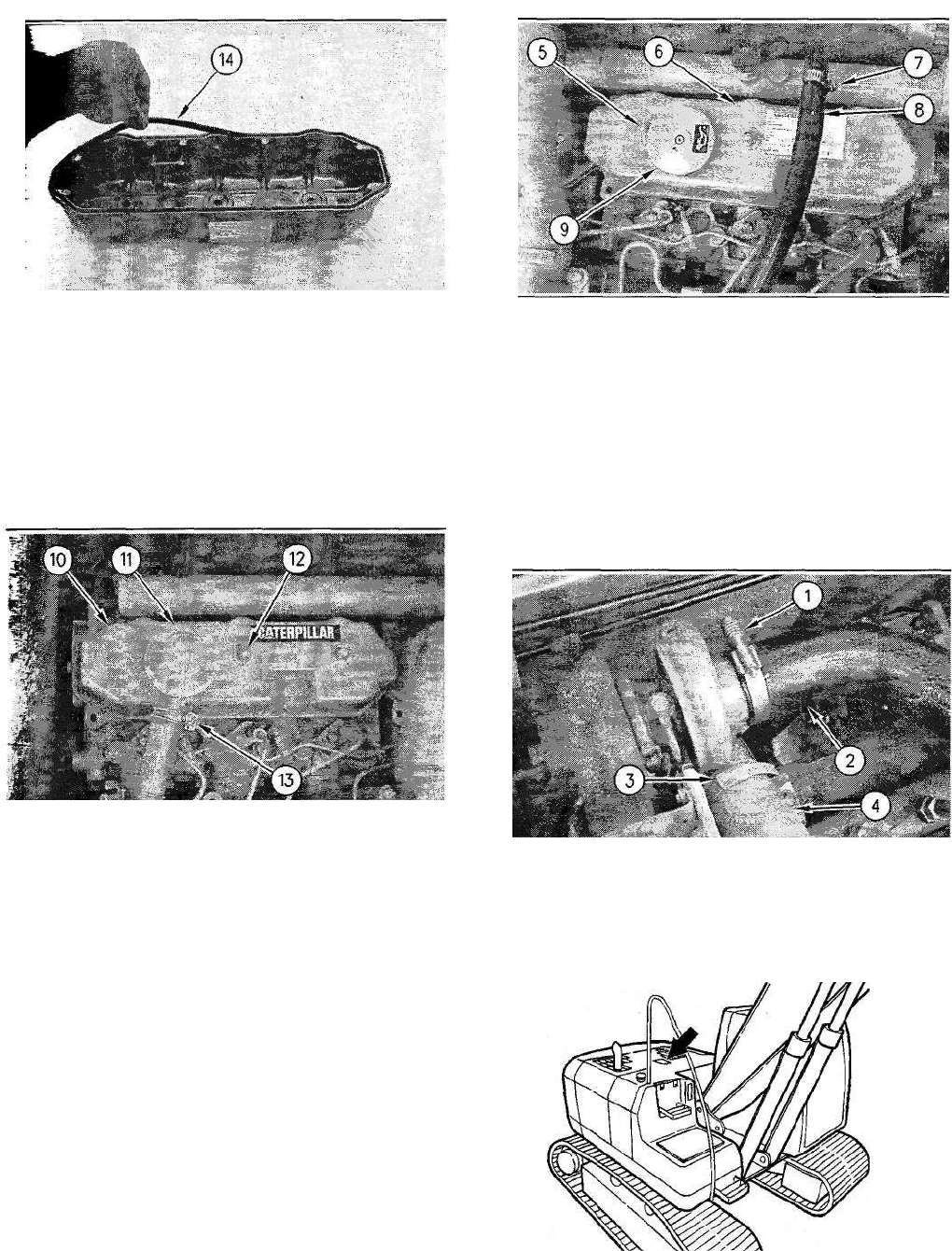

Caterpillar 320C Excavator Supplement for 3066 Engine Page 59

Supplement
tion 240
1. Install gaskets (14) onto valve mechanism covers
(6) and (10).
Note: O-rings, gaskets, and seals should always be
replaced. A used O-ring may not have the same
sealing properties as a new O-ring. Use 1U-6396
O-Ring Assembly Compound during the assembly
procedure.
Illustration 241
2. install valve mechanism cover (10). Install the
washers and three acorn nuts (12).
3. Torque the acorn nuts (12) to 4 ± 1 N-m
" (35 ± 9 lb in).
4. Install breather (11). Tighten hose clamp (13).
59
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
Illustration 242
5. Install valve mechanism cover (6). Install the
washers and three acorn nuts (5).
6. Torque three acorn nuts (5) to 4 ± 1 N-m
(35 ± 9 lb in).
7. Install filler cap (9).
8. Connect hose (8) to the water manifold. Tighten
hose clamp (7).
Illustration 243 g00710484
9. Connect air line (4). Tighten hose clamp (3).
10. Connect
air line (2). Tighten hose clamp (1).
Illustration 244
