Caterpillar 320C Excavator Supplement for 3066 Engine Page 68

Supplement
68
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

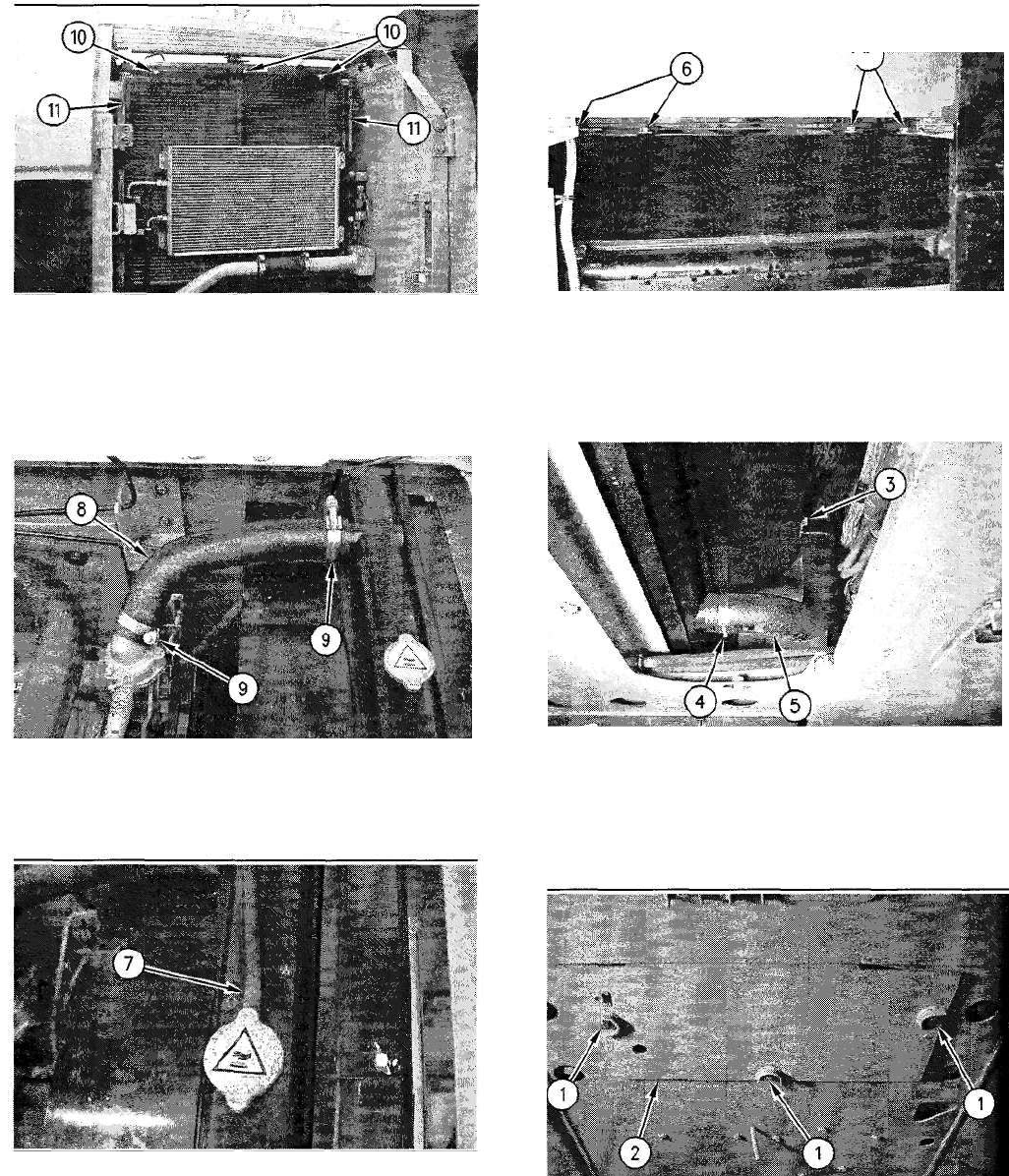

lllustration 275
7. Install screens (11) on the front of the hydraulic
oil cooler. Install wing bolts (10).
8. Close the left rear access door.
Illustration 276
9. Install upper radiator hose (8). Tighten hose
clamps (9).
Illustration 277 900717598
10. Connect overflow hose (7) to the radiator.
(6
Illustration 278
This is a view of the bottom of the radiator.
11. Install the washers and bolts (6) in the bottom
half of the fan guard.
Illustration 279
12. Connect
lower radiator hose (5). Tighten hose
clamp (4).
13. Install the washer and bolt (3) in the hose clamp.
Illustration 280
14. Install access panel (2) that is located under the
radiator. Install the washers and bolts (1).
