Caterpillar 320C Excavator Supplement for 3066 Engine Page 76

Supplement
76
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

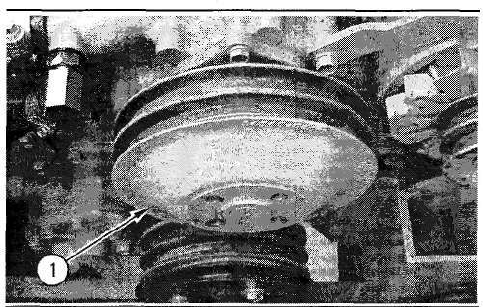

Illustration 303 9
00710833
4. Install pulley (1).
End By:
a. Install the V-belts. Refer to Disassembly and
Assembly, "V-Belts - Remove and Install" in this
manual.
b. Install the fan. Refer to Disassembly and
Assembly, "Fan - Remove and Install" in this
manual.
WARNING
Personal injury can result from hot coolant, steam
and alkali.
At operating temperature, engine coolant is hot
and under pressure. The radiator and all lines
to heaters or the engine contain hot coolant or
steam. Any contact can cause severe burns.
Remove cooling system pressure cap slowly to
relieve pressure only when engine is stopped and
cooling system pressure cap is cool enough to
touch with your bare hand.
Do not attempt to tighten hose connections when
the coolant is hot, the hose can come off causing
burns.
Cooling System Coolant Additive contains alkali.
Avoid contact with skin and eyes.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
Water Outlet Manifold -
Remove
SMCSCode: 1362-011
Removal Procedure
Start By:
a. Remove the exhaust manifold. Refer to
Disassembly and Assembly, "Exhaust Manifold
- Remove and Install".
b. Remove the water temperature regulator. Refer to
Disassembly and Assembly, "Water Temperature
Regulator - Remove and Install".
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, "Caterpillar
Tools and Shop Products Guide" for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
1. Drain the level of the coolant below the water
outlet manifold. Drain the coolant into a suitable
container for storage or disposal.
