Caterpillar 320C Excavator Supplement for 3066 Engine Page 6

Supplement
6
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
12. Repeat Steps 4 through 11 for each additional
hydraulic circuit that requires service.
13. After releasing the hydraulic pressure in each of
the desired hydraulic circuits, place the hydraulic
activation control lever in the LOCKED position.
14. Turn the engine start switch to the OFF position.
15. Slowly loosen the filler plug on the hydraulic
tank and release the pressure. Leave the filler
plug loose for a minimum of 45 seconds. This
will release the pressure that may be present in
the return hydraulic circuit.
16. Tighten the filler plug on the hydraulic tank to
the specified torque.
17. The pressure in the multiple hydraulic circuits
that require service is now released and lines
and components can be disconnected or
removed from those hydraulic circuits.
i01341250
Alternator - Remove and Install
SMCSCode: 1405-010
Removal Procedure
Start By:

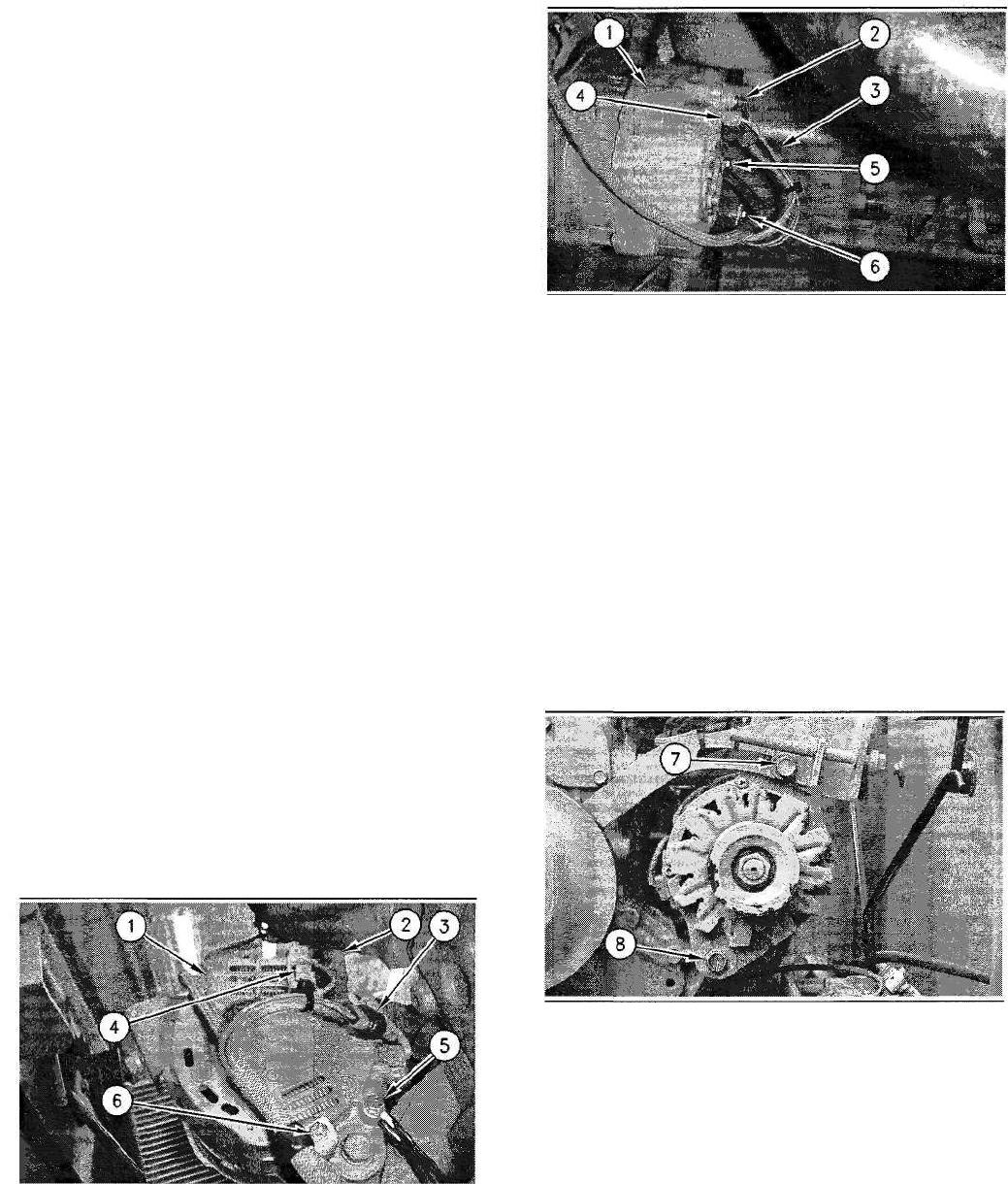

Illustration 4
Top view of the alternator
1. Remove the nut and the washer behind rubber
boot (2). Disconnect the wire behind the rubber
boot.
2. Remove electrical connection (4) from the
alternator (1).
3. Disconnect electrical connection (3).
4. Remove bolt (5) and the washer in order to
disconnect the ground wires from alternator (1).
5. Remove bolt (6), the washer, and the spacer
in order to remove the wiring harness from
alternator (1).
a. Deactivate the electrical system. Refer to
Operation and Maintenance Manual, "Battery
Disconnect Switch" in order to deactivate the
electrical system.
b. Remove the V-Belts. Refer to Disassembly and
Assembly, "V-Belts - Remove and Install" in this
manual.
j 2 inn
Illustration 5
The radiator is removed for photographic purposes.
6. Remove bolt (7) and the washer from the
alternator.
Illustration 3
Rear view of the alternator
7. Remove bolt (8), the washer, and the spacer
from the alternator.
