Caterpillar 320C Excavator Supplement for 3066 Engine Page 54

Supplement
54
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
i01342315
Fuel Injection Pump - Install
SMCSCode: 1251-012
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. If the nut for the drive gear was removed,
tighten the nut for the drive gear to a torque of
90.5 ± 7.5 N-m (66.5 ± 5.5 lb ft).

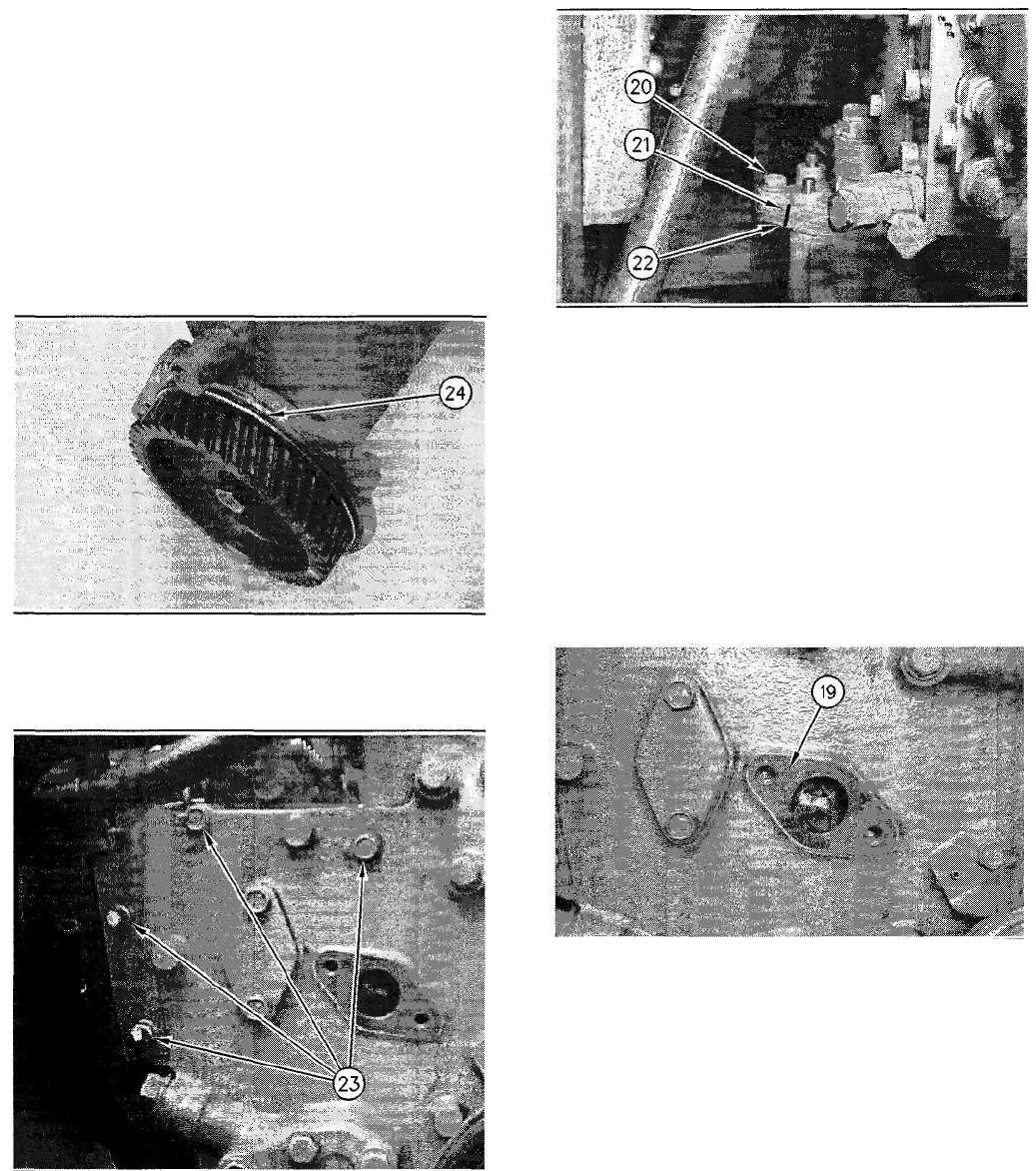

Illustration 219
2. Install new O-ring seal (24) on the mounting
flange of the fuel injection pump.
3. Install the fuel injection pump.
4. Install the washers and four bolts (23) that secure
the fuel injection pump to the front housing.
Illustration 221
5. Ensure that the mark on pump mounting flange
(22) and the mark on fuel injection pump flange
(21) are aligned.
Ensure that the timing mark on the fuel injection
pump gear is aligned with the timing mark on
the idler gear. Refer to Testing and Adjusting
Module, "Fuel System"for more information on
fuel injection pump timing.
6. Install the washers and two bolts (20) on the
back side of the fuel injection pump.
Illustration 222
The radiator is removed for photographic purposes.
7. Install gasket (19).
Illustration 220
