Caterpillar 320C Excavator Supplement for 3066 Engine Page 111

Supplement
111
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
15. Tighten nuts (68) in order to connect the
governor control cables.
16. Connect governor control cable (66). Connect
governor control cable (67).

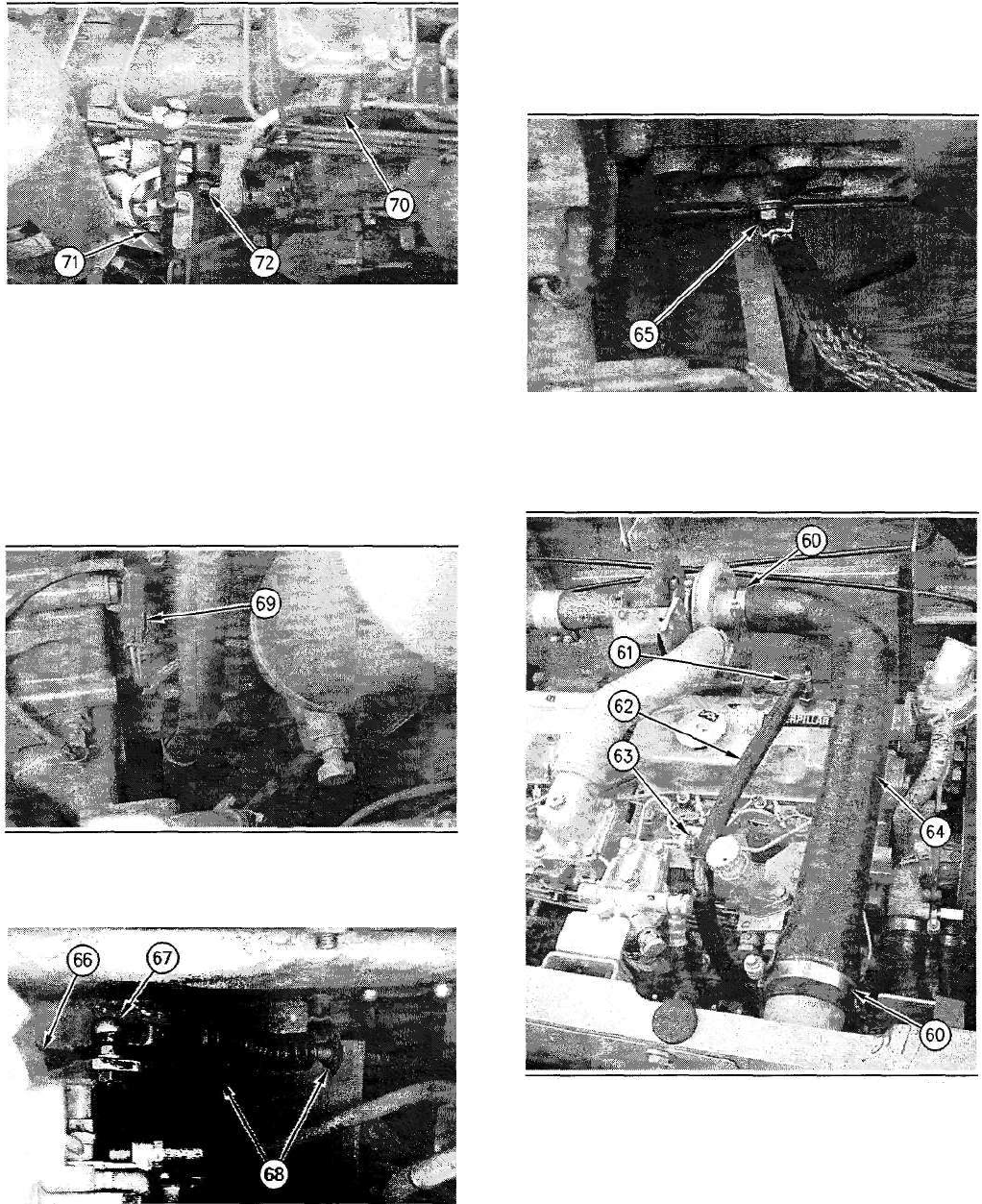

Illustration 436
11. Install
the washer and bolt (71) in the clip for
the wiring harness.
12. Install the spacer, the washer, and bolt (72) in
order to connect the wiring harness and the
dipstick tube.
13. Connect electrical connector (70) to the air inlet
heater.
Illustration 439
17. Install bolt (65) in order to connect the ground
strap.
Illustration 437 9
00722359
14. Connect electrical connector (69) to the flywheel.
Illustration 438
Note: Make sure that nuts (68) are installed in the
original locations.
Illustration 440 goo/22124
18. Connect hose (62).
19.Tighten hose clamp (61).
20. Install the washer and bolt (63) that holds hose
(62).
21. Install hose (64).
