Caterpillar 320C Excavator Supplement for 3066 Engine Page 40

Supplement
40
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section
b. Remove the V-Belts from the alternator. Refer to
Disassembly and Assembly, "V-Belts - Remove
and Install" in this manual.

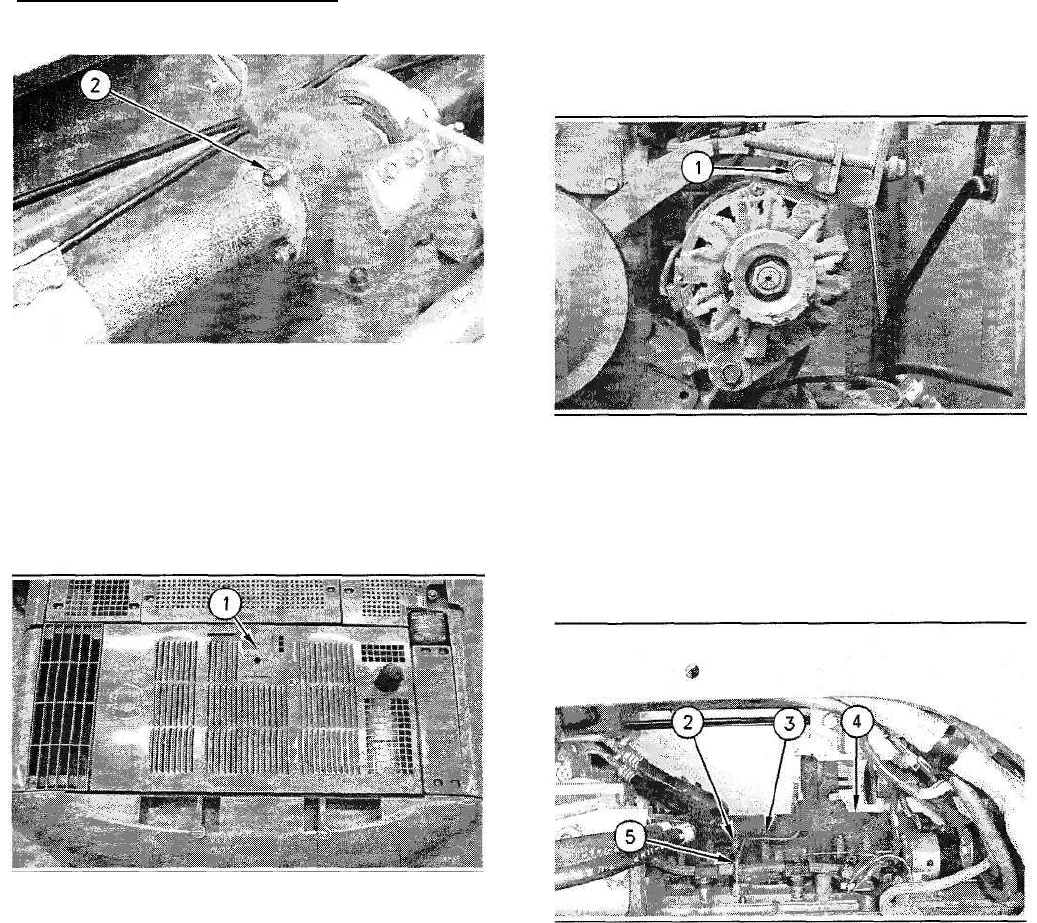

Illustration 158
4. Apply 4C-5599 Anti-Seize Compound to the
threads of nuts (2). Install nuts (2).
Note: Nuts (2) are doubled on the turbocharger.
5. Make sure that clamp (3) is half on pipe (4) and
half on the muffler. Tighten clamp (3).
Illustration 159
6. Close hood (1).
Illustration 160
The radiator is removed for photographic purposes.
Note: The alternator must be moved in order to
remove the exhaust manifold.
1. Remove bolt (1) from the alternator. Position the
alternator away from the exhaust manifold.
Illustration 161
i01342304
Exhaust Manifold - Remove
and Install
SMCSCode: 1059-010
Removal Procedure
2. Remove nut (3) and the washer. Remove oil line
(5). Remove the spacers.
3. Remove nuts (2), the spacers, the sleeves, and
the washers.
4. Remove exhaust manifold (4).
Start By:
a. Remove the turbocharger. Refer to Disassembly
and Assembly, "Turbocharger - Remove and
Install" in this manual.
