Caterpillar 320C Excavator Supplement for 3066 Engine Page 58

Supplement
58
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

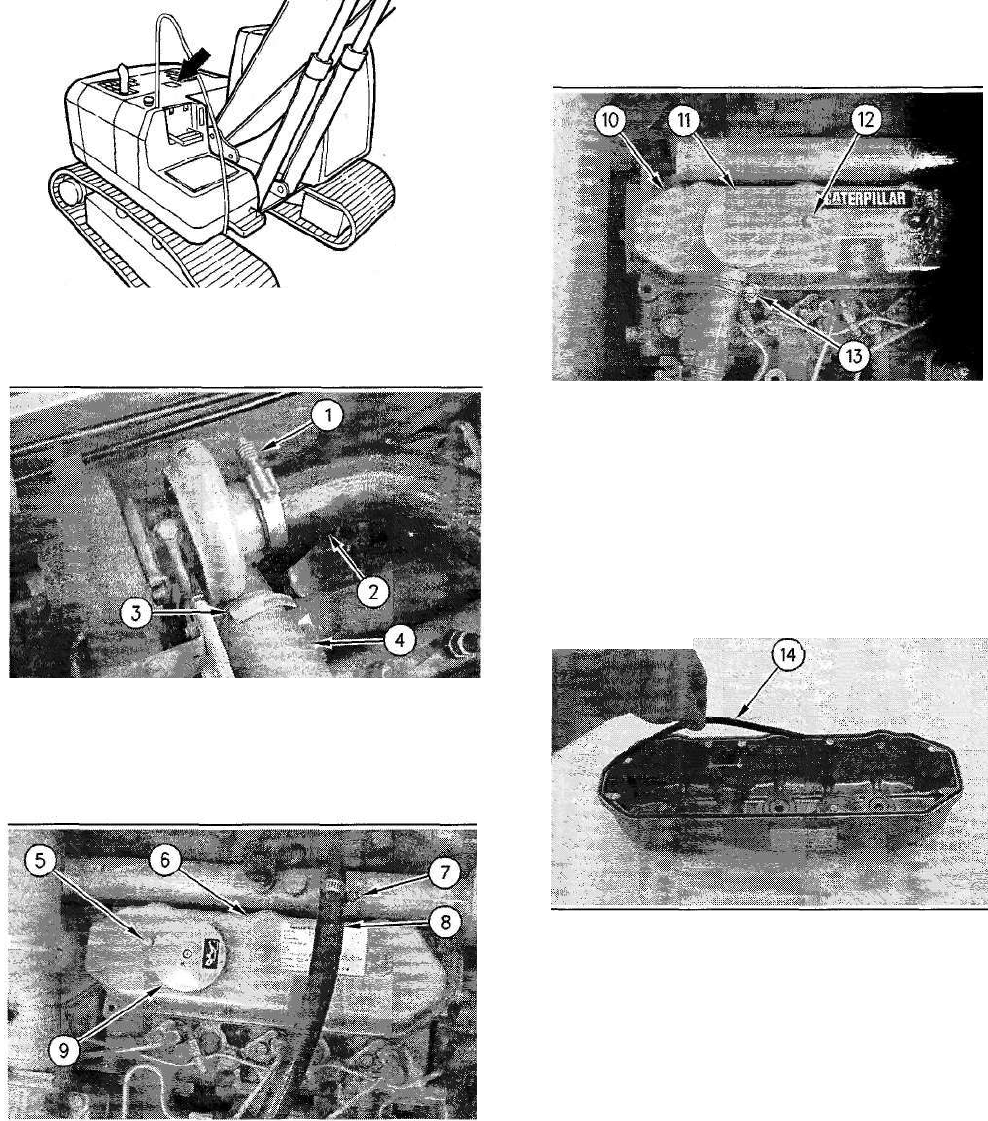

Illustration 235
1. Open the engine hood.
Illustration 236 goo/10484
2. Loosen hose clamp (1). Disconnect air line (2).
3. Loosen hose clamp (3). Disconnect air line (4).
6. Remove three acorn nuts (5) and washers in
order to remove valve mechanism cover (6).
7. Remove valve mechanism cover (6).
Illustration 238
8. Loosen hose clamp (13) and remove breather
(11).
9. Remove three acorn nuts (12) and the washers
in order to remove valve mechanism cover (10).
10. Remove
valve mechanism cover (10).
Ml
Illustration 237
4. Loosen hose clamp (7) and disconnect hose (8)
from the water manifold.
Illustration 239
11. Remove O-ring seal (14) from valve mechanism
cover (6) and (10).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
5. Remove filler cap (9).
