Caterpillar 320C Excavator Supplement for 3066 Engine Page 91

Supplement
91
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

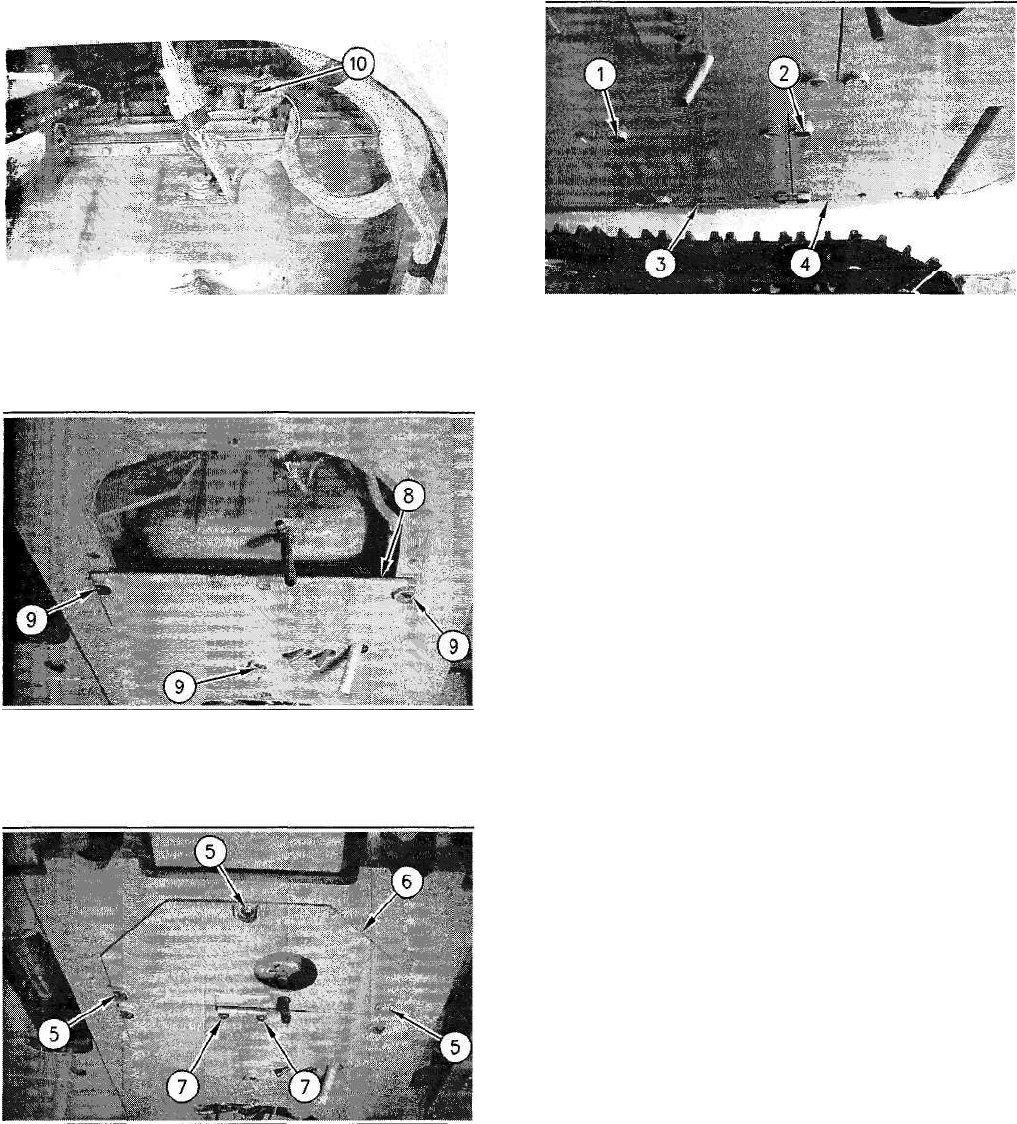

Illustration 363
Illustration 366
12. Connect electrical connector (10) for the engine
oil level switch.
Illustration 364
13. Install access panel (8). Install the washers and
bolts (9).
Illustration 365
14. Install access panel (6). Install the washers and
bolts (5).
15. Install the washers and bolts (7) to the hinge.
16. Install access panel (3) that is located under the
main pump. Install the washers and bolts (1).
17. Install access panel (4) that is located under the
main pump. Install the washers and bolts (2).
18. Install the dipstick.
Reference: Refer to Disassembly and Assembly,
"Engine Oil Level Guage (Dipstick) - Remove
and Install" in this manual.
19. Fill the engine with oil to the correct level.
Reference: Refer to Operation and Maintenance
Manual for the correct procedure.
Reference: Refer to Operation and Maintenance
Manual for the refill capacities.
i01342150
Refrigerant Compressor -
Remove and Install
SMCSCode: 1802-010
Removal Procedure
Start By:
a. Remove the hood. Refer to Disassembly and
Assembly, "Hood - Remove and Install" in this
manual.
b. Remove the V-belt from the refrigerant
compressor. Refer to Disassembly and
Assembly, "V-Belts - Remove and Install" in this
manual.
