Caterpillar 320C Excavator Supplement for 3066 Engine Page 28

Supplement
28
Excavator Supplement for 3066 Engine
Disassembly and Assembly Section

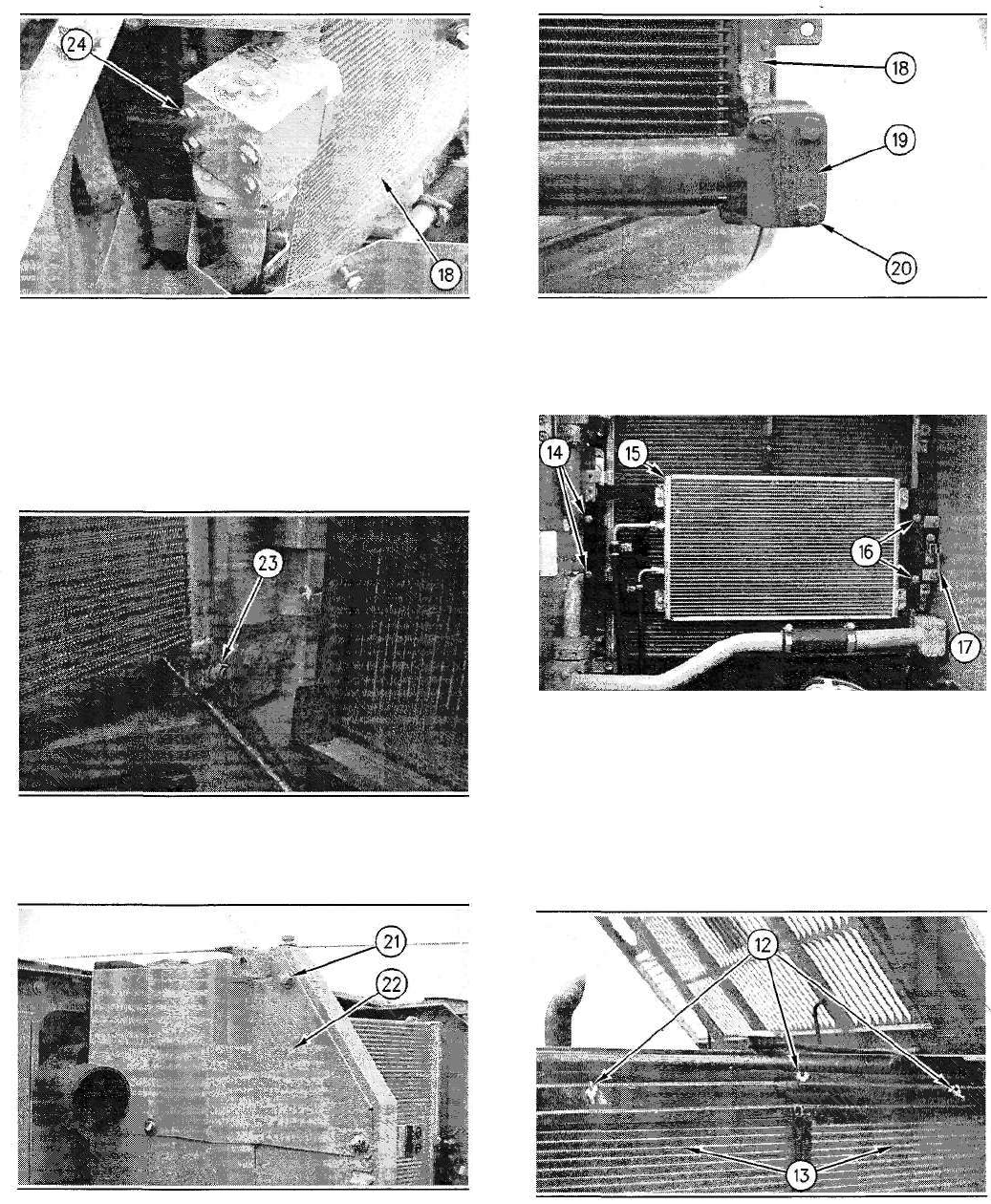

Illustration 94
Note: Use two persons to install the oil cooler.
1. Carefully install oil cooler (18). The weight of the
oil cooler is 16 kg (35 lb).
2. Install the washers and four bolts (24) in the oil
cooler.
''". .."«•*
J-"
Bllltilll»3lliaQlllil
Illustration 95
f:
wBMSBBfe
j|jlsl|l|
»•
:f
i;
*r£MMmfr 14HHHI
• ••.-'. .••- •' * •..
t
l
f '
Illliilil
-•* .-•i''.
:
.-
* 7.
*
- *<
%
§sHfH»f
i^^^^^^^^^^^w
g00709964
3. Install the bolt, the washer, and nut (23) in the
bottom of the oil cooler.
Illustration 97
5. Connect tube (19) to oil cooler (18). Install the
washers and four bolts (20).
Illustration 98
6. Place refrigerant condenser (15) in position.
Install the washers and two bolts (16).
Note: Make sure that handle (17) is latched.
7. Install two bolts (14), two washers, and two nuts
on the mounting bracket.
Illustration 96
Illustration 99
4. Place panel (22) in position. Install the washers
and five bolts (21).
