Caterpillar Customer Communication Module PC Page 48

Getting Started
8-14

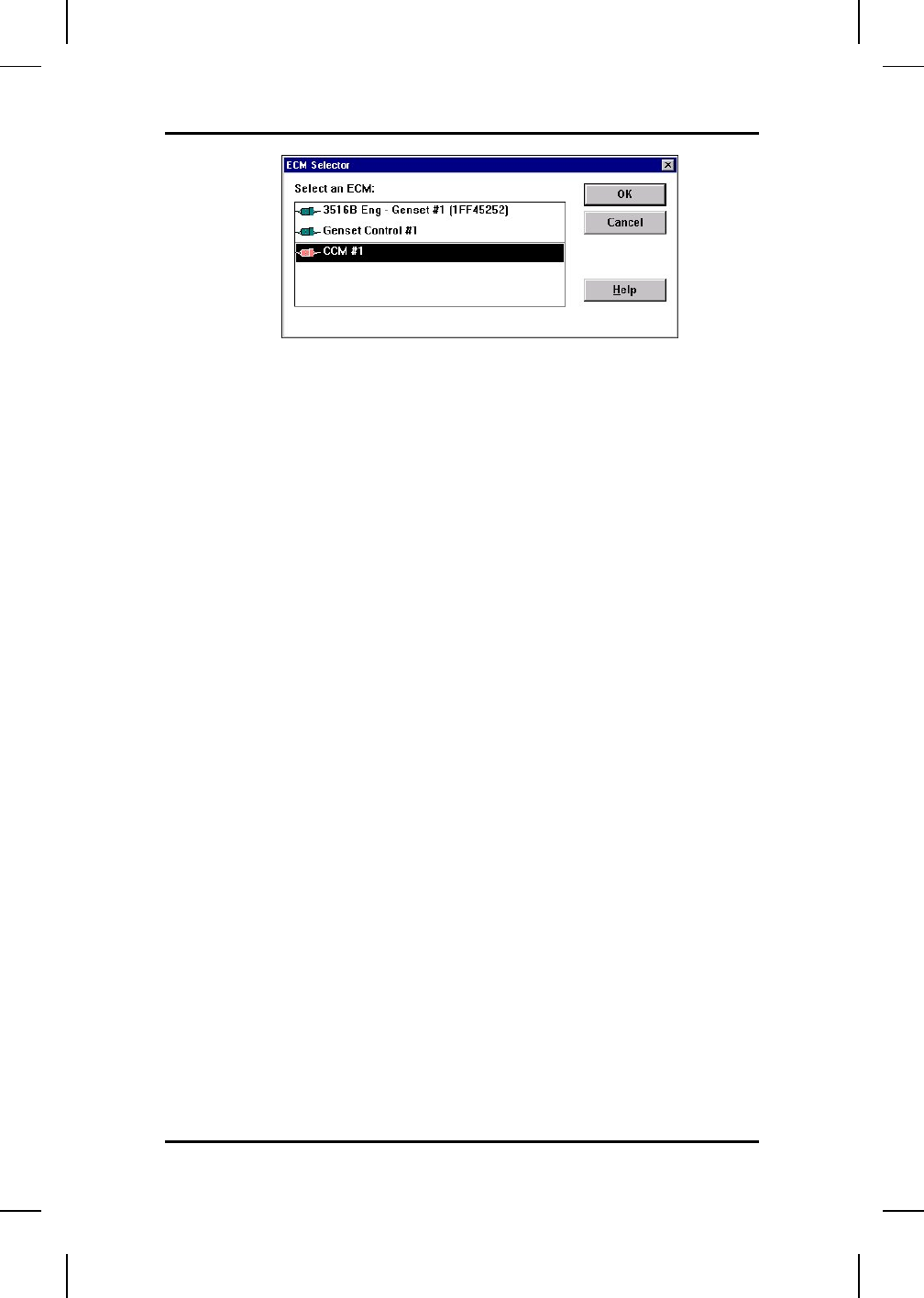

Illustration 8-9: ECM Selector dialog box
Step 2 Select the CCM ECM and press “OK.”
Press “Cancel” to exit the ECM Selector dialog box.
Press “Help” to open online help for assistance.
Step 3 Select CCM Diagnostic Codes from the Diagnostics
menu. The CCM Diagnostic Codes screen displays.
Screen Layout
The CCM Diagnostic Codes screen has the following areas:
Display Area
The CCM Diagnostic Codes screen has two columns: Description
and Status. The Description column informs you of the problem that
is occurring. The CCM code numbers shown in front of the
description are used to identify the diagnostic codes. The Status
column displays if the fault codes are active.
Pushbuttons
The pushbuttons available in the CCM Diagnostic Codes screen are:
•= Clear
•= Print
Note: See “Printing a Document” section 6.
