Caterpillar Customer Communication Module PC Page 81

Getting Started
10-3
Section
10
Changing the Parameter Values

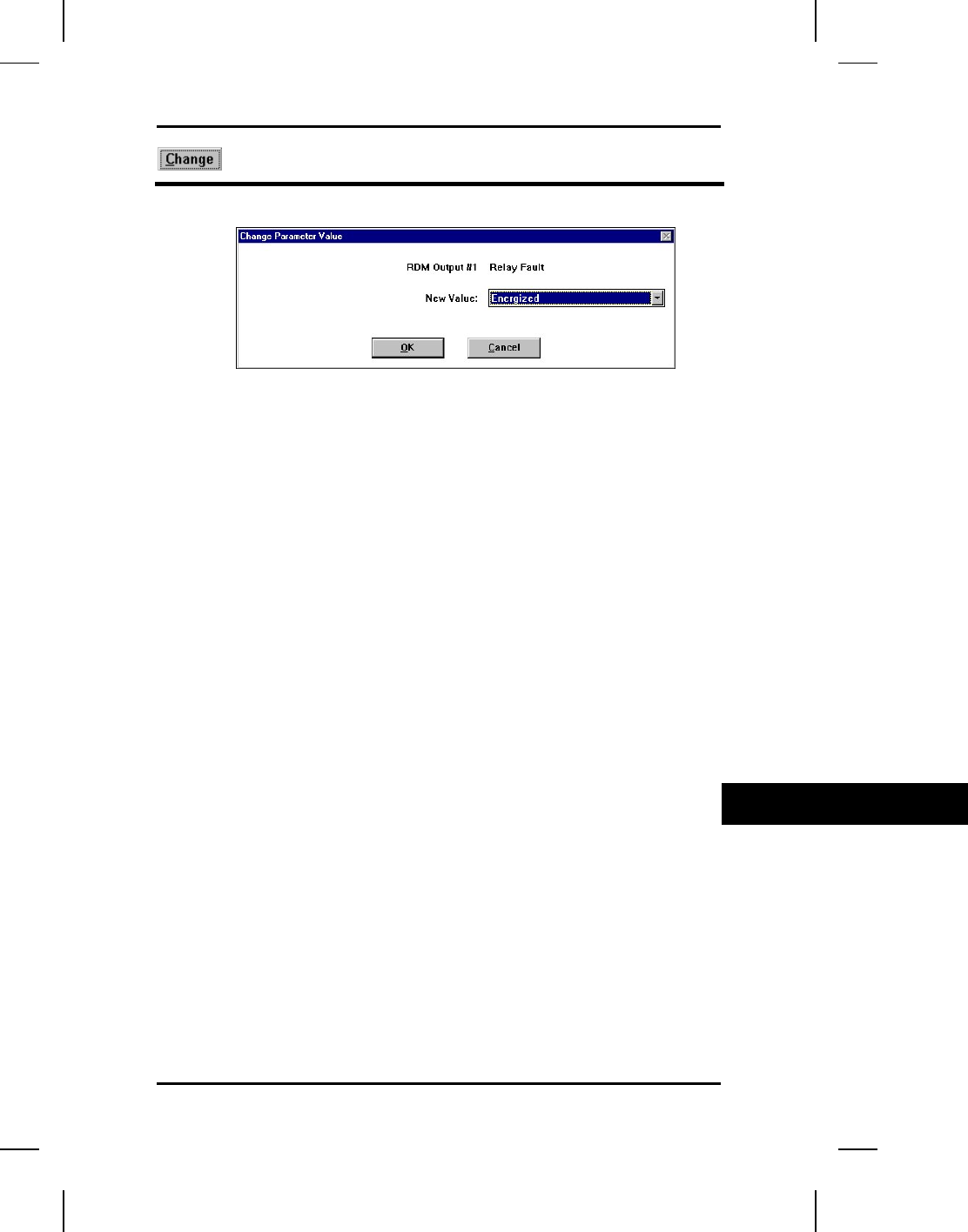

Illustration 10-2: Change Parameter Value dialog box
Purpose
The “Change” pushbutton allows you to change the selected
parameter’s value.
Instructions
To change the selected parameter:
Step 1 In the display area, select the parameter value you want
to change and press the “Change” pushbutton. The
Change Parameter Value dialog box displays.
Step 2 Depending on the parameter you select to change, enter
the new value in the New value text box or select the
New Value from the drop-down list.
Step 3 Press “OK” to accept the new value. The “Are you
sure…” message box displays. Press “Yes” if you want
to change this parameter, or press “No” if you do not
want to change the parameter.
Press “Cancel” to exit the dialog box without saving the new
value. You will return to the Control screen.
