Caterpillar Customer Communication Module PC Page 93

Getting Started
12-5
Section
12

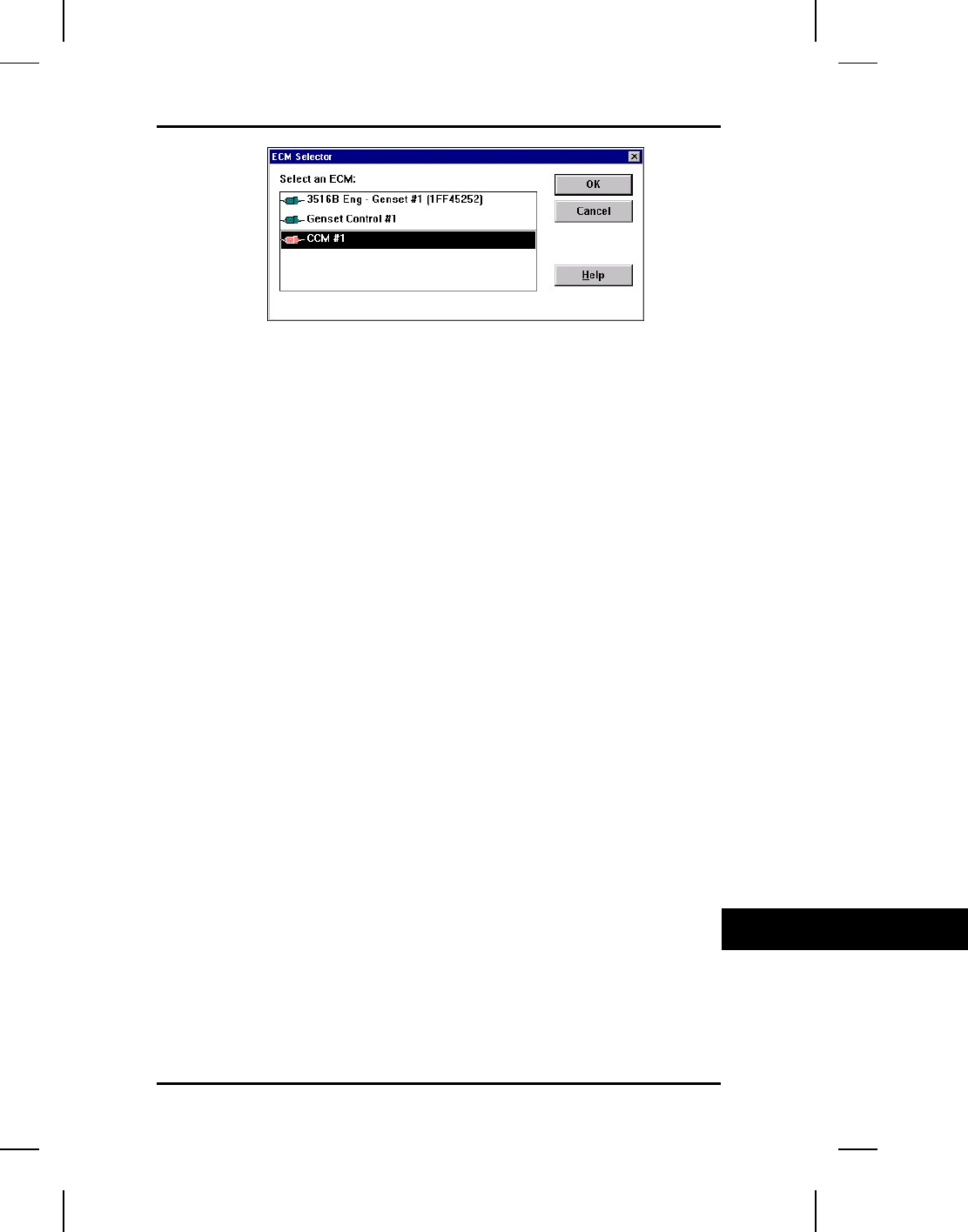

Illustration 12-5: ECM Selector dialog box
Step 2 Select the CCM ECM and press “OK.”
Press “Cancel” to exit the ECM Selector dialog box. Press
“Help” to open online help for assistance.
Step 3 Select CCM Configuration from the Utilities menu. The
CCM Configuration screen displays.
Screen Layout
The CCM Configuration screen has the following areas:
Display Area
The CCM Configuration display area has two columns: Description
and Value. The Description column gives a brief description of the
parameters that are set to configure. The Value column displays the
status of the current parameter.
Pushbuttons
The following two pushbuttons are available in the CCM
Configuration screen:
•= Change
•= Print
Note: See “Printing a Document” section 6.
