not want to save the changes. You will return to the
Select Group dialog box.
Note: Press the “Save As” pushbutton if you decide to save the
current group’s changes to another group name.
Perform the following steps to delete a group:
Step 1 Press the “Groups…” pushbutton. The Select Group
dialog box displays.
Step 2 Select a group from the Select a group list box and press
“Delete.” The “Are you sure...” message box displays.
Note: The temporary group or groups that are already set in the
Select a group dialog box as default cannot be deleted.

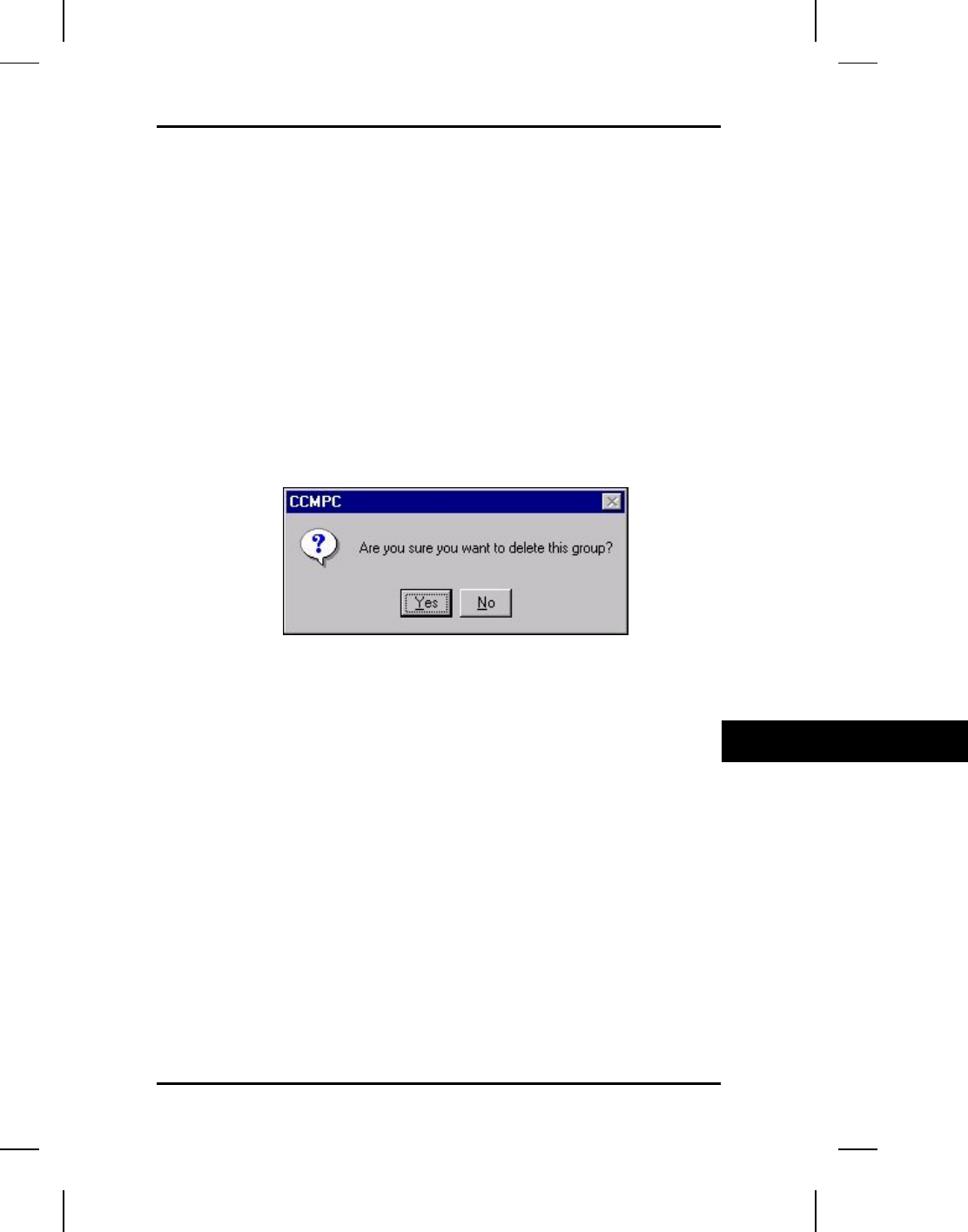

Illustration 9-7: “Are you sure…” message box
Step 3 Press ”Yes” if you want to delete the group or “No” if you
do not want to delete the group. You will return to the
Select Group dialog box.
To leave a screen at any time:
Press “Cancel” if you do not want to make any changes. You will
return to the “Status” screen.
