Caterpillar Customer Communication Module PC Page 84

Getting Started
11-2
Pushbuttons
The following pushbuttons are available in the Control screen:
•= Cancel
•= Connect
•= Add…
•= Edit…
•= Delete
•= Detail>>
Using Phone Book
To add a new site to the phone book:
Step 1 Press the “Add…” pushbutton on the Phone Book dialog
box. The Add Site dialog box displays.

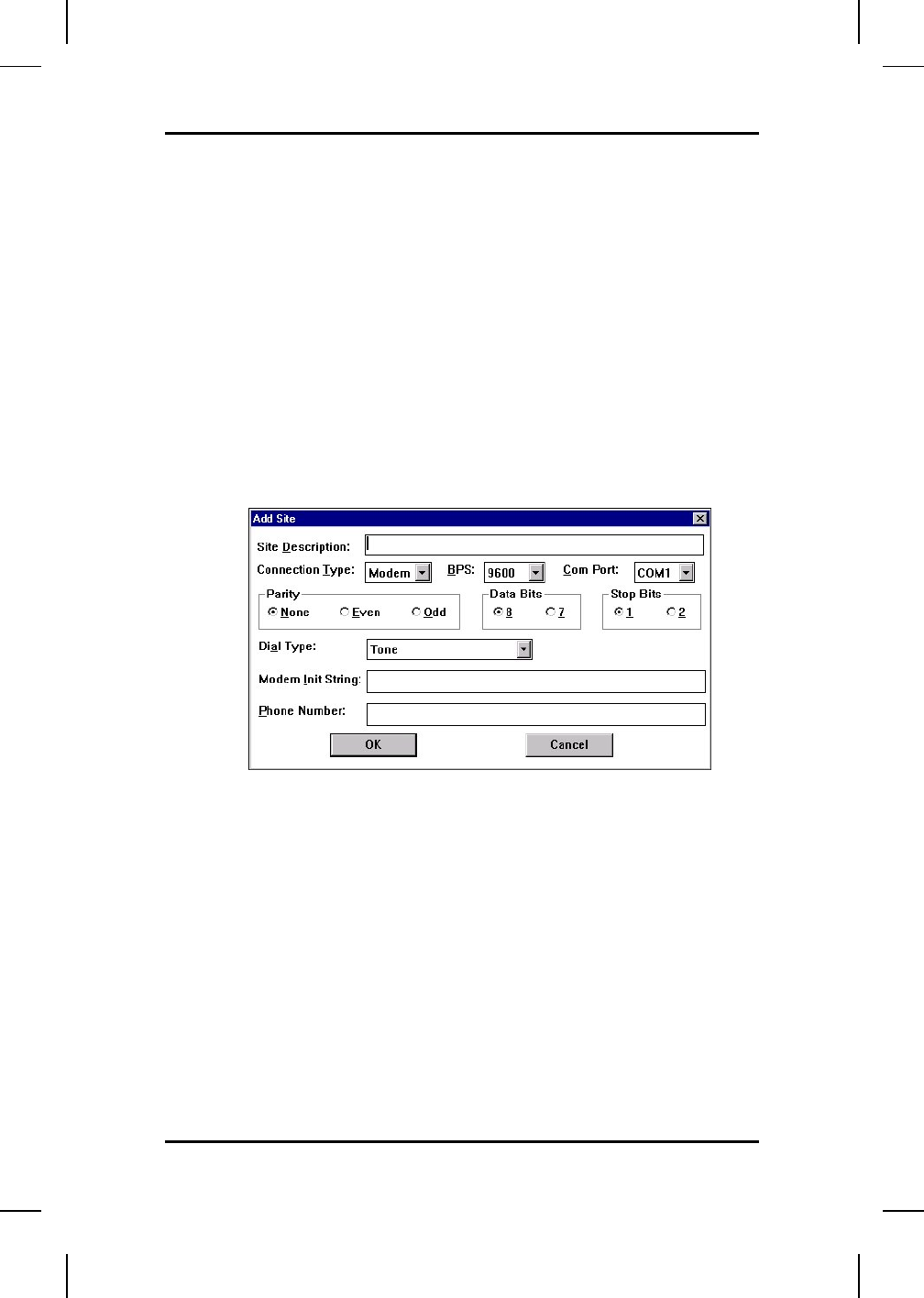

Illustration 11-2: Add Site dialog box
Step 2 Enter (up to 50 characters) a description in the Site
Description text box.
Step 3 Select either Direct or Modem in the Connection Type
drop-down list. The Direct connection allows Cat CCM
PC to connect to the CCM directly through a serial port.
The Modem connection allows Cat CCM PC to connect
to the CCM through a modem.
Note: When Direct is selected the Dial Type, Modem Init String, and
Phone Number text boxes are disabled.
