Caterpillar Customer Communication Module PC Page 96

Getting Started
12-8

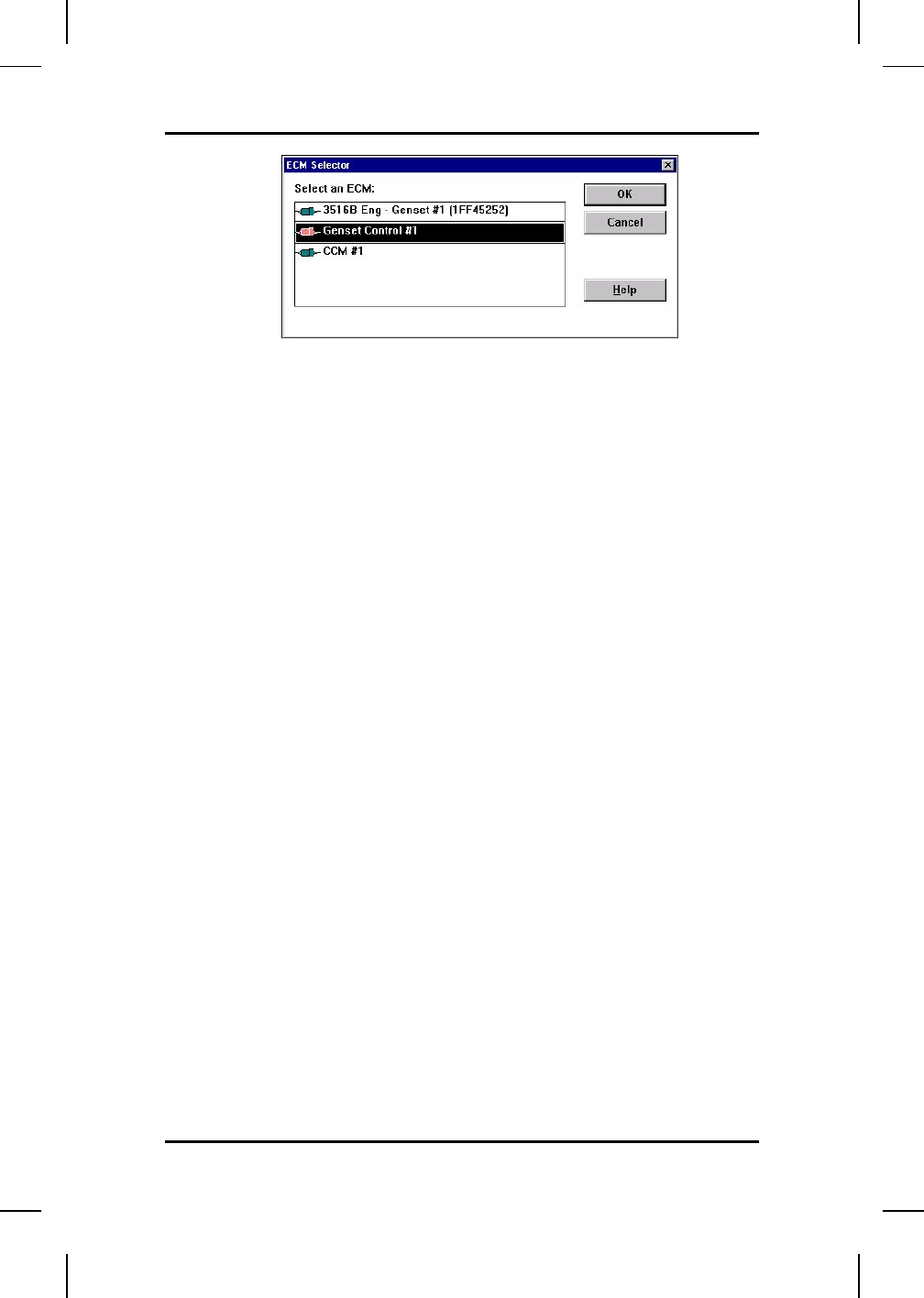

Illustration 12-8: ECM Selector dialog box
Step 2 Select the Genset Control ECM and press “OK.”
Press “Cancel” to exit the ECM Selector dialog box. Press
“Help” to open online help for assistance.
Step 3 Select Phase Selector from the Utilities menu. The
Phase Selector screen displays.
Screen Layout
The Phase Selector screen has the following areas:
Display Area
The Phase Selector display area has two columns: ECM and Phase.
The ECM column lists the Genset Controls supported by Phase
change. The Phase column displays the supported Genset Control
current phase.
Pushbuttons
The following two pushbuttons are available in the CCM
Configuration screen:
•= Change
•= Print
Note: See “Printing a Document” section 6.
Previous page
Next page
