Caterpillar Customer Communication Module PC Page 97

Getting Started
12-9
Section
12
Changing the Phase of the Genset Control

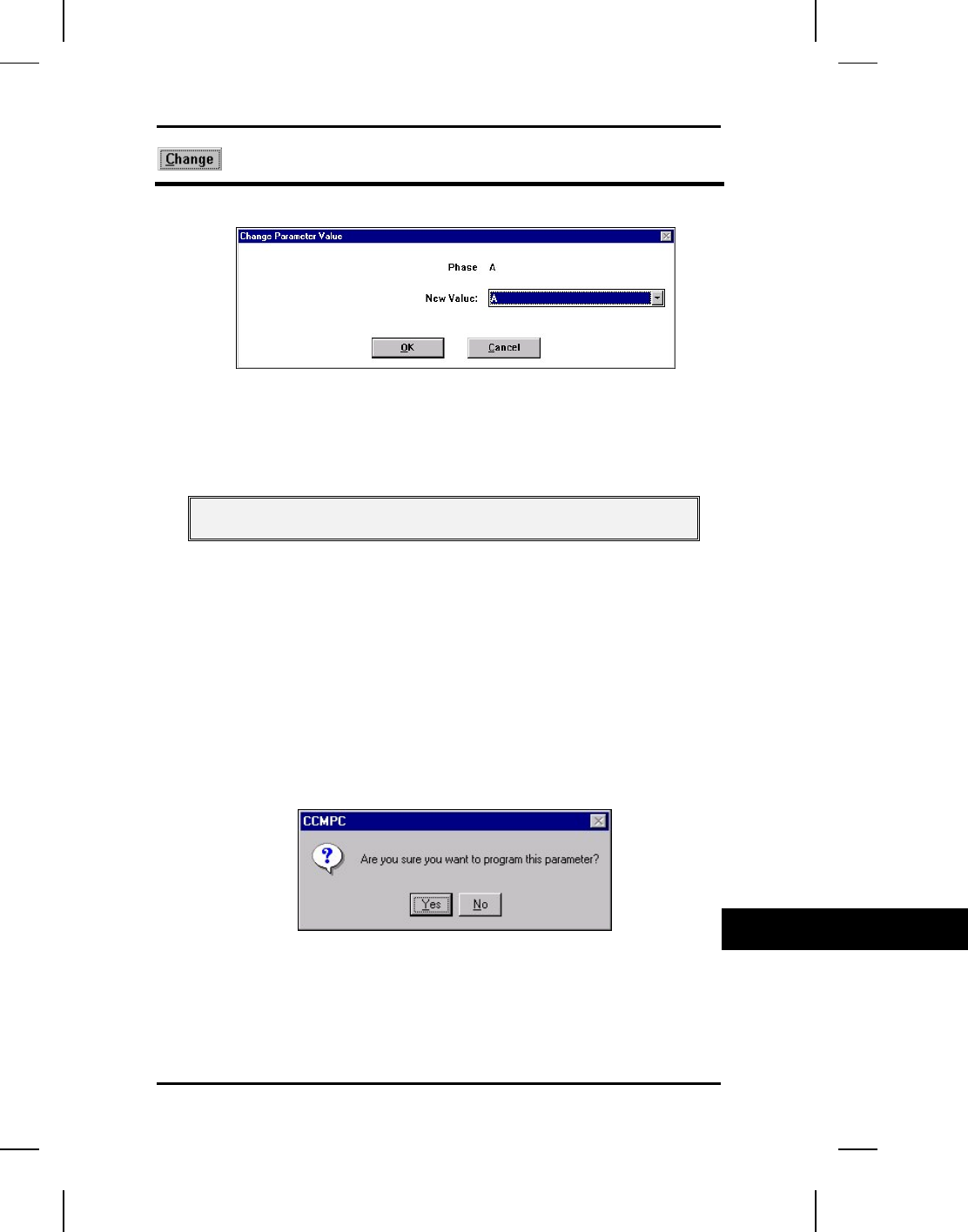

Illustration 12-9: Change Parameter Value dialog box
Purpose
The “Change” pushbutton allows you to change the phase of the
Genset Control.
Do not change the Phase while the Data Logger is running.
Changing the Phase results in stopping the Data Logger.
Instructions
To change the phase:
Step 1 Select the Genset Control you want to change and press
the “Change” pushbutton. The Change Parameter Value
dialog box displays.
Step 2 Select the New Value from the drop-down list.
Step 3 Press “OK” to accept the new value. The “Are you
sure...” message box displays.
Illustration 12-10: “Are you sure…” message box
Step 4 Press “Yes” if you want to change the phase or “No” if
you do not want to change the phase.
