Caterpillar Customer Communication Module PC Page 94

Getting Started
12-6
Changing CCM Configuration Parameter Values

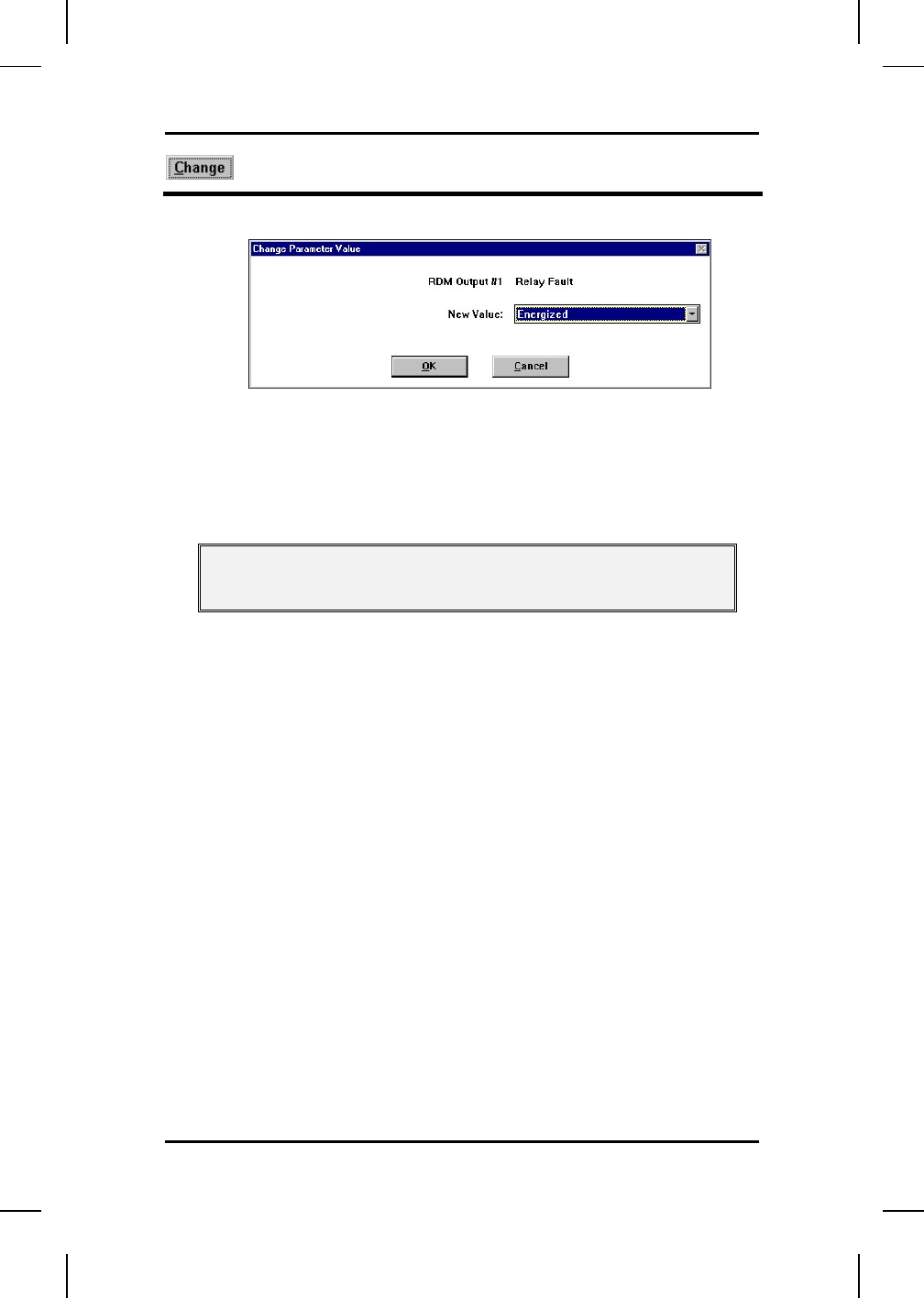

Illustration 12-6: Change Parameter Value dialog box
Purpose
The “Change” pushbutton allows you to change the CCM
configuration parameter values. This pushbutton is enabled when a
parameter’s configuration can be changed.
WARNING! You must remember your CCM Security Level 3
password. If you forget your password, you must replace your
CCM.
Instructions
Perform the following steps to change the selected parameter:
Step 1 Select the parameter you want to change and press the
“Change” pushbutton. The Change Parameter Value
dialog box displays.
Step 2 Depending on the parameter you select to change, enter
the new value in the New Value text box or select the
New Value from the drop-down list.
Step 3 Press “OK” to accept the new value. The “Are you
sure...” message box displays. Press “Yes” if you want to
change this parameter, or press “No” if you do not want
to change the parameter.
Press “Cancel” to exit the dialog box without saving the
new value. You will return to the CCM Configuration
screen.
