CAT 72H Pipelayer Operation and Maintenance Manual Page 108

Operation and Maintenance Manual
108
Operation Section (D6T LGP (OEM)) WEBM1000
Towing Information
142

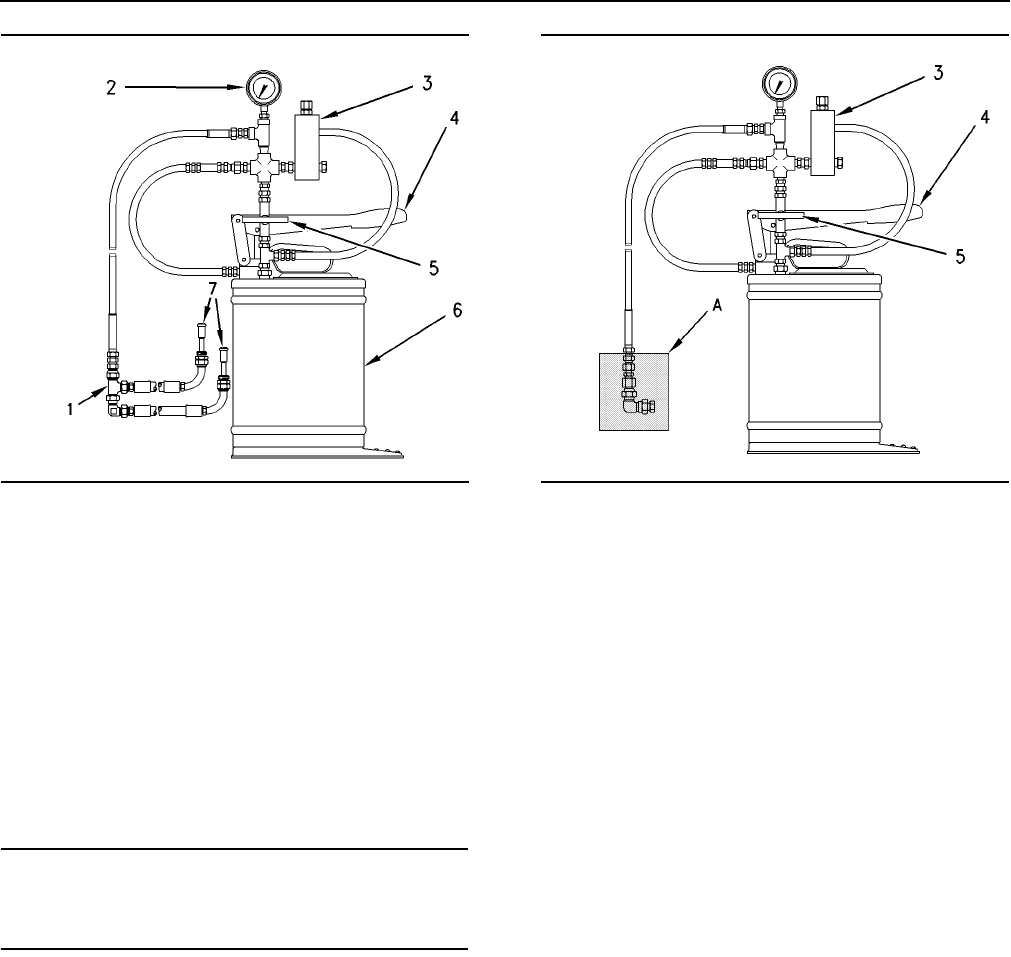

Illustration 142
(1) FT1973 Adapter Gp
(2) 8T-0855 Pressure Gauge
(3) 8T-0477 Relief Valve
(4) Handle
(5) 6V-5016 Ball Valve
(6) FT1845 Brake Release Pump
(7) 123-0525 Brake Release Adapter
(Not shown) 5P-2909 Plug
The machine brakes can be released for towing.
Use FT1973 Adapter Gp (1), two 123-0525 Adapters
(7), and FT1845 Brake Release Pump (6).
Relief Valve Setting
NOTICE
Possible brake piston seal damage could result
without chec
king relief valve. Opening pressure must
be checked and adjusted before connection is made.
143
Illustration 143
1. The main pressure hose connects to 9J-6190
Adapter Union, 04-6683 Nipple, 5P-8018
Adapter Union, 8M-0547 Elbow, and 5P-2909
Plug. Plug the pressure hose at the connection
with a 5P-2909 Plug. The components are
indicated by shaded area (A).
2. T
urn the handle of bypass valve (5) to the closed
position.
3. While
you are pumping handle (4), observe the
opening pr
essure of relief valve (3).
4. Adjust the opening pressure of the relief valve.
Set the pressur
e to 3030 70 kPa (440 10 psi).
5. Turn the handle on bypass valve (5) to the open
positio
n in order to relieve the pressure in the
pump and in the hose.
