CAT 72H Pipelayer Operation and Maintenance Manual Page 72

Operation and Maintenance Manual
72
Operation Section (D6T LGP (OEM)) WEBM1000
Machine Operation
92

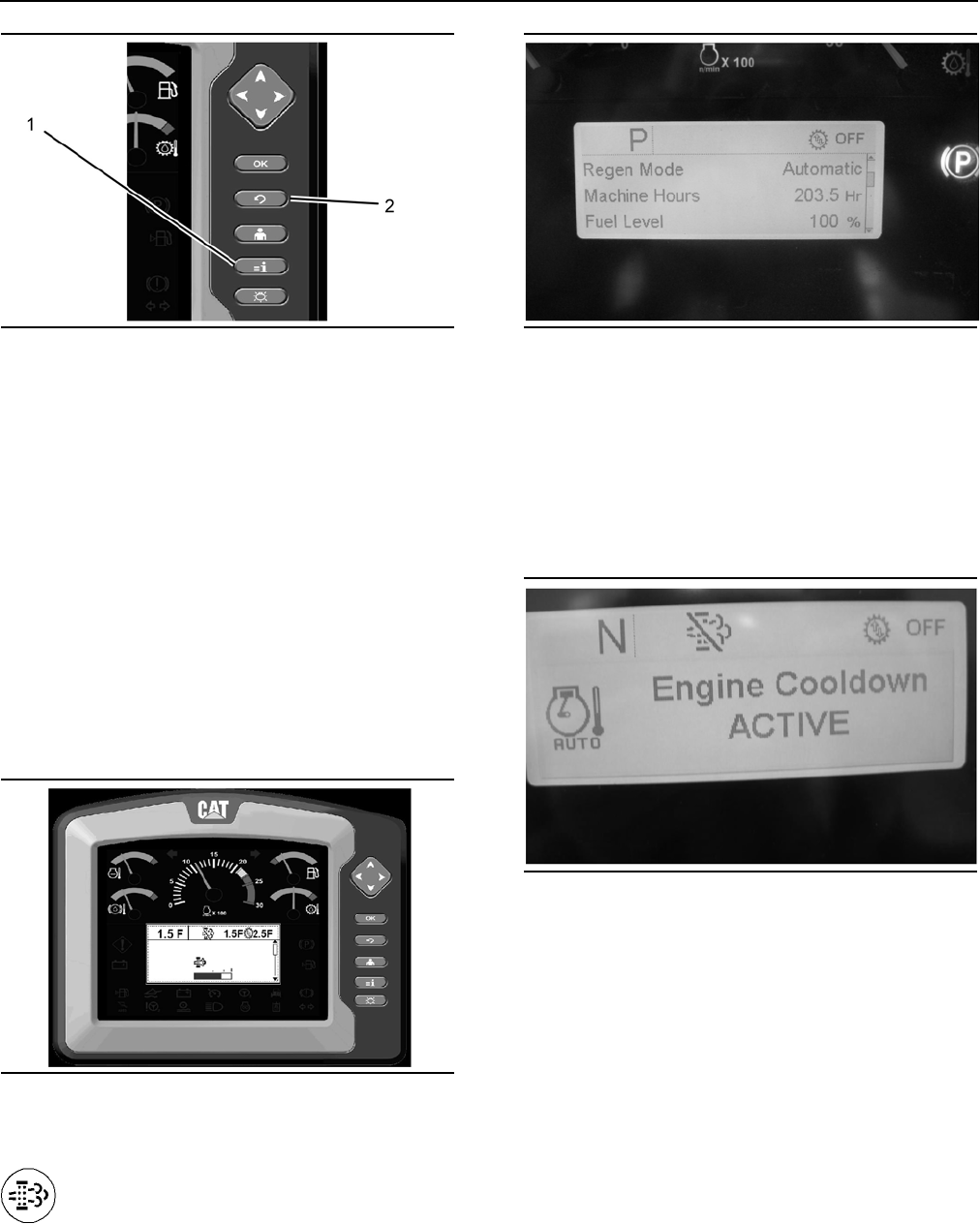

Illustration 92
Note: The “Main Menu” can be displayed from any
screen by pressing Main button (1).
Press back button (2) the required number of times
in order to
return to the “Performance” screen.
Service Hour Meter – This display indicates the
to
tal operating hours of the engine. Use the display
in order to determine the service hour maintenance
intervals.
Engine Monitoring Mode
The monitoring system display interfaces with the
engine ECM. Also, this interaction displays the
emissions data of the present engine operating
state. The information about the engine
aftertreatment system is displayed.
93
Illustration 93
“Performance 1of 5”
Soot level ( DPF filter) – The soot level of
the aftertreatment regeneration device (
ARD) displays the level of active soot
.
94
Illustration 94
The aftertreatment regeneration device system is set
to the automatic regeneration mode.
Reference: See Oper
ation and Maintenance
Manual, “Diesel Particulate Filter Regeneration” for
additional information on aftertreatment
regeneration.
Delayed Engine Shut Down
95
Illustration 95
This message display alerts the operator that an
engine cooldown is active. The engine key start
switch is in the OFF position.
