CAT 72H Pipelayer Operation and Maintenance Manual Page 74

Operation and Maintenance Manual
74
Operation Section (D6T LGP (OEM)) WEBM1000
Machine Operation
operator profile.
Back button (F) – Th
is button is used to return to the
pre
vious screen.
Navigate to operator menu (G) – Th
is button is used
to re
turn to the operator menu.
Return to main menu (H) – Th
is button is used to
retur
n to the main menu.
Use the arrow buttons to highlight the desired
selection in or
der to navigate through the menus and
submenus. Then press the OK button. Also, use the
arrow buttons to highlight a mode or parameter
setting. Then, press the OK button in order to select
that option.
Note: Whe
n the diagnost
ic message is
acknowledged, a predetermined length of time
passes before the message screen will appear on
the monitoring system display again. This interval is
dependent upon the severity of the warning level.
Consult the appropriate warning category for the
proper instruction.
After all screens with warning messages are
a
cknowledged,
the first performance monitor screen
will appear. This screen is the default screen.
Machine Start-up
Upon starting the machine (key ON), the Monitoring
System will perform a self test. The first preliminary
screen asks the operator to select a name from the
saved profiles. Press the OK button, in a timely
manner in order to use the active set of customer
preferences. If no setting is accepted as “OK” or if
“Default” is selected, then the ECM default settings
will remain.
Main Menu
As many as five items are available for setup.
98

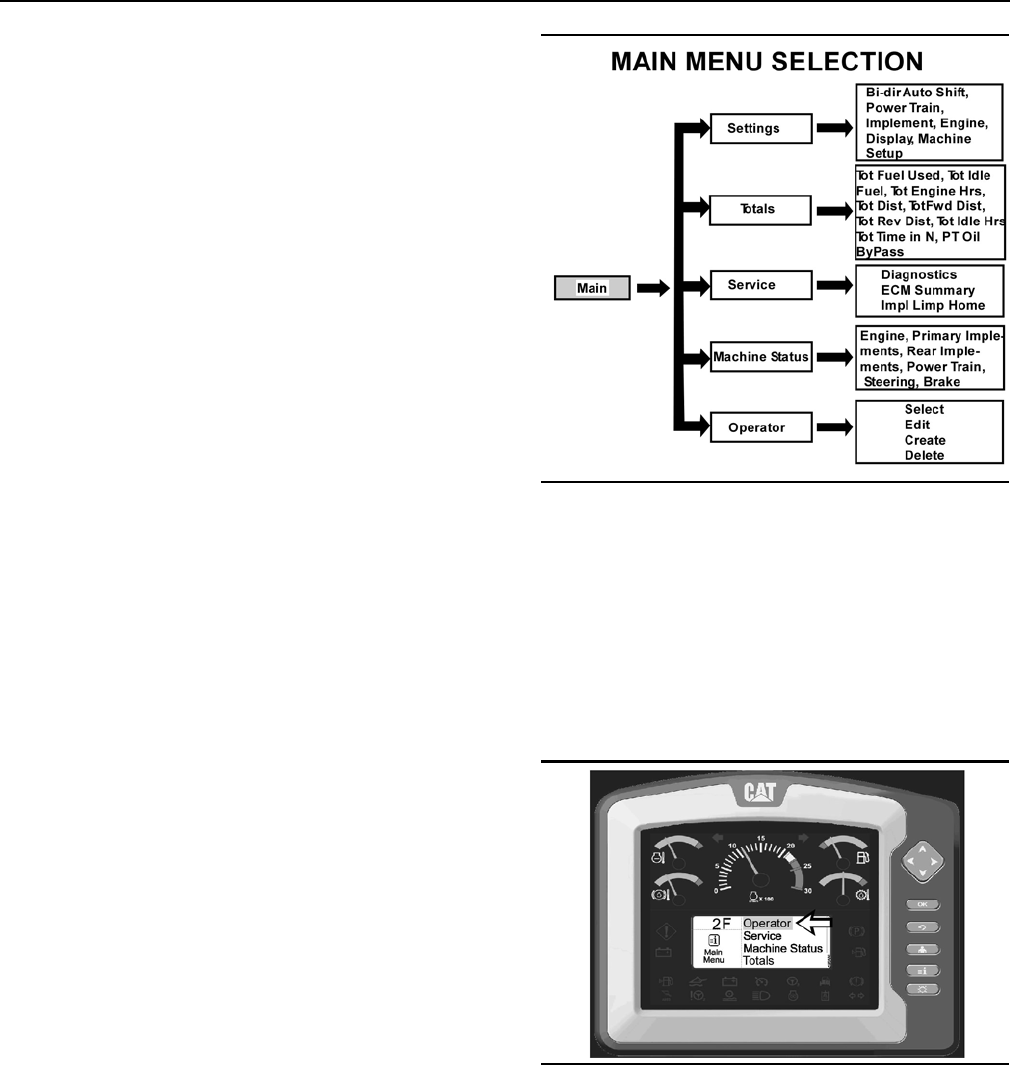

Illustration 98
Menu for the Operator Profile
Access the Operator Profile (menu) by pressing the
button for the operator menu. Also, you may
navigate to the Operator Profile (menu) by pressing
the following buttons: Menu button, Operator.
Operator Profile
99
Illustration 99
The “Operator Profile” menu option is entered by
selecting “Operator” from the “Main” menu. Press
the up arrow button or the down arrow button until
“Operator” is highlighted. Then press the “OK”
button.
Note: Th
e “Main Menu” can be displayed from any
screen
by pressing the Main Menu button.
The following explains the usage of each menu
option.
