CAT 72H Pipelayer Operation and Maintenance Manual Page 88

Operation and Maintenance Manual
88
Operation Section (D6T LGP (OEM)) WEBM1000
Machine Operation
De-rate – Some machines can have the machine
engine de-rated remotely by the owner of the
machine. The action causes the machine to operate
much slower than normal.
A warning is given before this action occurs on the
displa
y with the mac
hine lock icon and “Security
Pending”. When engine de-rate has happened, the
machine display shows the machine lock icon and
“Security Enabled”. The operator should move the
machine to a safe location, apply the parking brake,
power the machine down, notify the site supervisor,
and contact your local Caterpillar dealer.
Disable – S
ome machines can be prevented from
startin
g remotely by the owner of the machine. When
disabling has happened, the machine display shows
the machine lock icon and “Security Enabled”. The
operator should notify the site supervisor.
Tampering – T
ampering with the Product Link
system
to disable the Product Link can also result in
engine de-rating or disabling of the machine. To
avoid de-rating or disabling, prevent tampering with
the Product Link . If, machine diagnostics occur due
to Product Link notify your site supervisor
immediately to prevent derating or disabling. An
example of this situation is an antenna becoming
damaged.
Regulatory Compliance
123

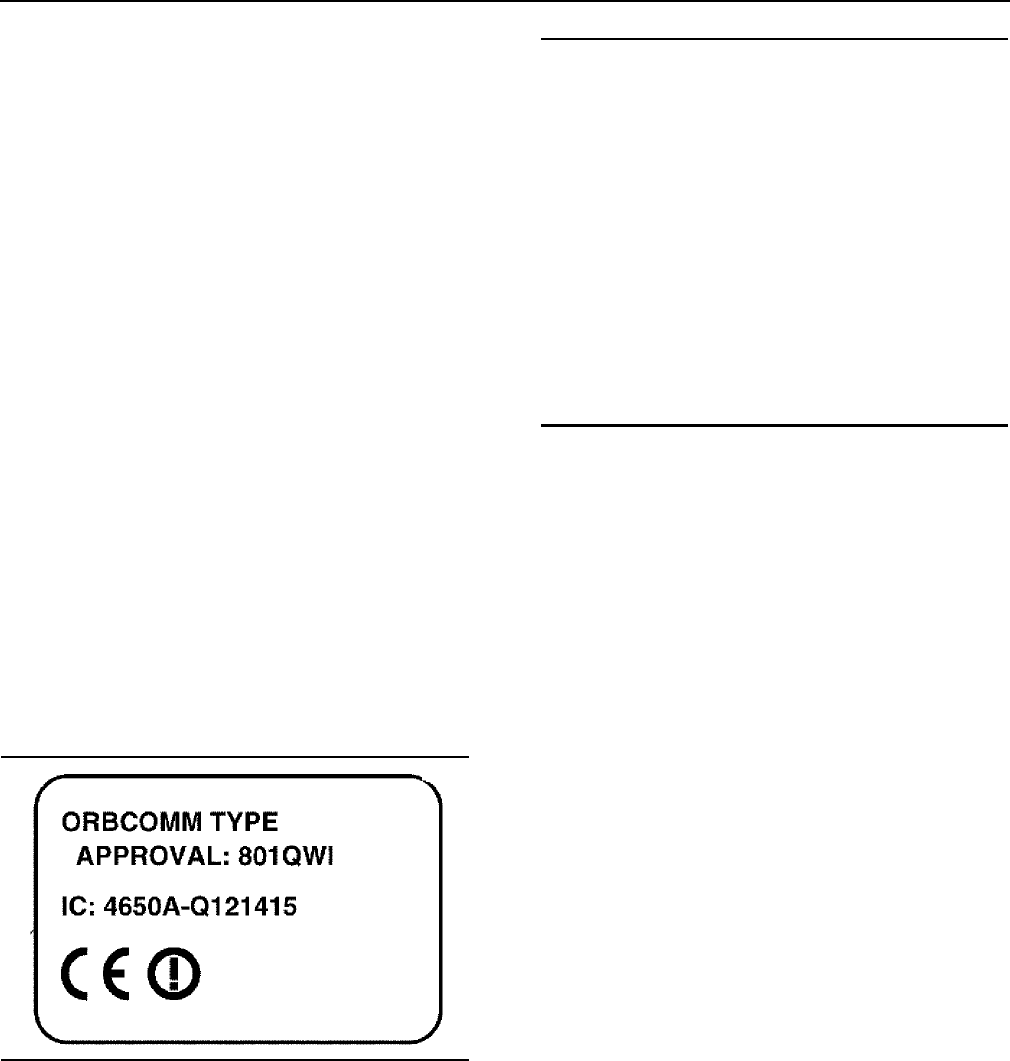

Illustration 123
NOTICE
Transmission of information using Product Link is
subject to
legal requirements that may vary from
location to location, including, but not limited to, radio
frequency use authorization. The use of Product
Link must be limited to those locations where all
legal requirements for the use of the Product Link
communication network have been satisfied.
In the event that a machine outfitted with Product
Lin
k is lo
cated in or relocated to a location where (i)
legal requirements are not satisfied or (ii) transmitting
or processing of such information across multiple
locations would not be legal, Caterpillar disclaims
any liability related to such failure to comply and
Caterpillar may discontinue the transmission of
information from that machine.
Consult your Cat dealer with any questions that
concern the operation of the Product Link in a
specific country.
