CAT 72H Pipelayer Operation and Maintenance Manual Page 34

Operation and Maintenance Manual
34
Product Information Section (D6T LGP (OEM)) WEBM1000
General Information
Product Information
Section (D6T LGP (OEM))
General Information
Specifications
24

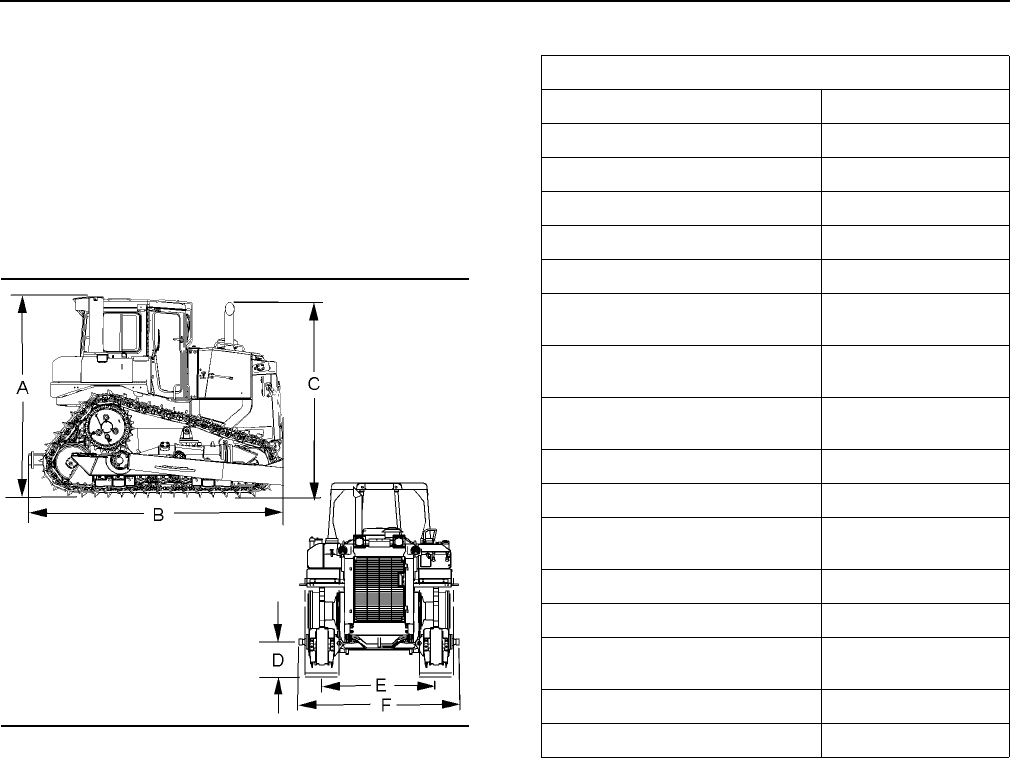

Illustration 24
The basic machine specifications are listed below.
Table 4
D6T Track-Type Tractor
LGP
Engine Power 200 hp std
Engine (Make and Model) Caterpillar C9.3
Engine Displacement 9.3 L (567 in
3
)
Engine Rated Speed 2010 RPM
(1)
(1) NACD Engine Rated Speed (North America)
(2)
(2) Non-NACD Engine Rated Speed is 1920 RPM
Engine (No. of Cylinders) 6
Height (Top of ROPS) (A)
3233 mm (127.3
inch)
Length of the Machine
(3)
(3) The length of the machine is measured from the front of the
machine to the end of the drawbar. Add 145 mm (5.7 inch) for long
drawbar assembly.
(B)
4089 mm (161.0
inch)
Height to Top of Exhaust
Stack(C)
3193 mm
(125.7
inch)
Ground Clearance (D) 396 mm (15.6 inch)
Track Gauge (E) 2286 mm (90.0 inch)
Width Over Trunnions (F)
(4)
(4) VPAT trunnions are attached at the case and frame.
3479 mm (137.0
inch)
Height of the Drawbar 511 mm (20.1 inch)
Width of Track Shoe 660 mm (26 inch)
Length of Track on Ground
3243 mm (127.7
inch)
Shipping Weight
(5)
(5) The weight includes the machine and the following items: 10%
tank of fuel, all lubricants, coolant, hydraulic controls, the rops/fops
structure and and the standard track.
19527 kg (43050 lb)
Drawbar (Length) 165 mm (6.5 inch)
Restrictions to Application and
Configuration
Maximum approved operating weight is 29484 kg
(65000 lb).
Maximum towing force of a drawbar is 320 kN
(71940 lb).
Ma
ximum vertical load for a drawbar is 137 kN
(30800 lb).
Th
e capability of the brake is equal to the ROPS
capability of 29484 kg (65000 lb) when the slope is
less than 45
degrees.
