CAT 72H Pipelayer Operation and Maintenance Manual Page 7

Operation and Maintenance Manual
7
WEBM1000 Safety Section (D6T LGP (OEM))
Safety Messages
3

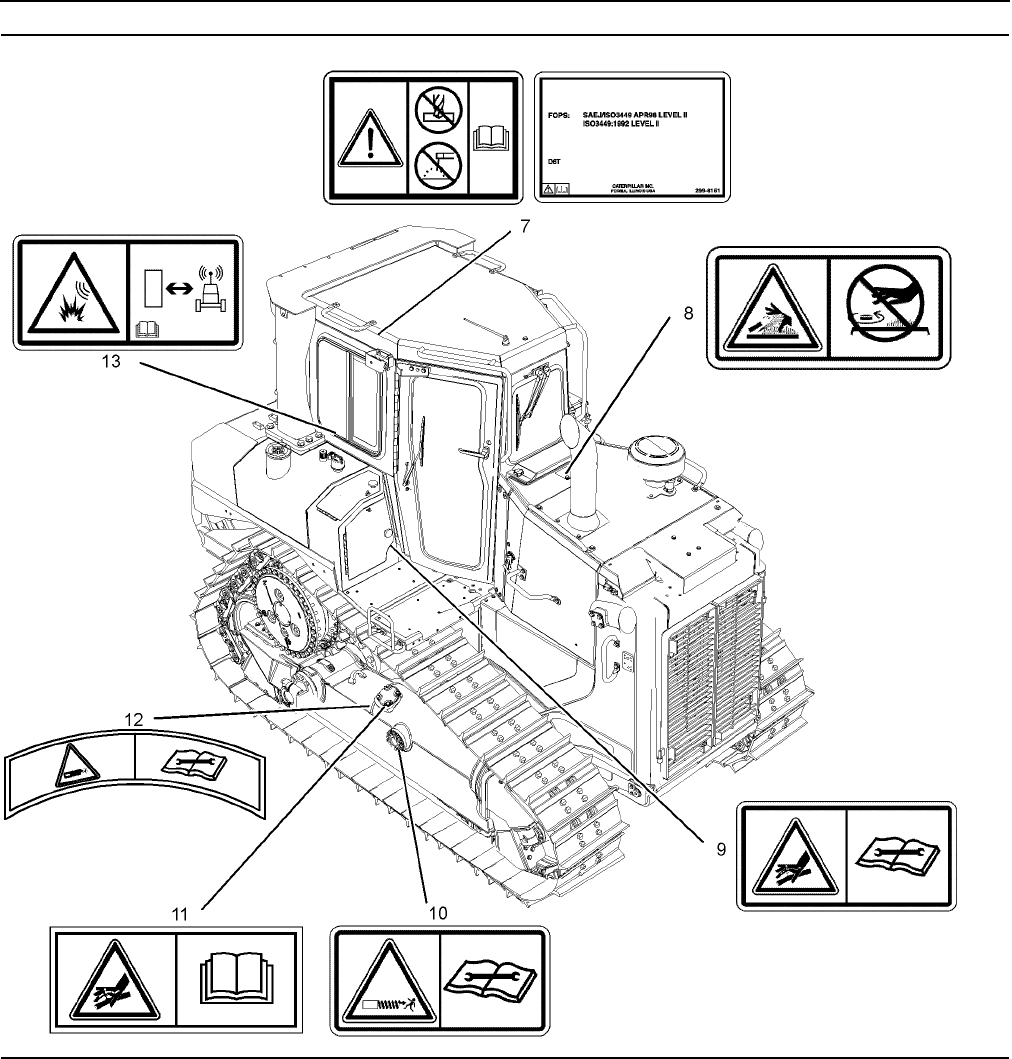

Illustration 3
There are several specific safety messages on this
machine. The exact location of the hazards and the
description of the hazards are reviewed in this
section. Become familiarized with all safety
messages.
Make sure that all of th
e safety messages are
legible. Clean the safety messages or replace the
safety messages if you cannot read the words.
Replace the illustrations if the illustrations are not
visible. When you clean the safety messages, use a
cloth, water, and soap. Do not use solvent, gasoline,
or other harsh chemicals to clean the safety
messages. Solvents, gasoline, or harsh chemicals
could loosen the adhesive that secures the safety
message. Loose adhesive will allow the safety
message to fall.
