CAT 72H Pipelayer Operation and Maintenance Manual Page 83

Operation and Maintenance Manual
83
WEBM1000 Operation Section (D6T LGP (OEM))
Machine Operation
119
Illustration 119
120
Illustration 120
Electrical Connector Location
121
Illustration 121

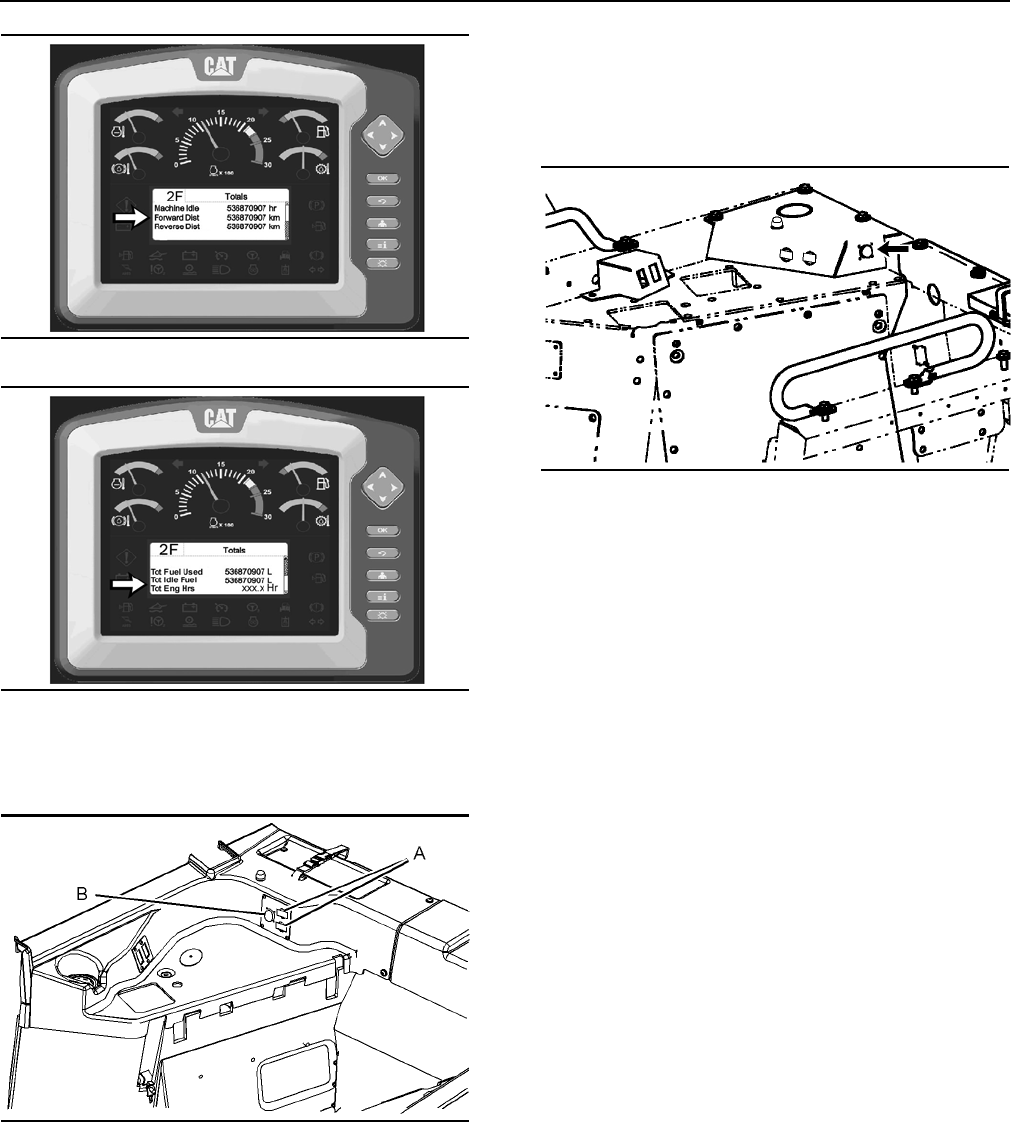

Location of electrical connectors for the D6T Track-Type Tractor
(tier iv) equipped with a cab
(A) Two connectors are 12 V power outlets.
These power outlets are located behind the operator
seat on the
right side of the compartment.
Data link connector (B) is located near the power
out
lets,
as shown. This data link connector is for use
with the Caterpillar Electronic Technician (ET). Also,
this connector is used for the flash programming of
software.
122
Illustration 122
Location of data link on OROPS machine, if equipped
Refer to Service Manual, SENR8367 “Electrical
Component And Connector Locations” for additional
information about these service tools.
Note: Th
e engine start switch must be in the ON
position
in order for the electrical connectors to be
activated.
Reporting a Problem
Report all of the information about problems to your
Caterpillar dealer. Report all of the service code
information and indicate if the codes are active or
logged. Report an action indicator that lights but
does not create a service code. Report if an action
lamp is flashing or the action alarm is sounding.
Your Caterpillar dealer can r
emove
the service
codes.
Consult your Caterpillar dealer for more infor
mation.
Refer to Special Instruction, REHS0126 “Caterpillar
Electron
ic Controls”.
Listing of Abbreviations and Terms
The Monitoring System Display uses abbreviations
when the display area shows the information inputs.
The following tables describe the abbreviation with
the full term.
