Safety Section (D6T LGP (OEM)) WEBM1000
Safety Messages

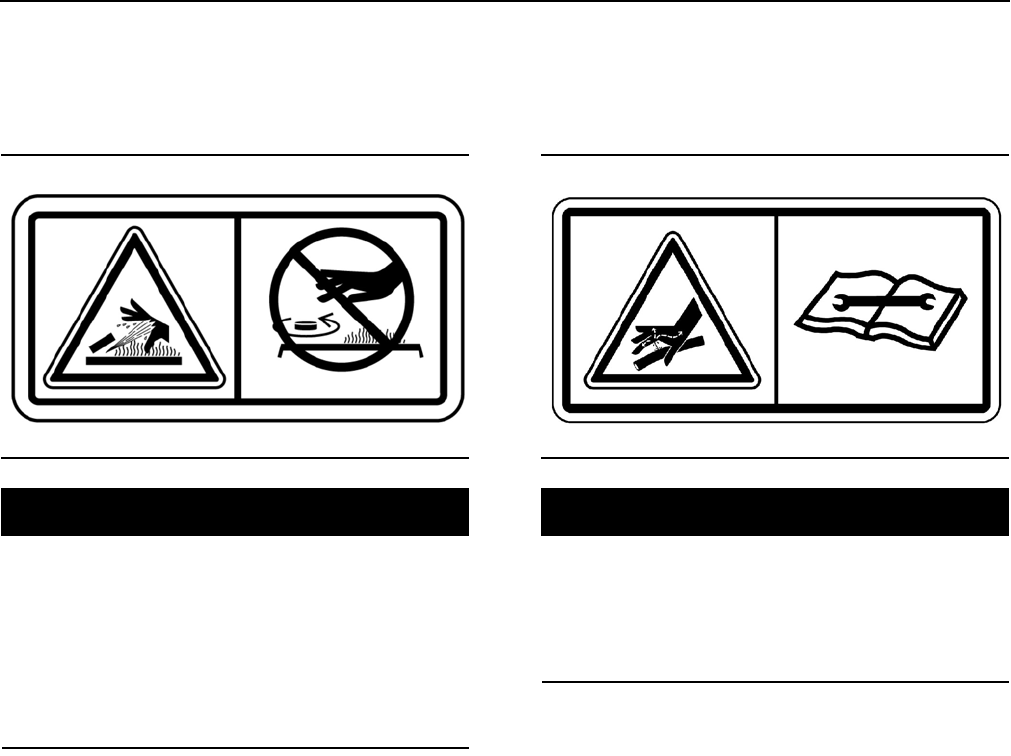

Hot Fluid Under Pressure (8)
Safety message (8) is located on the bottom side of
the radiator access cover.
m
WARNING
Pressurized system! Hot coolant can cause
serious burns, injury or death. To open the
cooling system filler cap, stop the engine and
wait until the cooling system components are
cool. Loosen the cooling system pressure cap
slowly in order to relieve the pressure. Read and
understand the Operation and Maintenance
Manual before performing any cooling system
maintenance.
Hydraulic System Accumulator (9)
Safety message (9) is located inside the enclosure
on the right-hand platform.
m
WARNING
Hydraulic accumulator contains gas and oil
under high pressure. Improper removal or repair
procedures could cause severe injury. To remove
or repair, instructions in the service manual must
be followed. Special equipment is required for
testing and charging.
