CAT 72H Pipelayer Operation and Maintenance Manual Page 49

Operation and Maintenance Manual
49
WEBM1000 Operation Section (D6T LGP (OEM))
Machine Operation

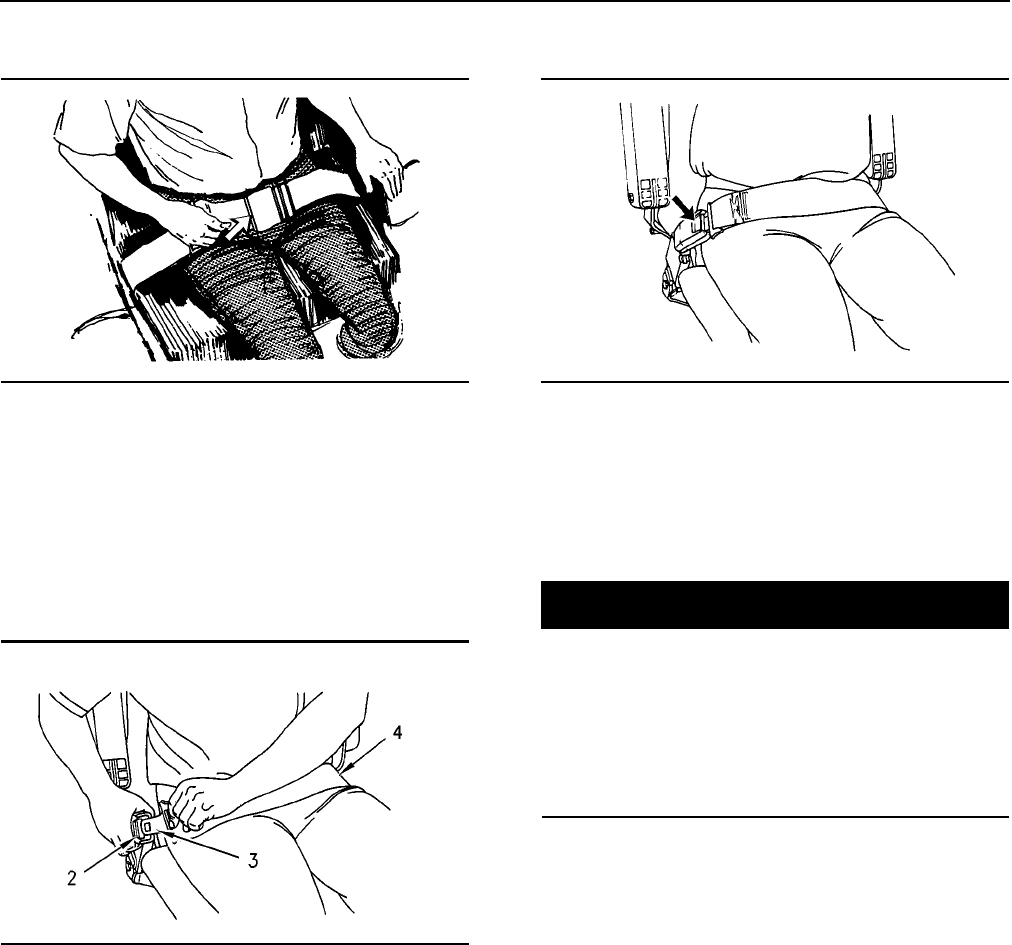

Releasing The Seat Belt
54
Illustration 54
Pull up on the release lever. This will release the seat
belt.
Seat Belt Adjustment for
Retractable Seat Belts
Fastening The Seat Belt
55
Illustration 55
Pull seat belt (4) out of the retractor in a continuous
motion.
Fasten seat belt catch (3) into buckle (2). Make sure
that the se
at belt is placed low across the lap of the
operator.
The retractor will adjust the belt length
and the
retractor will
lock in place. The comfort ride sleeve
will allow the operator to have limited movement.
Releasing The Seat Belt
56
Illustration 56
Push the release button on the buckle in order to
release the seat belt. The seat belt will automatically
retract into the retractor.
Extension of the Seat Belt
m
WARNING
When using retractable seat belts, do not use
seat belt extensions, or personal injury or death
can result.
The retractor system may or may not lock up
depending on the length of the extension and the
size of the person. If the retractor does not lock
up, the seat belt will not retain the person.
Longer, non-retractable seat belts and extensions for
the non-retractable seat belts are available.
Caterpillar requires only non-retractable seat belts to
be used
with a seat belt extension.
Consult your Cat dealer for longer seat belts and for
inform
ation on extending the seat belts.
