CAT 72H Pipelayer Operation and Maintenance Manual Page 43

Operation and Maintenance Manual
43
WEBM1000 Operation Section (D6T LGP (OEM))
Before Operation
Delayed Lighting Mode
Enable this function by leaving the Forwa
rd ROPS
lights in the ON position before turning the machine
keyswitch to the OFF position. The lights will remain
ON for a configured amount of time (10 minute
default). Use the access lighting switch to turn OFF
the lights, if necessary.
Daily Inspection
For maximum service life of the machine, perform a
thorough walk-around inspection before you mount
the machine and before you start the engine.
Inspect the area around the machine and under the
mac
hine.
Look for loose bolts, trash buildup, oil
leaks, coolant leaks, broken parts, or worn parts.
Inspect the tracks, track roller frames, idlers, and
r
ollers
for oil leaks, and excessive wear.
Do not operate the machine until all necessary
repairs have been made.
Note
: Watch closely for leaks. If you observe a leak,
find t
he source of the leak and correct the leak. If
you suspect a leak or if you observe a leak, check
the fluid levels more frequently.
Inspect the condition of the work tool and of the
hydr
aulic compone
nts. Sound the horn.
Check all oil levels, coolant levels,
and fuel levels.
Daily, perform all of the procedures that are
applicable to yo
ur machine:
• Operation and Maintenance Manual, “Backup
Alarm - Test
”
• Operation and Maintenance Manual, “Brakes,
Indicato
rs, and Gauges - Test”
• Operation and Maintenance Manual, “Cooling
System
Coolant Level - Check”
• Operation and Maintenance Manual, “Engine Air
Precleaner -
Clean”
• Operation and Maintenance Manual, “Engine Oil
Level -
Check”
• Operation and Maintenance Manual, “Fuel System
Water Sepa
rator - Drain”
• Operation and Maintenance Manual, “Hydraulic
System
Oil Level - Check”
• Operation and Maintenance Manual, “Seat Belt -
Inspec
t”
• Operation and Maintenance Manual,
“Transmission
System Oil Level - Check”
• Operation and Maintenance Manual, “Winch Oil
Level - Check”
Tool Storage Area
37
Illustration 37

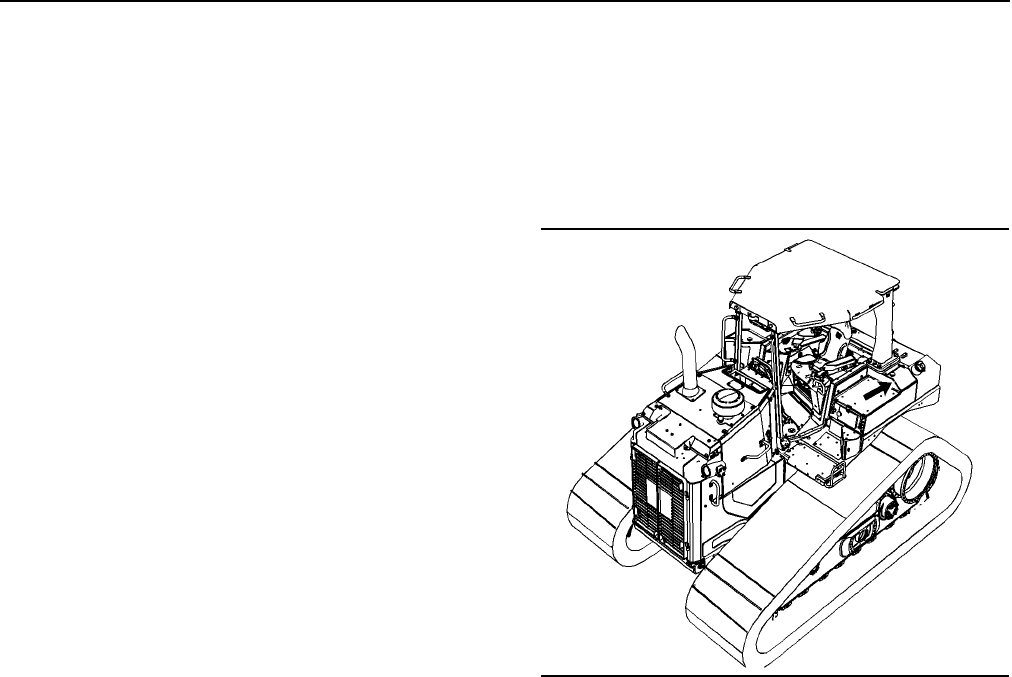

The tool storage area is located above the left
fender. The storage box is directly in front of the fuel
tank filler cap.
